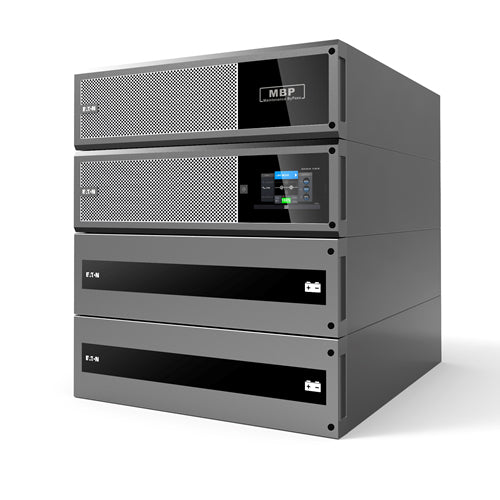

Eaton 9SX (AP) uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W
SAVE 38%

EATON

Eaton 9SX (AP) uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W

Read reviews
SKU: MBP20KPARA
Your price $4,821.56
List price $7,739.59 Save $2,918.03
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

Need bulk pricing for schools or councils? Request a quote via Contact Us.

9SX (AP) 15kVA and 20kVA

Description

The Eaton 9SX (AP) UPS range provide stable power for Critical IT Infrastructure, Industrial, Manufacturing, and Medical devices. The UPS uses advanced technologies to improve on power and dimensional efficiencies, to help with cost savings in both the electricity and space aspects. This range of UPS incorporates robust designs to enhance durability, making it suitable for a wider range of applications.

Specifications

Power
Output frequency 50/60 Hz
Output power capacity 20 kVA
Output power 20000 W
Input operation voltage (min) 100 V
Input operation voltage (max) 300 V
Output operation voltage (min) 220 V
Output operation voltage (max) 240 V
Efficiency 94%
Efficiency (On-line mode) 96%
Efficiency (ECO mode) 98.8%
ECO mode Yes
Input frequency 40/70 Hz
Performance
UPS topology Double-conversion (Online)
Number of output phases 1/3
Number of input phases 1/3
Power protection features Short circuit
Features
Output frequency 50/60 Hz
UPS topology Double-conversion (Online)
Output power capacity 20 kVA
Number of output phases 1/3
Number of input phases 1/3
Output power 20000 W
Input operation voltage (min) 100 V
Input operation voltage (max) 300 V
Output operation voltage (min) 220 V
Output operation voltage (max) 240 V
Efficiency 94%
Power protection features Short circuit
Efficiency (On-line mode) 96%
Efficiency (ECO mode) 98.8%
ECO mode Yes
Input frequency 40/70 Hz
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Battery
Battery recharge time 3 h
Typical backup time at full load 2.4 min
Battery capacity 9 Ah
Design
Rack capacity 3U
Form factor Rackmount/Tower
Product colour Black
Technical details
Output frequency 50/60 Hz
Weight & dimensions
Width 438 mm
Depth 589 mm
Height 129 mm
Weight 23.7 kg
Package weight 27.5 kg
Packaging data
Package weight 27.5 kg
Brand
EATON
SKU
MBP20KPARA
