3000 VA, 2400 W, 8 IEC C13 (10A), 2 IEC C19 (16A) outlets, 86.5 x 440 x 605 mm, 22800 g
Key Features
- Li-Ion batteries for longer life
- On-line double conversion topology, with automatic by-pass and PFC system
- Energy Star UPS (up to 93.5% efficiency in Online mode)
- More real power in watts, Unity power factor (VA=W)
- Flexible RT form factor : convertible Tower / 2U Rack

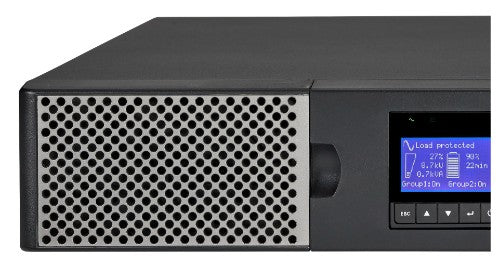

- Easy to operate : next-generation multilingual LCD display
- Manageable outlets groups (2 groups) with Energy metering
- 1 USB port + 1 Serial + 3 dry contacts (optocouplers on DB9)
- 1 Slot for optional com card (Network Management card, ModBus or Contacts/Serial cards)
- Monitoring & shutdown software for VMware, Hyper-V etc
- Long backup time with up to 4 optional EBM cabinets, with automatic detection
Description

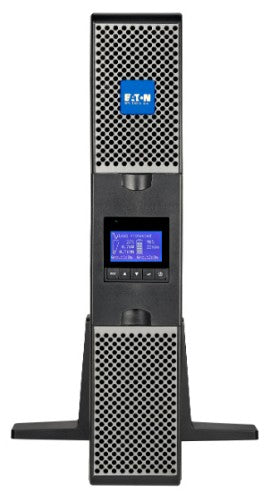

The Eaton 9PX lithium-ion rackmount and tower UPS provides 8 to 10 years of life expectancy for UPS and batteries. The 9PX lithium-ion UPS has power ratings ranging from 1 to 3 kVA, with low and high voltage options and offers up to four optional external battery modules for extra runtime. The 9PX lithium-ion UPS, available in rackmount and tower form, has the same reliable features as the lead-acid UPS, including load segments that allow for prioritized shutdown, remote power on (RPO), remote on/off (ROO) and output relay ports that increase control capabilities.
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power capacity |
3 kVA |
| Output power |
2400 W |
| Input operation voltage (min) |
176 V |
| Input operation voltage (max) |
276 V |
| Output operation voltage (min) |
200 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
296 J |
| Maximum current |
16 A |
| Power factor |
0.99 |
| Output frequency regulation |
1 Hz |
| Crest factor |
3:1 |
| Charging current |
1.7 A |
| Input frequency |
40/70 Hz |
| Performance |
|---|
| UPS topology |
Line-Interactive |
| Number of input phases |
1 |
| Waveform |
Sine |
| Noise level |
47 dB |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output frequency |
50/60 Hz |
| UPS topology |
Line-Interactive |
| Output power capacity |
3 kVA |
| Number of input phases |
1 |
| Output power |
2400 W |
| Input operation voltage (min) |
176 V |
| Input operation voltage (max) |
276 V |
| Output operation voltage (min) |
200 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
296 J |
| Maximum current |
16 A |
| Waveform |
Sine |
| Power factor |
0.99 |
| Output frequency regulation |
1 Hz |
| Crest factor |
3:1 |
| Noise level |
47 dB |
| Audible alarm(s) |
Yes |
| Input frequency |
40/70 Hz |
| Power source type |
AC |
| Detachable power cord |
Yes |
| Charging current |
1.7 A |

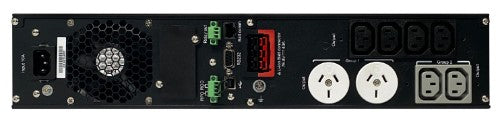

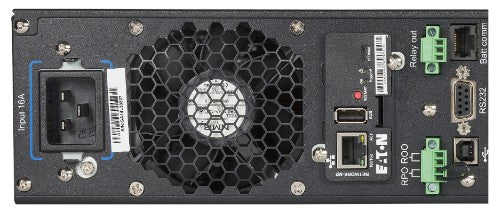

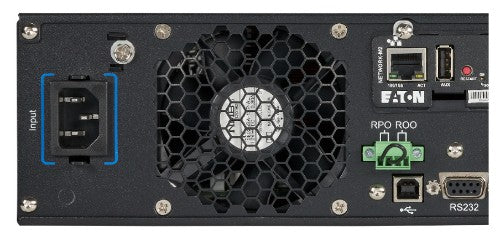

| Ports & interfaces |
|---|
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |
| Cabling technology |
10/100Base-T |
| AC outlets quantity |
10 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
C20 coupler |
| USB 2.0 ports quantity |
1 |
| RS-232 ports |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Battery |
|---|
| Battery life (max) |
8 year(s) |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Hot-swap battery |
Yes |
| Cold start |
Yes |
| Battery voltage |
76.8 V |
| Battery capacity |
9 Ah |
| Charging current |
1.7 A |
| Design |
|---|
| Rack capacity |
2U |
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Certification |
IEC/EN 62040-1, IEC/EN 62040-2 Cat C1, IEC/EN 62040-3, UL 1778, CSA 22.2, CISPR22 Class B, FCC part 15 Class B, CE, CB, EAC |
| Cooling type |
Active |
| Built-in fan |
Yes |
| Control type |
Buttons |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-25 - 55 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 1500 m |
| Non-operating altitude |
1500 - 3000 m |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Certificates |
|---|
| Certification |
IEC/EN 62040-1, IEC/EN 62040-2 Cat C1, IEC/EN 62040-3, UL 1778, CSA 22.2, CISPR22 Class B, FCC part 15 Class B, CE, CB, EAC |
| Cooling |
|---|
| Cooling type |
Active |
| Built-in fan |
Yes |
| Weight & dimensions |
|---|
| Width |
440 mm |
| Depth |
605 mm |
| Height |
86.5 mm |
| Weight |
22.8 kg |
