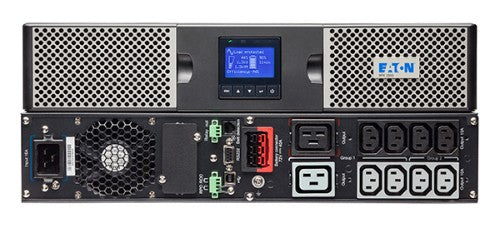

Eaton 9PX 3000VA 2U Rack/Tower 16Amp In
Description
EATON 9PX 3000VA/3000W 2U RACK/TOWER, 16AMP INPUT, 3 YRS WTY 440 X 605 X 86.5, 26.5KG
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power capacity |
3 kVA |
| Output power |
3000 W |
| Input operation voltage (min) |
176 V |
| Input operation voltage (max) |
276 V |
| Output operation voltage (min) |
200 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
94% |
| Power factor |
1 |
| Input frequency |
40/70 Hz |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Number of input phases |
1 |
| Waveform |
Pure sine |
| Noise level |
40 dB |
| LED indicators |
Yes |
| Features |
|---|
| Output frequency |
50/60 Hz |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
3 kVA |
| Number of input phases |
1 |
| Output power |
3000 W |
| Input operation voltage (min) |
176 V |
| Input operation voltage (max) |
276 V |
| Output operation voltage (min) |
200 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
94% |
| Waveform |
Pure sine |
| Power factor |
1 |
| Noise level |
40 dB |
| Input frequency |
40/70 Hz |
| Ports & interfaces |
|---|
| USB port |
Yes |
| AC outlets quantity |
10 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
C20 coupler |
| USB 2.0 ports quantity |
1 |
| RS-232 ports |
1 |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Typical backup time at half load |
9.5 min |
| Hot-swap battery |
Yes |
| Automatic battery test |
Yes |
| Design |
|---|
| Rack capacity |
2U |
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Safety |
IEC/EN 62040-1, UL 1778, CSA 22.2 |
| Certification |
IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star |
| LED indicators |
Yes |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Sustainability certificates |
ENERGY STAR |
| Harmonized System (HS) code |
85078000 |
| Certificates |
|---|
| Certification |
IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star |
| Safety |
IEC/EN 62040-1, UL 1778, CSA 22.2 |
| Packaging content |
|---|
| Rack mount kit |
Yes |
| Management card included |
No |
| Bundled software |
Intelligent Power Software suite |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| Safety regulation & standards |
|---|
| Safety |
IEC/EN 62040-1, UL 1778, CSA 22.2 |
| Weight & dimensions |
|---|
| Width |
440 mm |
| Depth |
605 mm |
| Height |
86.5 mm |
| Weight |
27.6 kg |
| Packaging data |
|---|
| Rack mount kit |
Yes |
| Bundled software |
Intelligent Power Software suite |
| Management card included |
No |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
| Other features |
|---|
| Nominal output voltage |
230 V |
| Nominal input voltage |
230 V |
