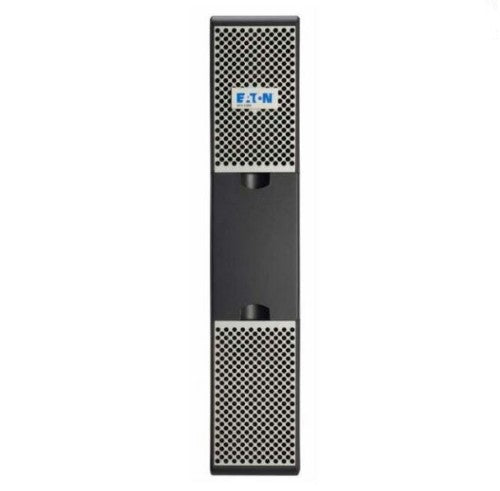

9PX EBM 2U 72V, for 1 & 1.5kVA UPS
Description

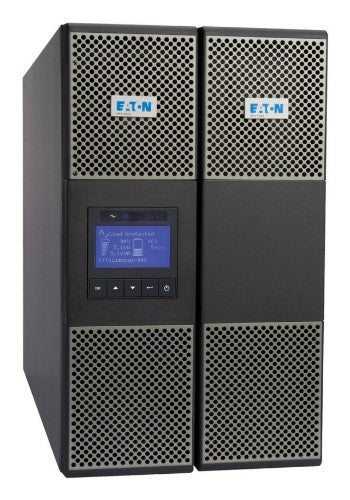

Reliable. Versatile. Powerful. Efficient. With double-conversion topology for constant power conditioning and up to 93 percent efficiency, the Eaton 9PX 700-3000 VA models support your overall goal of business continuity. It’s built for scalable deployment, features a graphical LCD for local status updates and integrates with virtualized environments.
Specifications
| Features |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery capacity |
9 Ah |
| Battery voltage |
72 V |
| Number of battery cells |
12 |
| Certification |
IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star |
| Hot-swap battery |
Yes |
| Product colour |
Black |
| Compatibility |
9PX 2200 (2U) / 9PX 3000 (2U) |
| Technical details |
|---|
| Harmonized System (HS) code |
85044095 |
| Certificates |
|---|
| Certification |
IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star |
| Weight & dimensions |
|---|
| Weight |
39.2 kg |
| Width |
440 mm |
| Height |
86.5 mm |
| Depth |
605 mm |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
85044095 |
