1000VA, 800W, C14/4x C13, 37dB, 9.5Kg
Key Features

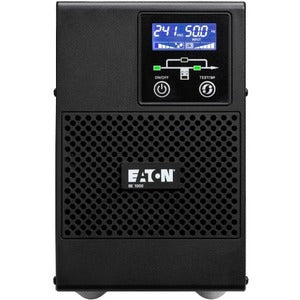

- Get clear information on the UPS’ status and measurements (load level, battery level, input/output voltage and frequency) on a single screen with the new LCD interface

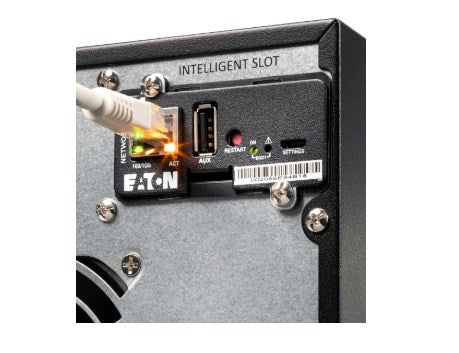

- Easily communicate with the UPS through USB, RS232 serial or over the network with the optional network card (Network-MS). Relay cards or Modbus cards are also available
- Integrate 9E into all software environments. The Eaton 9E is delivered with Eaton’s Intelligent Power™ Software and is compatible with all major OS including advanced integration in VMware vCenter and Microsoft Hyper-V
- Wide input voltage range will minimize the battery usage and help to extend battery lifetime
- The internal bypass allows service continuity in case of an internal fault

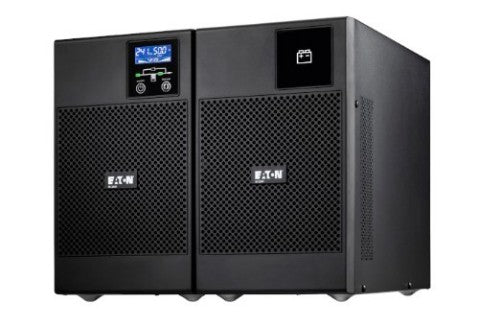

- Extend runtime as you like by adding up to 4 external battery modules (EBM) for 2kVA and above. For extra-long runtime, XL models with internal supercharger are also available at 3kVA
Description
The Eaton 9E UPS constantly monitors power conditions and regulates voltage and frequency thanks to the double conversion topology. Eaton 9E UPS can power more servers than most similar UPS because of a 0.8 power factor.
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power capacity |
1 kVA |
| Output power |
800 W |
| Input operation voltage (min) |
100 V |
| Input operation voltage (max) |
300 V |
| Output operation voltage (min) |
208 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
91% |
| Input frequency |
50/60 Hz |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Noise level |
37 dB |
| Overload capacity (1 minute) |
130% |
| Overload capacity (5 minute) |
150% |
| Overload capacity (10 seconds) |
150% |
| Features |
|---|
| Output frequency |
50/60 Hz |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
1 kVA |
| Output power |
800 W |
| Input operation voltage (min) |
100 V |
| Input operation voltage (max) |
300 V |
| Output operation voltage (min) |
208 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
91% |
| Noise level |
37 dB |
| Overload capacity (1 minute) |
130% |
| Overload capacity (5 minute) |
150% |
| Overload capacity (10 seconds) |
150% |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |

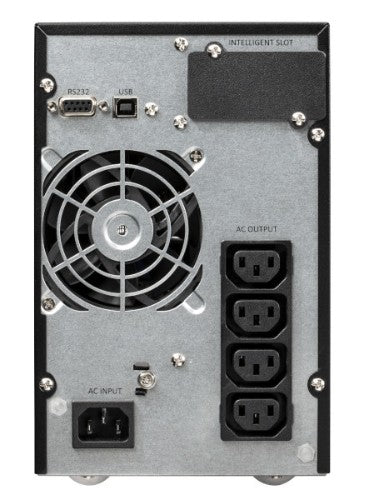

| AC outlets quantity |
4 AC outlet(s) |
| AC outlet types |
IEC 320 |
| Power plug |
C13 coupler |
| Serial ports quantity |
1 |
| RS-232 ports |
1 |
| Battery |
|---|
| Typical backup time at half load |
12 min |
| Typical backup time at full load |
4 min |
| Design |
|---|
| Safety |
IEC/EN 62040-1 |
| Certification |
IEC/EN 62040 -2, CE, CB report (TUV) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Certificates |
|---|
| Certification |
IEC/EN 62040 -2, CE, CB report (TUV) |
| Safety |
IEC/EN 62040-1 |
| Safety regulation & standards |
|---|
| Safety |
IEC/EN 62040-1 |
| Weight & dimensions |
|---|
| Width |
228 mm |
| Depth |
144 mm |
| Height |
356 mm |
| Weight |
9.5 kg |
