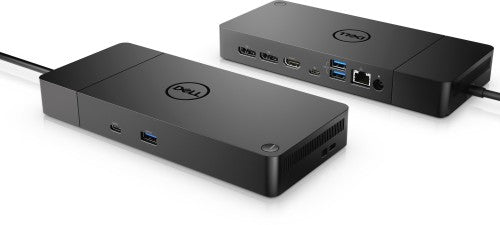

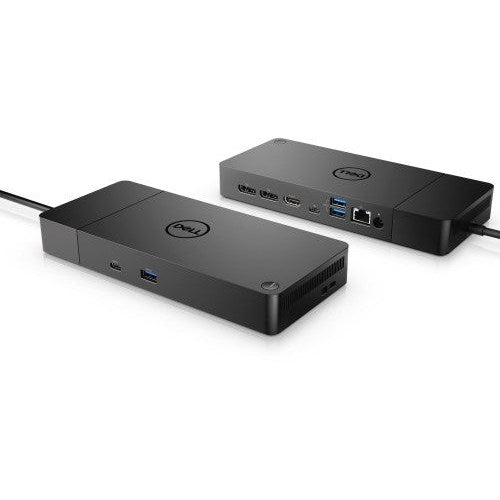

USB 3.1 Gen2 Type-C, 3 x USB A 3.1, 2 x DisplayPort, HDMI, RJ-45, 180W
Description
Boost your PC’s power on the world’s most powerful and first modular dock with a future-ready design. WD19S 180W is a simplified version of WD19 180W without 3.5mm ports.
Specifications
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
2.0 |
| DisplayPorts quantity |
2 |
| Microphone in |
No |
| DC-in jack |
Yes |
| DisplayPort version |
1.4 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Maximum digital resolution |
3840 x 2160 pixels |
| Product colour |
Black |
| On/off switch |
Yes |
| Card reader integrated |
No |
| LED indicators |
Yes |
| Storage |
|---|
| Card reader integrated |
No |
| Power |
|---|
| Power source type |
DC |
| AC input voltage |
120 - 230 V |
| AC input frequency |
50 - 60 Hz |
| Power cable length |
1 m |
| Power supply |
180 W |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 |
| Linux operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 35 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
205 mm |
| Depth |
90 mm |
| Height |
29 mm |
| Weight |
585 g |
| Package width |
300 mm |
| Package depth |
290 mm |
| Package height |
62 mm |
| Design |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 |
| Product colour |
Black |
| LED indicators |
Yes |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package width |
300 mm |
| Package depth |
290 mm |
| Package height |
62 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
