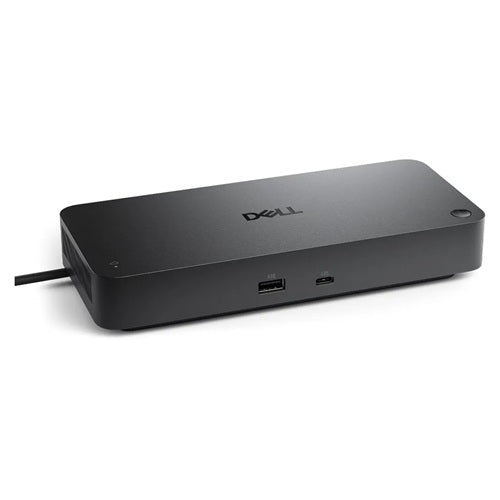

Pro Smart Dock - SD25
Description
Get the power and agility to work your way with the latest smart dock featuring up to 130W USB-C power delivery and remote management capabilities.
Specifications
| Ports & interfaces |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
2 |
| Microphone in |
No |
| DC-in jack |
Yes |
| USB Power Delivery (USB PD) |
Yes |
| PowerShare |
Yes |
| Number of USB ports with PowerShare support |
4 |
| USB Power Delivery up to |
130 W |
| DisplayPort version |
1.4 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Network |
|---|
| Wake-on-LAN ready |
Yes |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
2500 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Maximum digital resolution |
6144 x 3456 pixels |
| Number of displays supported |
4 |
| Product colour |
Black |
| Card reader integrated |
No |
| Cable lock slot |
Yes |
| LED indicators |
Yes |
| Cable lock slot type |
Kensington |
| HD type |
6K Ultra HD |
| Maximum refresh rate |
60 Hz |
| Storage |
|---|
| Card reader integrated |
No |
| Power |
|---|
| Power source type |
DC |
| Power connector |
USB Type-C |
| Power supply |
180 W |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 11 |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Other operating systems supported |
ChromeOS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 35 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
90 mm |
| Depth |
35.2 mm |
| Height |
205 mm |
| Weight |
562 g |
| Design |
|---|
| Windows operating systems supported |
Windows 10, Windows 11 |
| Mac operating systems supported |
Yes |
| Product colour |
Black |
| Cable lock slot |
Yes |
| LED indicators |
Yes |
| Cable lock slot type |
Kensington |
| Packaging content |
|---|
| Quick start guide |
Yes |
