Intel Core i5-14500T (24MB Cache), 8GB DDR5-SDRAM, 512GB SSD, Intel UHD Graphics 770, LAN, WLAN, Bluetooth, Windows 11 Pro 64-bit
Key Features
- Windows 11 Pro 64-bit
- Intel Core i5-14500T (24MB Cache)
- 8GB DDR5-SDRAM & 512GB SSD
Description
Ultracompact desktops designed to maximise efficiency and productivity in small workspaces.
Specifications
| Processor |
|---|
| Processor generation |
Intel® Core™ i5 (14th gen) |
| Processor cache type |
Smart Cache |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Processor model |
i5-14500T |
| Processor cores |
14 |
| Processor boost frequency |
4.8 GHz |
| Processor cache |
24 MB |
| Processor threads |
20 |
| Number of processors installed |
1 |
| Performance cores |
6 |
| Efficient cores |
8 |
| Performance-core base frequency |
1.7 GHz |
| Efficient-core base frequency |
1.2 GHz |
| Processor base power |
35 W |
| Maximum turbo power |
92 W |
| Efficient-core Max Turbo Frequency |
3.4 GHz |
| Performance-core Max Turbo Frequency |
4.8 GHz |
| Neural processor unit (NPU) |
|---|
| AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Memory |
|---|
| Internal memory |
8 GB |
| Internal memory type |
DDR5-SDRAM |
| Maximum internal memory |
64 GB |
| Memory slots |
2x SO-DIMM |
| Non-ECC |
Yes |
| Storage |
|---|
| Total storage capacity |
512 GB |
| Optical drive type |
No |
| Storage media |
SSD |
| Number of storage drives installed |
1 |
| Number of SSDs installed |
1 |
| SSD capacity |
512 GB |
| SSD interface |
PCI Express 4.0 |
| SSD form factor |
M.2 |
| Total SSDs capacity |
512 GB |
| NVMe |
Yes |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card family |
Intel® UHD Graphics |
| Discrete graphics card model |
Not available |
| On-board graphics card model |
Intel UHD Graphics 770 |
| On-board graphics card |
Yes |
| On-board GPU manufacturer |
Intel |
| Optical drive |
|---|
| Optical drive type |
No |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Wi-Fi |
Yes |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Bluetooth |
Yes |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| LAN controller |
Intel WGI219LM |

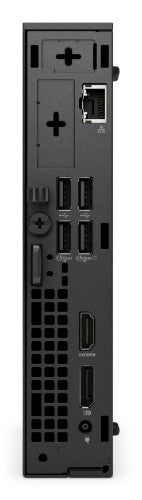

| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Thunderbolt 3 ports quantity |
0 |
| USB 2.0 ports quantity |
2 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| DC-in jack |
Yes |
| DisplayPort version |
1.4a |
| Number of rear USB ports |
4 |
| Number of front USB ports |
2 |
| Number of front audio ports |
1 |
| Design |
|---|
| Product colour |
Black |
| Chassis type |
Micro PC |
| Placement supported |
Horizontal/Vertical |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Intel® vPro™ Platform Eligibility |
Yes |
| Performance |
|---|
| Audio chip |
Realtek ALC3204 |
| Market positioning |
Business |
| Product type |
Mini PC |
| Motherboard chipset |
Intel Q870 |
| Audio system |
High Definition Audio |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Software |
|---|
| Operating system installed |
Windows 11 Pro |
| Operating system architecture |
64-bit |
| Processor special features |
|---|
| Intel® vPro™ Platform Eligibility |
Yes |
| Power |
|---|
| Power supply input frequency |
50 / 60 Hz |
| Power supply input voltage |
100 - 240 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
10 - 35 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Operating altitude |
-15.2 - 3048 m |
| Non-operating altitude |
-15.2 - 10668 m |
| Storage temperature (T-T) |
-40 - 65 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating vibration |
0.26 G |
| Non-operating vibration |
1.37 G |
| Operating shock |
40 G |
| Non-operating shock |
105 G |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR, EPEAT Climate +, EPEAT Gold |
| Weight & dimensions |
|---|
| Width |
36 mm |
| Depth |
178 mm |
| Height |
182 mm |
| Weight |
1.16 kg |
| Packaging content |
|---|
| Display included |
No |
| Display |
|---|
| Display included |
No |
| Technical details |
|---|
| Sustainability certificates |
ENERGY STAR, EPEAT Climate +, EPEAT Gold |
| Other features |
|---|
| Processor manufacturer |
Intel |
| Trusted Platform Module (TPM) |
Yes |
| On-board graphics card |
Yes |
