Intel Core Ultra 5 335 (12MB Cache), 16GB DDR5-SDRAM, 512GB SSD, Intel Graphics, LAN, WLAN, Bluetooth, Windows 11 Pro 64-bit
Key Features
- Windows 11 Pro 64-bit
- Intel Core Ultra 5 335 (12MB Cache)
- 16GB DDR5-SDRAM (1 x 16) & 512GB SSD
Description
DELL PRO 5 DESKTOP, MICRO (MFF), U5-335, 16GB, 512GB, WL, W11P(CP+), 3Y PRO
Specifications
| Processor |
|---|
| Processor generation |
Intel® Core™ Ultra (Series 3) |
| Processor cache type |
Smart Cache |
| Processor family |
Intel Core Ultra 5 |
| Processor manufacturer |
Intel |
| Processor model |
335 |
| Processor cores |
8 |
| Processor boost frequency |
4.6 GHz |
| Processor socket |
FCBGA2540 |
| Processor cache |
12 MB |
| Processor threads |
8 |
| Number of processors installed |
1 |
| Performance cores |
4 |
| Efficient cores |
0 |
| Processor base power |
25 W |
| Maximum turbo power |
55 W |
| Neural processor unit (NPU) |
|---|
| Neural processor unit (NPU) |
Intel AI Boost |
| NPU performance up to |
47 TOPs |
| GPU performance up to |
40 TOPs |
| Memory |
|---|
| Internal memory |
16 GB |
| Internal memory type |
DDR5-SDRAM |
| Maximum internal memory |
64 GB |
| Memory layout (slots x size) |
1 x 16 GB |
| Memory slots |
2x SO-DIMM |
| Non-ECC |
Yes |
| Storage |
|---|
| Total storage capacity |
512 GB |
| Optical drive type |
No |
| Storage media |
SSD |
| Number of storage drives installed |
1 |
| Number of SSDs installed |
1 |
| SSD capacity |
512 GB |
| Total SSDs capacity |
512 GB |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card family |
Intel® Graphics |
| Discrete graphics card model |
Not available |
| On-board graphics card model |
Intel® Graphics |
| On-board graphics card |
Yes |
| On-board GPU manufacturer |
Intel |
| Performance |
|---|
| Product type |
Mini PC |
| Audio output channels |
4.0 channels |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Audio chip |
Realtek ALC3204 |
| Audio system |
High Definition Audio |
| Optical drive |
|---|
| Optical drive type |
No |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Bluetooth |
Yes |
| WLAN controller model |
Intel Wi-Fi 7 BE211 |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Antenna type |
2x2 |
| WLAN controller manufacturer |
Intel |
| LAN controller |
Intel® I219-LM |

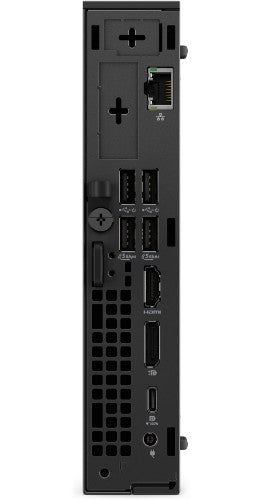

| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| Thunderbolt 3 ports quantity |
0 |
| USB 2.0 ports quantity |
2 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPort version |
1.4a |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Power |
|---|
| Power supply input frequency |
50 / 60 Hz |
| Power supply input voltage |
100 - 240 V |
| Design |
|---|
| Product colour |
Black |
| Chassis type |
Mini PC |
| Placement supported |
Horizontal/Vertical |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Software |
|---|
| Operating system installed |
Windows 11 Pro |
| Operating system architecture |
64-bit |
| Display |
|---|
| Display included |
No |
| Audio |
|---|
| Audio chip |
Realtek ALC3204 |
| Audio system |
High Definition Audio |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 35 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating altitude |
-15.2 - 3048 m |
| Non-operating altitude |
-15.2 - 10668 m |
| Storage temperature (T-T) |
-40 - 65 °C |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating vibration |
0.66 G |
| Non-operating vibration |
1.3 G |
| Operating shock |
110 G |
| Non-operating shock |
160 G |
| Weight & dimensions |
|---|
| Width |
36 mm |
| Depth |
178 mm |
| Height |
182 mm |
| Packaging content |
|---|
| Mouse included |
Yes |
| Keyboard included |
Yes |
| Display included |
No |
| Other features |
|---|
| Processor manufacturer |
Intel |
| Trusted Platform Module (TPM) |
Yes |
| On-board graphics card |
Yes |
