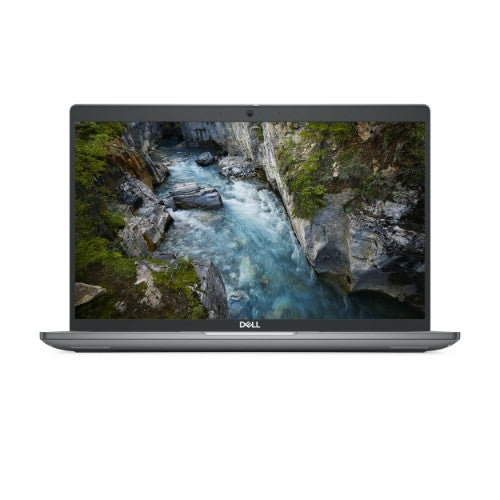

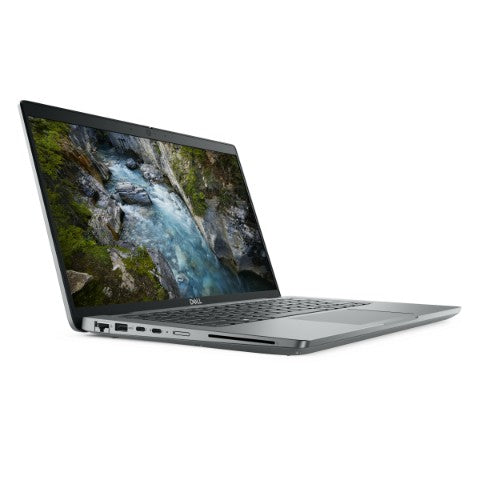

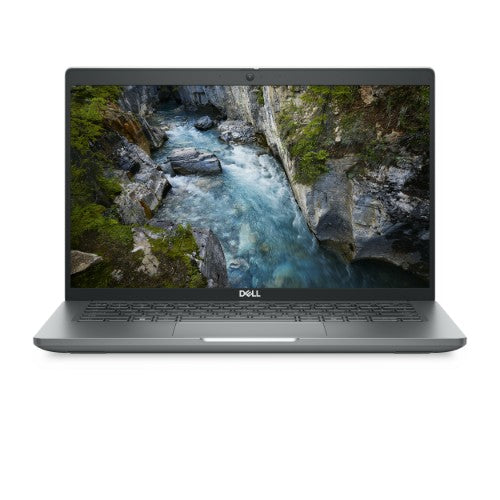

Intel Core Ultra 5 135H (18MB Cache), 16GB DDR5-SDRAM, 512GB SSD, 14" Full HD 1920 x 1080 IPS, Intel Arc Graphics, LAN, Webcam, Windows 11 Pro 64-bit
Key Features
- Windows 11 Pro 64-bit
- Intel Core Ultra 5 135H (18MB Cache)
- 14" Full HD 1920 x 1080 IPS
- 16GB DDR5-SDRAM & 512GB SSD
Description
Purpose built for Power UsersUltra-light and mobile, this 14-inch workstation is perfect for professionals who need a compact device for productivity while multi-tasking across applications.
Specifications
| Design |
|---|
| Product type |
Mobile workstation |
| Product colour |
Grey |
| Form factor |
Clamshell |
| Market positioning |
Business |
| Display |
|---|
| HD type |
Full HD |
| Pixel density |
157 ppi |
| Display diagonal |
35.6 cm (14") |
| Display resolution |
1920 x 1080 pixels |
| LED backlight |
Yes |
| Panel type |
IPS |
| Display diagonal (metric) |
35.56 cm |
| Anti-glare screen |
Yes |
| Maximum refresh rate |
60 Hz |
| Native aspect ratio |
16:9 |
| Processor |
|---|
| Processor generation |
Intel® Core™ Ultra (Series 1) |
| Processor cache type |
Smart Cache |
| Processor family |
Intel Core Ultra 5 |
| Processor model |
135H |
| Processor boost frequency |
4.6 GHz |
| Processor cores |
14 |
| Processor threads |
18 |
| Processor cache |
18 MB |
| Motherboard chipset |
Intel SoC |
| Processor manufacturer |
Intel |
| Processor base power |
28 W |
| Maximum turbo power |
115 W |
| Efficient-core base frequency |
1.2 GHz |
| Performance-core base frequency |
1.7 GHz |
| Efficient-core Max Turbo Frequency |
3.6 GHz |
| Performance-core Max Turbo Frequency |
4.6 GHz |
| Performance cores |
4 |
| Efficient cores |
8 |
| Low Power Efficient-core Base Frequency |
700 MHz |
| Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
| Low Power Efficient-cores |
2 |
| Neural processor unit (NPU) |
|---|
| Neural processor unit (NPU) |
Intel AI Boost |
| Sparsity support |
Yes |
| Windows Studio effects support |
Yes |
| AI software frameworks supported by NPU |
DirectML, ONNX RT, OpenVINO, Windows ML |
| Memory |
|---|
| Internal memory |
16 GB |
| Internal memory type |
DDR5-SDRAM |
| Memory slots |
2x SO-DIMM |
| Maximum internal memory |
64 GB |
| Memory form factor |
SO-DIMM |
| Memory data transfer rate |
5600 MT/s |
| Storage |
|---|
| SSD form factor |
M.2 |
| Optical drive type |
No |
| Total storage capacity |
512 GB |
| Storage media |
SSD |
| Number of SSDs installed |
1 |
| SSD capacity |
512 GB |
| SSD interface |
PCI Express 4.0 |
| Total SSDs capacity |
512 GB |
| NVMe |
Yes |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card family |
Intel Arc Graphics |
| On-board graphics card model |
Intel Arc Graphics |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| On-board GPU manufacturer |
Intel |
| Audio |
|---|
| Number of microphones |
2 |
| Audio system |
MaxxAudio Pro |
| Number of built-in speakers |
2 |
| Speakers manufacturer |
Waves |
| Speaker power |
2 W |
| Built-in microphone |
Yes |
| Camera |
|---|
| Front camera |
Yes |
| Front camera resolution (numeric) |
2.07 MP |
| Front camera resolution |
1920 x 1080 pixels |
| Privacy camera |
Yes |
| Privacy type |
Privacy shutter |
| Front camera HD type |
Full HD |
| Optical drive |
|---|
| Optical drive type |
No |
| Network |
|---|
| Mobile network connection |
No |
| Bluetooth |
Yes |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| USB 2.0 ports quantity |
0 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Combo headphone/mic port |
Yes |
| USB Power Delivery (USB PD) |
Yes |
| PowerShare |
Yes |
| Charging port type |
USB Type-C |
| Thunderbolt 4 ports quantity |
2 |
| Intel® Thunderbolt 4 |
Yes |
| Performance |
|---|
| Motherboard chipset |
Intel SoC |
| Keyboard |
|---|
| Pointing device |
Touchpad |
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Software |
|---|
| Operating system installed |
Windows 11 Pro |
| Operating system architecture |
64-bit |
| Battery |
|---|
| Number of battery cells |
3 |
| Battery recharge time |
4 h |
| Battery voltage |
11.4 V |
| Fast charging |
Yes |
| Power |
|---|
| AC adapter frequency |
50/60 Hz |
| AC adapter input voltage |
100 - 240 V |
| USB Power Delivery (USB PD) |
Yes |
| Security |
|---|
| Cable lock slot |
Yes |
| Cable lock slot type |
Wedge |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 35 °C |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
-15.2 - 3048 m |
| Non-operating altitude |
-15.2 - 10668 m |
| Operating shock |
110 G |
| Non-operating shock |
160 G |
| Operating vibration |
0.66 G |
| Non-operating vibration |
1.3 G |
| Weight & dimensions |
|---|
| Weight |
1.4 kg |
| Width |
321.4 mm |
| Depth |
212 mm |
| Height (front) |
1.91 cm |
| Height (rear) |
2.1 cm |
| Other features |
|---|
| Audio system |
MaxxAudio Pro |
| On-board graphics card |
Yes |
| Display diagonal (metric) |
35.56 cm |
| Anti-glare screen |
Yes |
