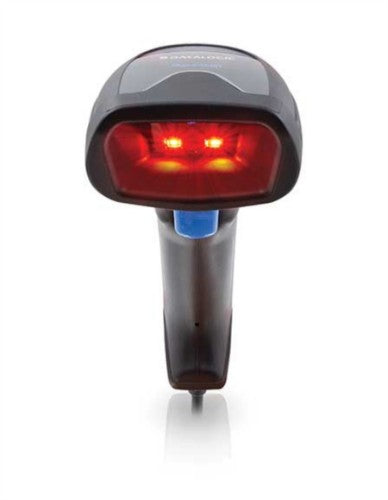

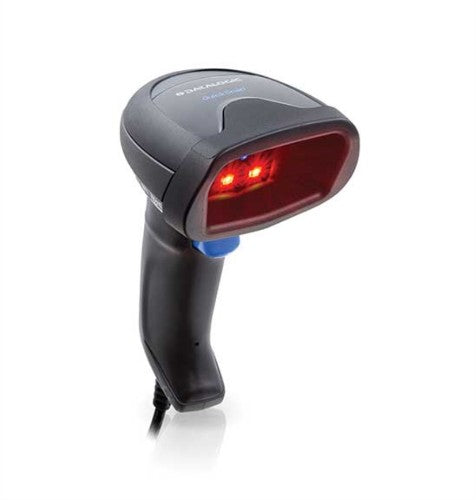

QuickScan QW2520, 2D VGA Imager, USB Interface, Black (Kit includes Scanner, USB Cable 90A052258 and Stand STD-QW25-BK)
Description
The QuickScan QW2500 is the simplest model within the 2500 Series. It comes in the same rugged, durable IP52 rated housing as the QD2500. The only moving part is the trigger, which will comfortably give you a class-leading 10 million hits. It offers consistent, reliable reading of all standard barcodes. For applications requiring high efficiency and fast throughput, the QW2500 represents one of the best value for money handheld scanners on the market today.
Specifications
| Scanning |
|---|
| Type |
Handheld bar code reader |
| Sensor type |
Laser |
| Linear (1D) barcodes supported |
GS1 DataBar |
| 2D (matrix & stacked) barcodes supported |
Han Xin, Aztec Code, Data Matrix, QR Code, Micro QR Code |
| Scanner type |
1D/2D |
| Tilt reading angle |
0 - 360° |
| Pitch reading angle |
0 - 65° |
| Yaw reading angle |
0 - 65° |
| Optical sensor resolution (W x H) |
640 x 480 pixels |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Standard interfaces |
Keyboard wedge, RS-232, USB |
| Performance |
|---|
| Product colour |
Black |
| International Protection (IP) code |
IP52 |
| Protection features |
Shock resistant, Water resistant |
| Keys quantity |
1 keys |
| LED indicators |
Yes |
| Image formats supported |
BMP, JPEG, TIFF |
| Ambient lighting |
Yes |
| Print contrast |
15% |
| Design |
|---|
| Product colour |
Black |
| Type |
Handheld bar code reader |
| International Protection (IP) code |
IP52 |
| Protection features |
Shock resistant, Water resistant |
| Keys quantity |
1 keys |
| LED indicators |
Yes |
| Power |
|---|
| Power source type |
DC, USB |
| Input voltage |
5 V |
| Weight & dimensions |
|---|
| Width |
148 mm |
| Depth |
68 mm |
| Height |
126 mm |
| Weight |
145 g |
| Packaging data |
|---|
| Cables included |
USB |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Harmonized System (HS) code |
84716070 |
| Compliance certificates |
RoHS |
| Packaging content |
|---|
| Cables included |
USB |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
