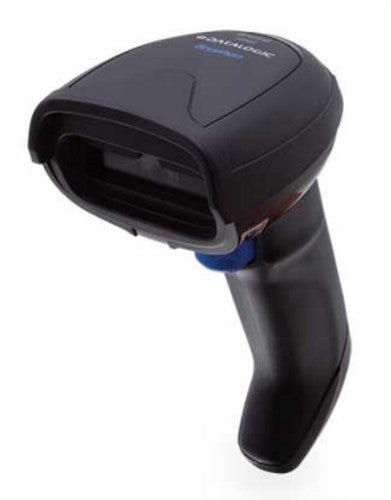

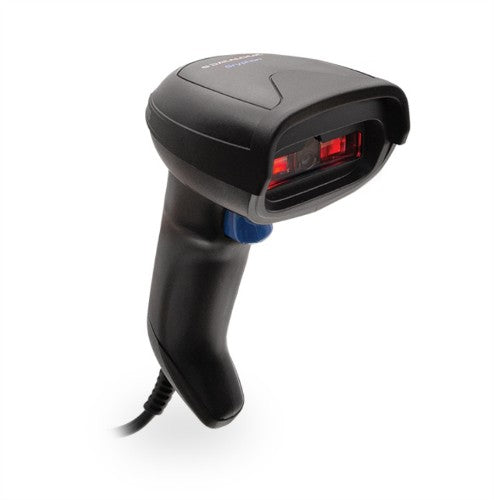

Gryphon I GD4220, Kit, Linear Imager, USB-only, Black (Kit includes Scanner and USB Cable
Key Features
- Enhanced linear imaging technology for superior scanning and Depth of Field
- Reads 1D high-density and low-resolution codes, hard-to-read, poor or damaged codes and bar codes from mobile devices
- Datalogic’s distinctive ‘soft line viewfinder’ to easily target the barcode to be read
- Datalogic’s ‘Green Spot’ technology and 3GL (3 Green Lights) for superior good-read feedback
- Motionix motion-sensing technology for seamless reading mode transitions
- Choice of Bluetooth wireless technology or Datalogic’s STAR Cordless System (radio frequencies available in 433 MHz or 910 MHz)
- Wireless battery charging system
- Choice of WLC4190 sleek desk/wall cradle with USB Type C connectivity or WLC4090 adjustable position cradle with Scan-While-Charging capability
- Long lasting replaceable Lithium-Ion battery
- Multi-interface options: USB type C / USB only or multi-interface USB type C / USB /RS-232 / Keyboard Wedge multi-interface
- Disinfectant-Ready enclosures withstand daily cleaning with harsh disinfectant solutions
- EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Description
The Gryphon™ 4200 series represents the premium range of 1D hand held scanners from Datalogic for general purpose applications. Designed to provide the best-in-class reading performance, the Gryphon 4200 readers’ ability to capture bar codes from near to far, to read both high-density and low resolution codes, to decode hard-to-read, poorly printed or damaged codes and to easily read bar codes from mobile devices simplifies all applications. Ideal for hand held reading, the Gryphon 4200 utilizes Datalogic’s Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the ‘ready-to-read’ scanning mode. Datalogic’s distinctive ‘soft line viewfinder’ helps the operator to easily target the code to be read, making it easier and faster to point, shoot and decode the proper label, reducing accidental reads in a multiple bar code situation. The Gryphon 4200 Series includes 3 models: a corded ‘Desk’ model (GD4200), a cordless model featuring Bluetooth® wireless technology (GBT4200) and a cordless model featuring Datalogic’s STAR Cordless System™ narrow band radio (GM4200).
Specifications
| Scanning |
|---|
| Type |
Handheld bar code reader |
| Sensor type |
Linear |
| Linear (1D) barcodes supported |
GS1 DataBar |
| 2D (matrix & stacked) barcodes supported |
Not supported |
| Read rate (max) |
400 reads/s |
| Scanner type |
1D |
| Tilt reading angle |
0 - 45° |
| Pitch reading angle |
0 - 65° |
| Yaw reading angle |
0 - 65° |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Standard interfaces |
Keyboard wedge, RS-232, USB |
| Performance |
|---|
| Product colour |
Black |
| International Protection (IP) code |
IP52 |
| Protection features |
Electrostatic Discharge (ESD) protection |
| LED indicators |
Yes |
| Ambient lighting |
Yes |
| Print contrast |
15% |
| Design |
|---|
| Product colour |
Black |
| Type |
Handheld bar code reader |
| International Protection (IP) code |
IP52 |
| Protection features |
Electrostatic Discharge (ESD) protection |
| LED indicators |
Yes |
| Power |
|---|
| Power source type |
DC, USB |
| Input voltage |
5 V |
| Weight & dimensions |
|---|
| Width |
166 mm |
| Depth |
68 mm |
| Height |
109 mm |
| Weight |
163 g |
| Packaging data |
|---|
| Cables included |
USB Type-C |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Technical details |
|---|
| Harmonized System (HS) code |
84716070 |
| Packaging content |
|---|
| Cables included |
USB Type-C |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
