2D MP Imager, Charging Base, USB cable
Description

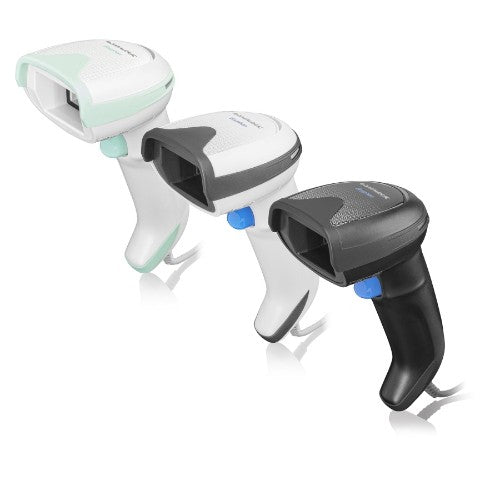

The Gryphon 4500 series stands out with an elegant and trendy design, user friendly ergonomics and features the most advanced megapixel sensor with warm-white-illumination 2D technology for outstanding performance.
The Gryphon 4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes. High Density (HD) models are available for reading smaller, condensed codes as well as a dedicated version with red illumination optics to support Digital Watermarking.

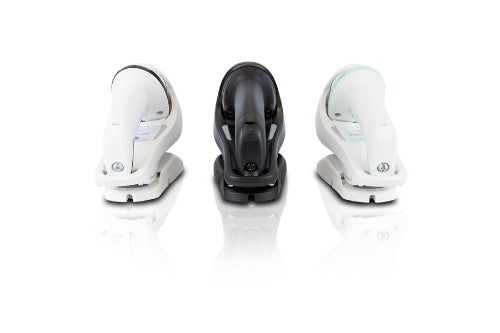

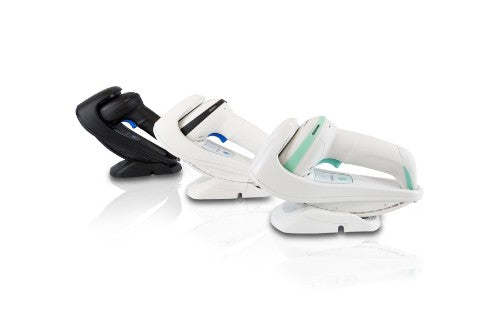

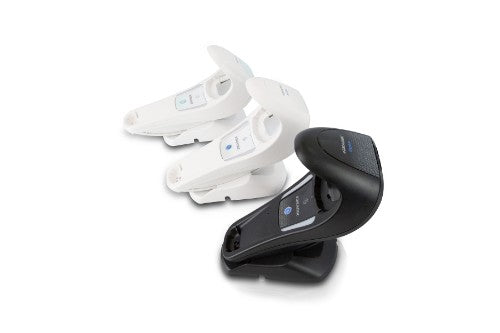

Datalogic’s Motionix™ motion-sensing technology enables the scanner to intuitively switch into ‘hand held’ mode when the device is picked up. When placed back into the cradle, it seamlessly returns to ‘stand’ mode. The adjustable position cradle provides the flexibility to use the scanner in presentation or stand mode while it is charging.
The wireless models feature Bluetooth wireless technology (GBT model) or narrow band radio communications with Datalogic’s STAR Cordless System (GM model).
One of the most important technical innovations that the Gryphon 4500 wireless readers achieve is the wireless charging system for the battery, which enhances the reliability of the entire solution, while lowering the total cost of ownership (no need for contact cleaning or maintenance procedures). The maximum reliability offered by the Gryphon wireless charging technology means 24/7 activities with no stops for maintenance or repair and top-level operating productivity and performance.

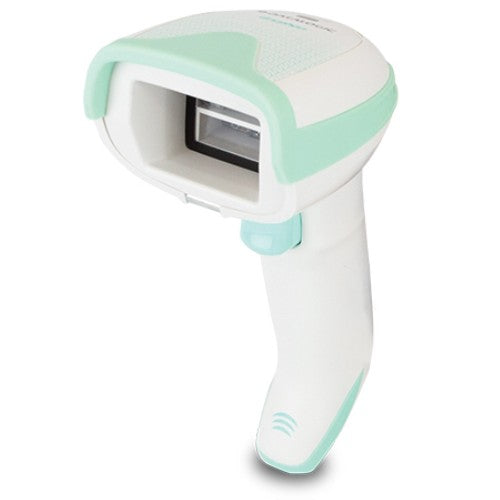

The Gryphon 4500 imagers are also available in Healthcare models featuring disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.
Specifications
| Scanning |
|---|
| Type |
Handheld bar code reader |
| Sensor type |
Laser |
| Linear (1D) barcodes supported |
Code 32, EAN-13, GS1 DataBar, GS1 DataBar Expanded, PDF417, U.P.C. |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Data Matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, MaxiCode, Micro QR Code, MicroPDF417, QR Code |
| Wavelength |
650 nm |
| Scanner type |
1D/2D |
| Tilt reading angle |
0 - 360° |
| Pitch reading angle |
-65 - 65° |
| Yaw reading angle |
-65 - 65° |
| Light levels (direct sunlight) |
0 - 100000 lx |
| Optical sensor resolution (W x H) |
1280 x 800 pixels |
| Ports & interfaces |
|---|
| Connectivity technology |
Wireless |
| Wireless range |
100 m |
| Bluetooth version |
4.0 |
| Operating frequency |
2400 MHz |
| Standard interfaces |
Bluetooth |
| Performance |
|---|
| Product colour |
White |
| International Protection (IP) code |
IP52 |
| Light levels (direct sunlight) |
0 - 100000 lx |
| Design |
|---|
| Product colour |
White |
| Type |
Handheld bar code reader |
| International Protection (IP) code |
IP52 |
| Power |
|---|
| Power source type |
Battery |
| Battery technology |
Lithium Polymer (LiPo) |
| Battery capacity |
3250 mAh |
| Battery voltage |
12 V |
| Number of reads per charge |
80000 |
| Charging time |
4 h |
| Input voltage |
4.5 - 14 V |
| Weight & dimensions |
|---|
| Width |
109 mm |
| Depth |
68 mm |
| Height |
166 mm |
| Weight |
235 g |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Light levels (direct sunlight) |
0 - 100000 lx |
| Technical details |
|---|
| Harmonized System (HS) code |
84716070 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
