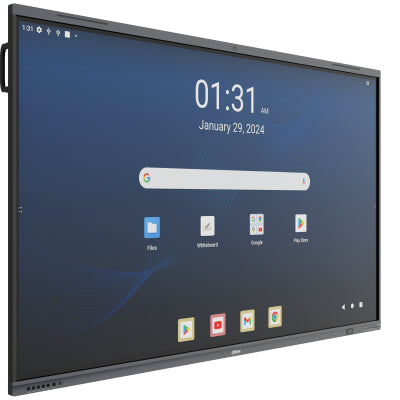

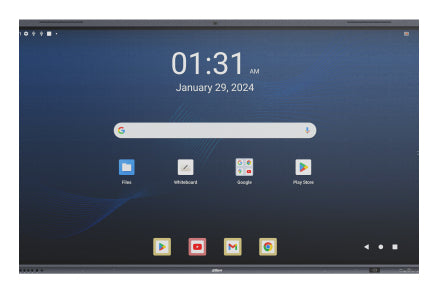

86 inch Smart interactive whiteboard
Key Features
- Displays in 4K Ultra HD and uses 4K UI
- Features split screen, and performs screen sharing between the whiteboard and phones, computers, tablets and more devices
- Microsoft Office and other related software can be installed, and it can play audio and video files in various formats
- Offers a smooth writing experience through handwriting recognition, pen writing, the fast writing response speed, and pen pressure recognition for a real writing experience
- Intelligent text
- Intelligent pen detection that automatically wakes up the whiteboard for annotations when the pen is lifted. Built-in 48M camera 8-array microphone design
- Features sound source positioning
- Offers NFC
- Includes a full-featured Type-C IN port and supports charging through USB PD up to 100 W
- With its 2 built-in mid-high frequency speakers, and 2 low-frequency speakers, the device emits sound from its top and supports 2.2-channel audio output
- Produces vibrant visuals through its high color coverage, low blue light emission, and accurate color reproduction
- Optional OPS module,dual-system switchable
Description
Interactive Panels
Specifications
| Display |
|---|
| Display diagonal |
2.18 m (86") |
| Contrast ratio (typical) |
5000:1 |
| Touchscreen |
Yes |
| Accuracy touch |
0.5 mm |
| Touchscreen type |
Infrared |
| Number of simultaneous touchpoints |
50 |
| Touch resolution |
32768 x 32768 pixels |
| Touch system response time |
2 ms |
| Panel type |
IPS |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Response time |
8 ms |
| Colour gamut |
90% |
| Display brightness |
400 cd/m² |
| Display resolution |
3840 x 2160 pixels |
| Display number of colours |
1.07 billion colours |
| HD type |
4K Ultra HD |
| LED backlighting type |
Direct-LED |
| Maximum refresh rate |
60 Hz |
| Anti-glare screen |
Yes |
| Surface material |
Tempered glass |
| Native aspect ratio |
16:9 |
| Low Blue Light technology |
Yes |
| Hardness |
9H |
| LED backlight |
Yes |
| Features |
|---|
| Display diagonal |
2.18 m (86") |
| Contrast ratio (typical) |
5000:1 |
| Touchscreen |
Yes |
| Accuracy touch |
0.5 mm |
| Touchscreen type |
Infrared |
| Number of simultaneous touchpoints |
50 |
| Touch resolution |
32768 x 32768 pixels |
| Touch system response time |
2 ms |
| Panel type |
IPS |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Response time |
8 ms |
| Colour gamut |
90% |
| Display brightness |
400 cd/m² |
| Display resolution |
3840 x 2160 pixels |
| Display number of colours |
1.07 billion colours |
| HD type |
4K Ultra HD |
| LED backlighting type |
Direct-LED |
| Maximum refresh rate |
60 Hz |
| Anti-glare screen |
Yes |
| Surface material |
Tempered glass |
| Native aspect ratio |
16:9 |
| Low Blue Light technology |
Yes |
| Hardness |
9H |
| LED backlight |
Yes |
| Product colour |
Black |
| Graphics card |
Mali-G610 MP4 |
| Operating system installed |
Android |
| Computer system |
|---|
| Graphics card |
Mali-G610 MP4 |
| Operating system installed |
Android |
| Built-in processor |
Yes |
| User memory |
128 GB |
| Processor frequency |
2.4 GHz |
| Processor cores |
4 |
| RAM capacity |
8 GB |
| Processor architecture |
ARM Cortex A76 + ARM Cortex A55 |
| Operating system version |
15 |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
4 |
| Speaker power |
52 W |
| Number of microphone arrays |
8 |
| Built-in microphone |
Yes |
| Camera |
|---|
| Built-in camera |
Yes |
| Camera resolution (numeric) |
48 MP |
| Projector |
|---|
| Analog signal format system |
NTSC |
| Built-in projector |
No |
| Contrast ratio (typical) |
5000:1 |
| Network |
|---|
| Bluetooth |
Yes |
| Bluetooth version |
5.2+EDR |
| Bluetooth Low Energy (BLE) |
Yes |
| Wi-Fi |
Yes |
| Near Field Communication (NFC) |
Yes |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ports & interfaces |
|---|
| USB connector type |
USB Type-C |
| HDMI ports quantity |
5 |
| Ethernet LAN (RJ-45) ports |
2 |
| RS-232 ports |
1 |
| USB Type-C ports quantity |
2 |
| USB 2.0 Type-B Touch ports quantity |
2 |
| DisplayPorts quantity |
1 |
| S/PDIF out port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Audio output |
1 |
| USB Power Delivery up to |
100 W |
| USB Power Delivery (USB PD) |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
5.2+EDR |
| Bluetooth Low Energy (BLE) |
Yes |
| Wi-Fi |
Yes |
| Near Field Communication (NFC) |
Yes |
| Ergonomics |
|---|
| Wall mountable |
Yes |
| Product colour |
Black |
| Certification |
EDLA |
| Buttons quantity |
6 |
| Frame material |
Metal |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (typical) |
320 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (max) |
650 W |
| System requirements |
|---|
| Windows operating systems supported |
Windows 7, Windows 8, Windows 10, Windows 11 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Performance |
|---|
| Remote control included |
Yes |
| Technical details |
|---|
| Touchscreen |
Yes |
| Remote control included |
Yes |
| Buttons quantity |
6 |
| Accuracy touch |
0.5 mm |
| Panel type |
IPS |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Response time |
8 ms |
| Colour gamut |
90% |
| Quantity per pack |
1 pc(s) |
| Sustainability certificates |
ENERGY STAR |
| Compliance certificates |
CE |
| Weight & dimensions |
|---|
| Width |
1957.1 mm |
| Depth |
98.5 mm |
| Height |
1178.6 mm |
| Weight |
64.4 kg |
| Bezel width (L/T, R/B) |
U: 33.3 mm, L/R: 14.6 mm, D: 43.0 mm (U: 2.42", L/R: 0.69", D: 1.11") |
| Packaging data |
|---|
| Package width |
2110 mm |
| Package depth |
1304 mm |
| Package height |
225 mm |
| Package weight |
77.6 kg |
| Quantity per pack |
1 pc(s) |
| Stylus included |
Yes |
| Packaging content |
|---|
| Cables included |
AC |
| Stylus included |
Yes |
| Quick start guide |
Yes |
| Mounting brackets included |
Yes |
| Remote control included |
Yes |
| Processor |
|---|
| Built-in processor |
Yes |
| Processor frequency |
2.4 GHz |
| Processor cores |
4 |
| Processor architecture |
ARM Cortex A76 + ARM Cortex A55 |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| Compliance certificates |
CE |
| Memory |
|---|
| User memory |
128 GB |
| RAM capacity |
8 GB |
| Certificates |
|---|
| Certification |
EDLA |
| Colour |
|---|
| Product colour |
Black |
