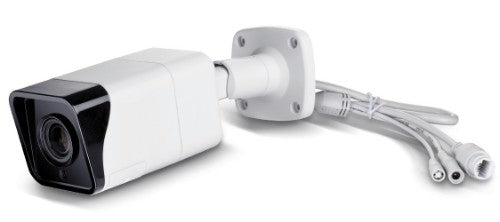

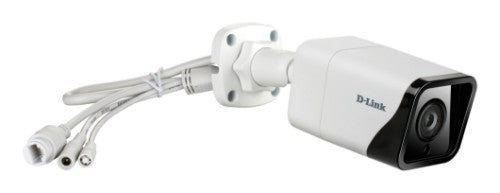

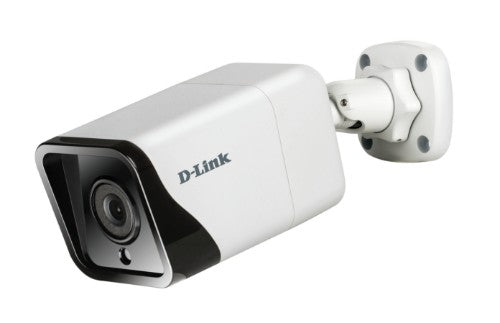

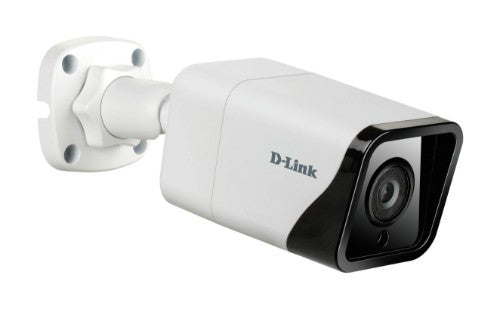

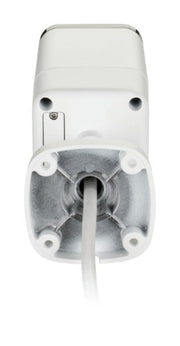

D-Link Vigilance 2 Megapixel H.265 Outdoor Bullet Camera

1/2.8", 2MP, CMOS, 30 m IR, 18x, 2.8 mm, F2.0, IP66, 1920 x 1080px, microSD, 10/100 Base-TX, 500 g

Key Features

• High Definition 2-megapixel sensor
• IP66 Weather-Resistant
• 30m Night Vision with WDR & LowLight+
• PoE for easy installation
• Easy remote management with D-ViewCam

Description

High quality professional surveillance
A 2 Megapixel lens and state-of-the-art image enhancement features are packed into a compact form factor that’s ready to face the outdoors.

2MP HD Resolution
2-megapixel sensor with High Definition resolution up to 1920 x 1080 for detailed footage

Weather-Resistant
IP66 water-resistant and dust-tight housing with an operating temperature range of -30 to 50 °C

Day & night surveillance
Built-in IR LED illuminators with 30-meter range for pitch-black areas

Wide Dynamic Range
Improved image quality in high-contrast conditions with WDR

PoE Capable
Supports 802.3af PoE for flexible and simple installation

Storage options
Equipped with a microSD card slot anda ONVIF compatibility for local storage to device or recording equipment.

LowLight+
Optimised for increased image quality in low-light environments

Free Video Management Software
Free D-ViewCam software to take snapshots, video clips and save them to a local hard drive

High quality videos, whatever the lighting
Video resolutions of up to 1920 x 1080 provide incredibly detailed videos while noise reduction, WDR and superior low light performance dramatically improve image quality, even in challenging lighting conditions.

Viewing Angles
(H) 106.8°
(V) 58°
(D) 126°

18x Digital Zoom
Zoom in to see more details in areas of interest

Versatile Monitoring in All Environments.

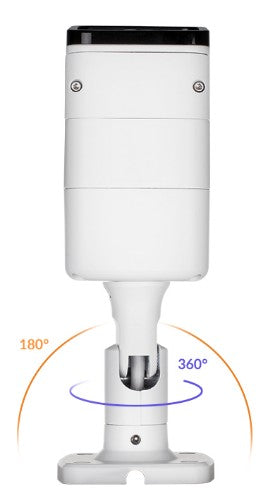

The IP66-rated water and dust-resistant design make this camera ideal for deployment in all weather conditions. The adjustable mount allows the camera to be quickly and easily positioned to get the best field of view.

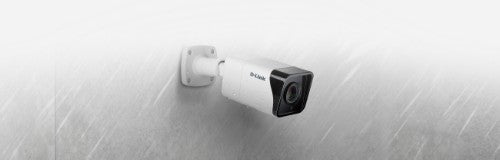

Weather-resistant
Withstands rain and moisture, with a wide operating temperature range of -30°C to 50°C.

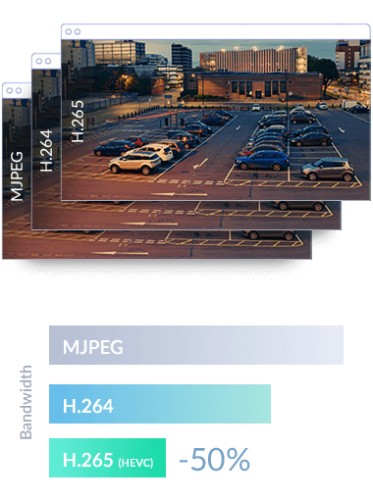

Optimising Bandwidth and Storage
To maximise bandwidth efficiency and improve image quality, the DCS-4712E provides real-time video compression using the H.265, H.264 and MJPEG codecs, supporting three separate profiles for simultaneous video streaming and recording.

Flexible Connectivity
Built-in 802.3af-compliant PoE support simplifies installation by providing power and networking connectivity over a single standard network cable.

Optional recording to an NVR, VMS or NAS system
Support for ONVIF Profile S lets you easily record video streams to your ONVIF compliant NVR, VMS or NAS system for centralized viewing or continuous, 24/7 recording.

Specifications

Performance
Infrared (IR) cut-off filter	Yes
Remote viewing	Yes
Type	IP security camera
Connectivity technology	Wired
Placement supported	Outdoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Maximum operating distance	30 m
Certification	CE, FCC, RCM
Design
Weatherproof	Yes
Form factor	Bullet
Product colour	White
Mounting type	Ceiling
Protection features	Dust resistant, Water resistant, Waterproof
International Protection (IP) code	IP66
Camera
Minimum illumination	0.05 lx
White balance	Auto
Lens viewing angle, horizontal	106.8°
Lens viewing angle, vertical	58°
Lens viewing angle, diagonal	126°
Progressive scan	Yes
Image sensor
Number of effective pixels (H x V)	1920 x 1080 pixels
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Number of sensors	1
Lens system
Maximum aperture number	2
Closest focusing distance	0.5 m
Zoom capability	Yes
Digital zoom	18x
Focal length range	2.8 mm
Night vision
Night vision	Yes
LED type	IR
Video
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Time stamp overlay	Yes
Text caption overlay	Yes
Gain control type	Auto
Maximum resolution	1920 x 1080 pixels
Supported graphics resolutions	1920 x 1080 (HD 1080)
Supported video modes	1080p
Video compression formats	H.264, H.265, M-JPEG
Frame rate	30 fps
Total megapixels	2 MP
Video recording	Yes
Network
Bluetooth	No
Ethernet interface type	10 Gigabit Ethernet, 100 Gigabit Ethernet
Networking standards	IEEE 802.3af
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	IPv4, HTTP/HTTPS, RTSP/RTP/RTCP, TCP, UDP, DHCP, DNS, DDNS, NTP, FTP, SMTP Client, ONVIF Profile S compliant, ARP, ICMP, PPPoE, SNMP v1/v2c/v3
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Ports & interfaces
Connectivity technology	Wired
Security
Alert notification type	E-mail, Snapshot alert message
Video motion detection	Yes
Security algorithms	HTTPS
HTTPS encryption	Yes
Management features
Reset button	Yes
Power
Power source type	AC, DC, PoE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	8 W
DC output voltage	12
DC output current	1.5 A
Certificates
Certification	CE, FCC, RCM
Operational conditions
Operating temperature (T-T)	-30 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%
System requirements
Windows operating systems supported	Windows 10
Weight & dimensions
Width	187.6 mm
Depth	64 mm
Height	64 mm
Weight	500 g
Packaging content
Number of cameras	1
Other features
Video compression formats	H.264, H.265, M-JPEG
Logistics data
Harmonized System (HS) code	85258900
