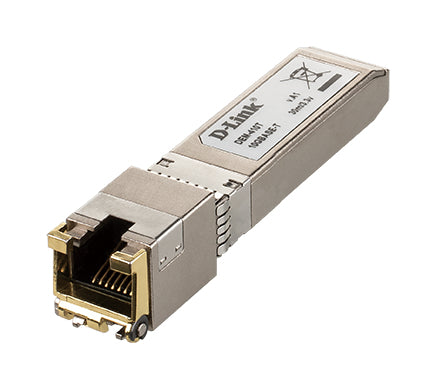

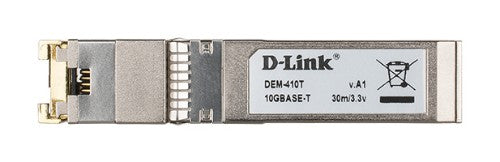

SFP+ 10GBASE‑T Copper Transceiver
Description
The 10GBASE-T SFP+ transceiver module delivers the flexibility and port density well known to the SFP+ form-factor, utilising Cat 6a UTP structured cabling for network connectivity. It is a power-optimised solution for lengths up to 30m, engineered to deliver a minimum power saving of at least 0.5W per port compared to an equivalent embedded 10GBASE-T RJ45 for the same length (Cat 6a, up to 30m). These power savings can add-up in ToR, mid-row and end-of-row switch connectivity.
It’s the alternative compared with standard SFP+ SR/LR fibre optics, which uses standard-based technology with the familiar RJ45 connector and provides backward compatibility with legacy networks.
Specifications
| Performance |
|---|
| SFP transceiver type |
Copper |
| Ethernet LAN |
Yes |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10000 Mbit/s |
| Networking standards |
IEEE 802.3ab, IEEE 802.3an |
| Maximum transfer distance |
30 m |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet interface type |
10 Gigabit Ethernet |
| SFP transceiver standard |
T |
| Fiber ethernet cabling technology |
10GBASE, 1000BASE |
| Product colour |
Gold, Silver |
| Mean time between failures (MTBF) |
217186 h |
| Harmonized System (HS) code |
85369010 |
| Features |
|---|
| Product colour |
Gold, Silver |
| Mean time between failures (MTBF) |
217186 h |
| Certification |
CE, FCC, VCCI |
| Safety |
LVD |
| Power |
|---|
| Input voltage |
3.3 V |
| Certificates |
|---|
| Certification |
CE, FCC, VCCI |
| Safety |
LVD |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
| Network |
|---|
| SFP transceiver type |
Copper |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10000 Mbit/s |
| Networking standards |
IEEE 802.3ab, IEEE 802.3an |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet interface type |
10 Gigabit Ethernet |
| Weight & dimensions |
|---|
| Width |
13.7 mm |
| Depth |
68 mm |
| Height |
8.5 mm |
| Weight |
20 g |
| Package width |
74 mm |
| Package depth |
131 mm |
| Package height |
49 mm |
| Package weight |
64 g |
| Packaging data |
|---|
| Package width |
74 mm |
| Package depth |
131 mm |
| Package height |
49 mm |
| Package weight |
64 g |
| Technical details |
|---|
| Ethernet LAN |
Yes |
| Harmonized System (HS) code |
85369010 |
| Shipping (inner) case width |
26 cm |
| Shipping (inner) case net weight |
3.2 kg |
| Shipping (inner) case length |
36 cm |
| Shipping (inner) case height |
31 cm |
| Products per shipping (inner) case |
50 pc(s) |
| Products per pallet (sea) |
3000 pc(s) |
| Products per pallet (air) |
3000 pc(s) |
| Pallet gross width |
122 cm |
| Pallet gross length |
102 cm |
| Pallet height (sea) |
199 cm |
| Pallet height (air) |
199 cm |
| Pallet gross weight (sea) |
272 kg |
| Pallet gross weight (air) |
272 kg |
| Master (outer) cases per pallet (sea) |
60 pc(s) |
| Master (outer) cases per pallet (air) |
60 pc(s) |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85369010 |
| Shipping (inner) case width |
26 cm |
| Shipping (inner) case net weight |
3.2 kg |
| Shipping (inner) case length |
36 cm |
| Shipping (inner) case height |
31 cm |
| Products per shipping (inner) case |
50 pc(s) |
| Products per pallet (sea) |
3000 pc(s) |
| Products per pallet (air) |
3000 pc(s) |
| Pallet gross width |
122 cm |
| Pallet gross length |
102 cm |
| Pallet height (sea) |
199 cm |
| Pallet height (air) |
199 cm |
| Pallet gross weight (sea) |
272 kg |
| Pallet gross weight (air) |
272 kg |
| Master (outer) cases per pallet (sea) |
60 pc(s) |
| Master (outer) cases per pallet (air) |
60 pc(s) |
| Shipping (inner) case gross weight |
4.2 kg |
