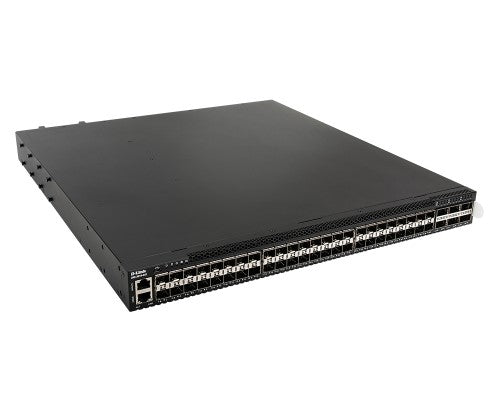

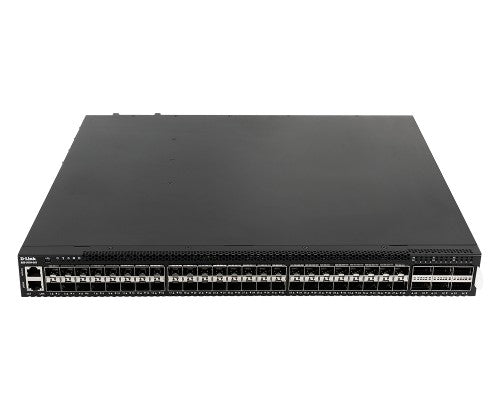

L3, Stackable, Managed, 2.16 Tbps, 1607.44 Mpps, 48 x 10 GbE SFP+, 6 x 100G QSFP+, 1U
Key Features
- High port density: 48 x 10 GbE SFP+, 6 x 100G QSFP+ ports
- Stack up to 12 switches (up to 1.2 Tbps stacking bandwidth)
- OpenFlow 1.3 compliance for SDN-enabled network compatibility
- Modular PSU (1+1) and fan (N+1) with load sharing capabilities
- Switch locator LED and ID tag for maintenance convenience
- Upgradable license for full L3 and MPLS applications
Description
OpenFlow Switching that Stacks Above the CompetitionThe DXS-3610 Layer 3 Stackable 10G/100G Managed OpenFlow Switches are compatible with SDN-enabled network architecture for deployment in high-performance datacenter, enterprise, and campus applications. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption. Stackable up to 12 units and high port density makes the DXS-3610 the ideal choice for future-proofing your aggregation/core network.
High AvailabilityThe DXS-3610 Series boasts high-performance 10G Ethernet switching capacity of up to 2.16 Tbps with forwarding rates of up to 1607 Mpps.

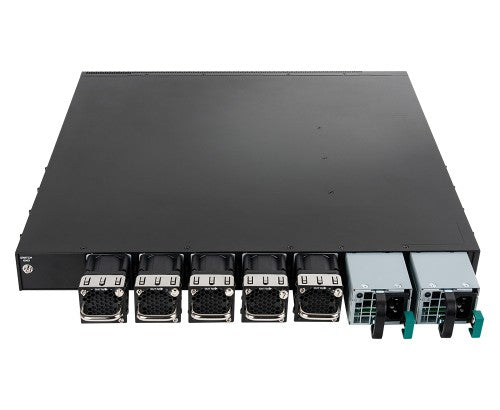

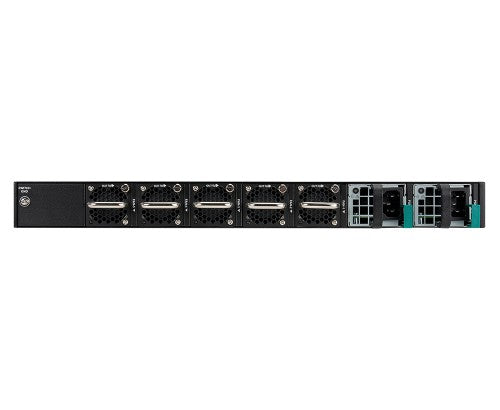

Hot-Swappable RedundancyThe DXS-3610 Series also features a modular fan back-up design, providing n+1 redundancy for the system. The modular power design allows either AC or DC power sources for maximum deployment flexibility. With dual power modules, the power load is distributed, extending the lifetime of the modules.
Robust and Versatile Stacking CapabilityStack up to 12 DXS-3610 switches with up to a total of 1200G (1.2T) stacking bandwidth. Perfect for small to medium-sized data centers in enterprise or campus applications using leaf-spine or top-of-rack (ToR) architecture.
Simplified DeploymentRemotely activate the front panel LED indicator to rapidly locate the DXS-3610 in your data center or server room that requires extra attention.
Enhanced Manageability for Peace of MindFor more complex network infrastructures, D-View 7, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience.
Specifications
| Management features |
|---|
| Multicast support |
Yes |
| ARP inspection |
Yes |
| Switch layer |
L3 |
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Network |
|---|
| IGMP snooping |
Yes |
| Networking standards |
IEEE 802.1D, IEEE 802.1s, IEEE 802.1w |
| Full duplex |
Yes |
| Head-of-line (HOL) blocking |
Yes |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| IP routing |
Yes |
| Flow control support |
Yes |
| 10G support |
Yes |
| Half duplex |
Yes |
| Virtual LAN features |
MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Virtual LAN features |
MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN |
| Performance |
|---|
| Stackable |
Yes |
| Packet buffer memory |
32 MB |
| Virtual stacking (units) |
32 |
| Noise level |
79.4 dB |
| Mean time between failures (MTBF) |
94262 h |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
48 |
| QSFP+ module slots quantity |
6 |
| Basic switching RJ-45 Ethernet ports type |
No |
| Console port |
RJ-45 |
| USB 2.0 ports quantity |
1 |
| Data transmission |
|---|
| Jumbo frames |
9436 |
| MAC address table |
288000 entries |
| Switching capacity |
2160 Gbit/s |
| Jumbo frames support |
Yes |
| Packet buffer memory |
32 MB |
| Static route |
Yes |
| Forwarding rate |
1607.04 Mpps |
| Security |
|---|
| BPDU filtering/protection |
Yes |
| SSH/SSL support |
Yes |
| MAC address filtering |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| Queue scheduling algorithms |
Weighted Round Robin (WRR) |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| Rack mounting |
Yes |
| Stackable |
Yes |
| Product colour |
Black |
| Form factor |
1U |
| Number of fans |
5 fan(s) |
| Power |
|---|
| Power consumption (max) |
320.8 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (typical) |
120.6 W |
| Redundant power supply (RPS) support |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Heat dissipation |
1083 BTU/h |
| Weight & dimensions |
|---|
| Width |
441 mm |
| Depth |
487.4 mm |
| Height |
43.5 mm |
| Weight |
9.8 kg |
