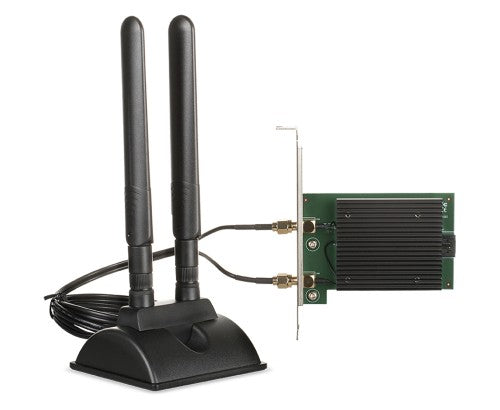

Wi-Fi 6, Bluetooth 5.1, 121 x 79 x 25 mm, 87 g
Key Features
- Enhanced data speeds up to 2.7x faster than previous standards
- Multiple adjustable antennas ensure high speeds and unbroken connections
- Magnetized antenna base allows fine-tuning of antenna positioning, while keeping it firmly secured in place once set
- Easy installation, fits into any standard PCIe interface
- Headphones, mice, keyboards and even game controllers stay reliably connected thanks to Bluetooth 5.1
- Supports WPA3 encryption — the latest Wi-Fi security for greater protection
- Heatsink maintains optimal operating temperatures even when the heat is on
Description
Superior Reception That Cuts Through The Chatter

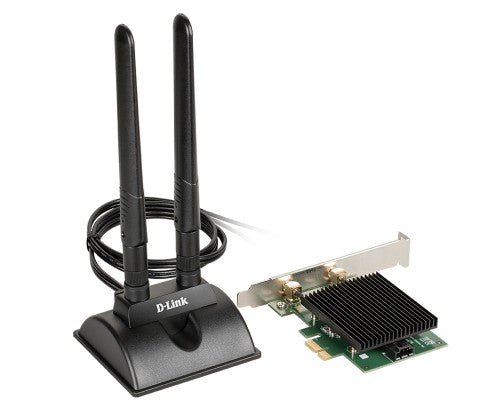

Empowered by two state-of-the-art multi-directional antennas, the DWA-X3000 was designed for maximum coverage. Easily adjust antenna positioning thanks to the magnetized base, attaching anywhere to your desktop PC for the best reception.
Dizzying Speeds, Even In Busy Homes
The DWA-X3000 primes your desktop PC to fully utilize your Wi-Fi 6 router, guaranteeing higher throughput and more efficient transmission for smooth 4K streaming, lag-free gaming and super-fast downloads.
But that’s not all! Get on the Wi-Fi 6 highway: the 160 MHz channel. Drastically increases throughput, while relegating high latency to the past.
A Truly Wireless Environment with Bluetooth 5.1
Effortlessly upgrade to Bluetooth 5.1, quadrupling range and doubling transfer speeds (versus 4.2). Easily connect all your capable devices—game controllers, headphones and keyboards—for a truly wireless experience.
No Detail Overlooked

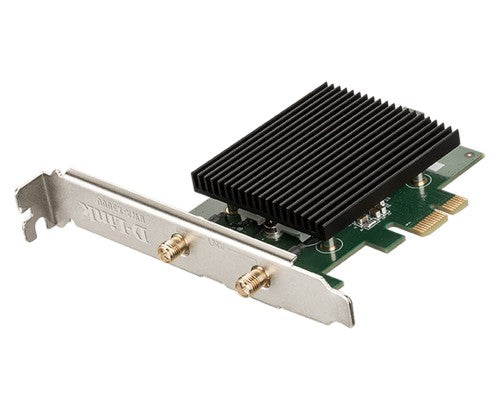

With a full-height and low-profile bracket as standard, easy and flexible installation is a given. Meanwhile a specialized heatsink means the DWA-X3000 keeps its cool, even in the heat of the moment, extending product life.
The Latest Wireless Encryption
WPA3 - The latest 128-bit industry standard Wi-Fi encryption bolsters
your network with more protection for you and your devices.
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| Connectivity technology |
Wireless |
| Host interface |
PCI Express |
| Interface |
WLAN / Bluetooth |
| Bandwidth |
|---|
| Maximum data transfer rate |
2402 Mbit/s |
| Wireless LAN features |
|---|
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Antenna |
|---|
| Antenna |
Yes |
| Network |
|---|
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Maximum data transfer rate |
2402 Mbit/s |
| Wi-Fi |
Yes |
| Bluetooth version |
5.1 |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Security algorithms |
64-bit WEP, 128-bit WEP |
| Bluetooth |
Yes |
| Design |
|---|
| Internal |
Yes |
| Product colour |
Black |
| Antenna |
Yes |
| Certification |
CE, FCC, IC |
| Component for |
PC |
| Antenna design |
External |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10 x64 |
| Linux operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 65 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Width |
79 mm |
| Depth |
25 mm |
| Height |
121 mm |
| Weight |
87 g |
| Performance |
|---|
| Security algorithms |
64-bit WEP, 128-bit WEP |
| Windows operating systems supported |
Windows 10 x64 |
| Linux operating systems supported |
Yes |
| Certificates |
|---|
| Certification |
CE, FCC, IC |
| Other features |
|---|
| Bluetooth version |
5.1 |
| Bluetooth |
Yes |
