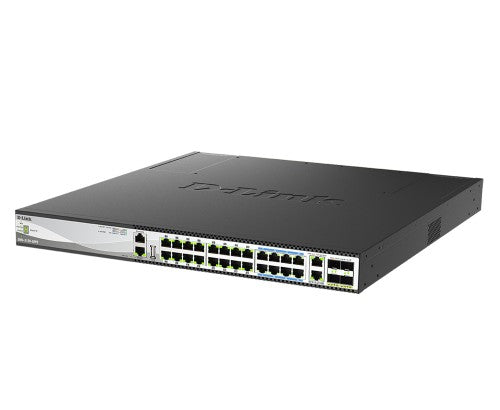

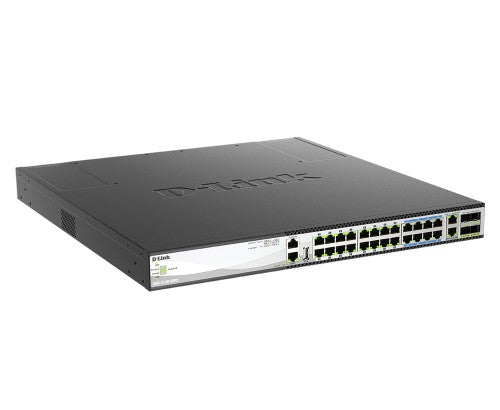

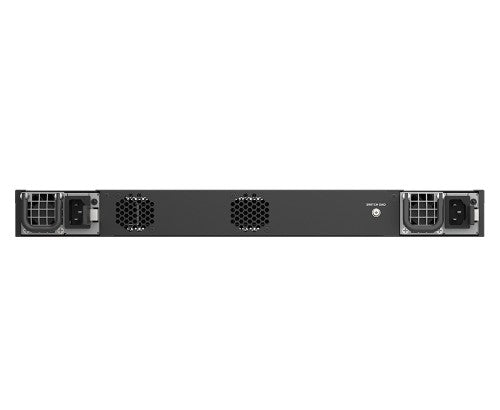

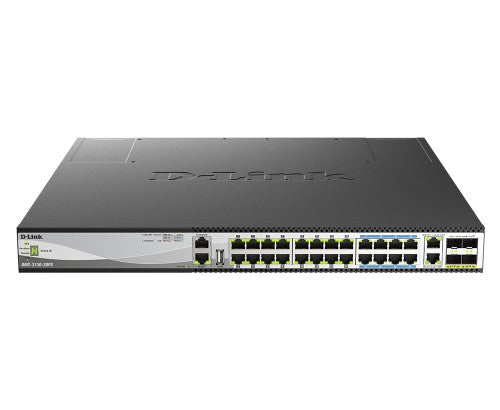

30-Port Layer 3 Stackable Multi-Gigabit Managed PoE Switch
Description
The DMS-3130 Series is a range of Layer 3 Stackable Managed Switches designed to connect end-users in a secure enterprise or metro Ethernet access network. These switches support both multicasting and enhanced security, making them an ideal multi-Gigabit access layer solution. The DMS-3130 Series has PoE and non-PoE models equipped with multi-Gigabit Ethernet and SFP network connection options. The DMS-3130 Series includes models equipped with multiGigabit Ethernet and SFP28 network connection options. The DMS-3130-30PS provides 16 PoE ports using 802.3af and 802.3at, and 8 ports using 802.3bt 60W PoE standards with default power budgets of 740 watts and the potential to be expanded to 960 watts with dual power supplies. Each model boasts 2 10GBASE-T ports and 4 10/25G SFP28 ports to provide versatility and speed. This series is also equipped with a USB 2.0 port, allowing users to boot images and upload configuration files directly from, as well as conveniently save syslog files to a USB 2.0 storage device.
Specifications
| Management features |
|---|
| Switch layer |
L3 |
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
26 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| Console port |
RJ-45 |
| USB 2.0 ports quantity |
1 |
| SFP28 ports quantity |
4 |
| Network |
|---|
| Networking standards |
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| Number of VLANs |
4000 |
| Head-of-line (HOL) blocking |
Yes |
| VLAN support |
Yes |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| 10G support |
Yes |
| Virtual LAN features |
MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Voice VLAN |
| IGMP snooping |
Yes |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Data transmission |
|---|
| MAC address table |
32768 entries |
| Switching capacity |
400 Gbit/s |
| Number of queues |
8 |
| Jumbo frames support |
Yes |
| Packet buffer memory |
4 MB |
| Forwarding rate |
298 Mpps |
| Number of VLANs |
4000 |
| Security |
|---|
| Loop protection |
Yes |
| Authentication |
Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication |
| SSH/SSL support |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| Authentication type |
IEEE 802.1x, RADIUS, TACACS+ |
| Access Control List (ACL) ingress |
3072 |
| Access Control List (ACL) egress |
1024 |
| DHCP features |
DHCP guarding, DHCP server, DHCP snooping |
| Multicast features |
|---|
| Multicast support |
Yes |
| Protocols |
|---|
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Design |
|---|
| Rack mounting |
Yes |
| Stackable |
Yes |
| Product colour |
Black |
| Form factor |
1U |
| Number of fans |
2 fan(s) |
| Certification |
FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI |
| Performance |
|---|
| Physical stacking (units) |
9 |
| Virtual stacking (units) |
32 |
| Mean time between failures (MTBF) |
277222.63 h |
| Stackable |
Yes |
| Packet buffer memory |
4 MB |
| Power |
|---|
| Power consumption (max) |
1211.5 W |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Redundant power supply (RPS) support |
Yes |
| Power source |
AC/DC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet plus (PoE+) ports quantity |
16 |
| Total Power over Ethernet (PoE) budget |
740 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity |
8 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
4137.73 BTU/h |
| Virtual LAN features |
|---|
| Number of VLANs |
4000 |
| VLAN support |
Yes |
| Virtual LAN features |
MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Voice VLAN |
| Weight & dimensions |
|---|
| Width |
440 mm |
| Depth |
470 mm |
| Height |
44 mm |
| Weight |
6.54 kg |
| Certificates |
|---|
| Certification |
FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI |
| Mobile network |
|---|
| GARP VLAN Registration Protocol (GVRP) |
Yes |
