1000BaseT to 1000BaseLX (SC) Singlemode Media Converter
Description
This Media Converter can be used by itself or installed in a chassis and converts between 1000BASE-T Gigabit twisted-pair signals to 1000BASE-LX Gigabit single-mode fibre signals.

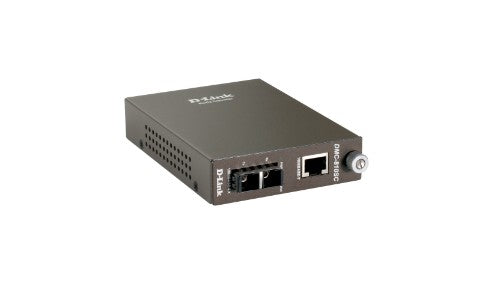

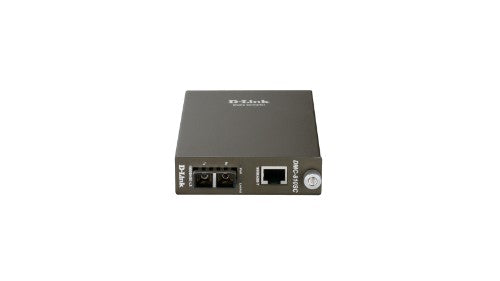

The DMC-810SC converts 1000BASE-T Gigabit twisted-pair signals to 1000BASE-LX Gigabit single-mode fibre signals. Maximum fibre cable distance is 10 km. 1 RJ-45 port and 1 fibre port (SC type connector) are provided.

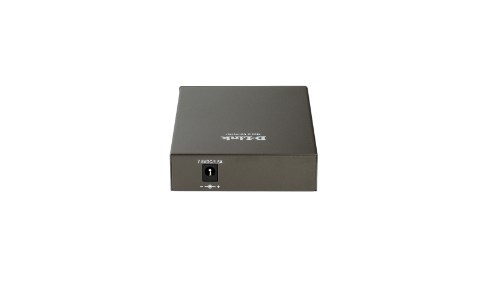

The DMC-700SC can be used as stand-alone device or as a module installed in the DMC-1000 chassis. The media converter is housed in a solid metal case and comes with status LEDs and an external AC power adapter. If you install it in the DMC-1000 chassis, remove its metal case and slide its PC board into an open slot in chassis. In this application, the chassis provides power for all media converters inside it, and the media converter’s own external AC power adapter will not be necessary.
Specifications
| Network |
|---|
| Store-and-forward |
Yes |
| Fiber ethernet cabling technology |
1000BASE‑LX, 1000BASE‑SX |
| Maximum data transfer rate |
2000 Mbit/s |
| Converter input interface |
1000Base-T |
| Cabling technology |
RJ-45 |
| Networking standards |
IEEE 802.3ab, IEEE 802.3z |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Duplex system |
Full |
| Converter output interface |
1000Base-LX, 1000Base-SX |
| Auto MDI/MDI-X |
Yes |
| Fiber optic connector |
SC |
| Performance |
|---|
| Wavelength |
1310 nm |
| Maximum transfer distance |
20000 m |
| Store-and-forward |
Yes |
| Features |
|---|
| Internal |
No |
| LED indicators |
Yes |
| Product colour |
Black |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber optic connector |
SC |
| DC-in jack |
Yes |
| Power |
|---|
| Input voltage |
5 V |
| Input current |
1 A |
| Weight & dimensions |
|---|
| Width |
120 mm |
| Depth |
88 mm |
| Height |
25 mm |
| Weight |
302 g |
| Package width |
208 mm |
| Package depth |
274 mm |
| Package height |
68 mm |
| Package weight |
772.4 g |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-25 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Packaging data |
|---|
| Package width |
208 mm |
| Package depth |
274 mm |
| Package height |
68 mm |
| Package weight |
772.4 g |
| Design |
|---|
| Internal |
No |
| LED indicators |
Yes |
| Product colour |
Black |
| Certification |
FCC Class A
CE Class A
VCCI Class A |
| Technical details |
|---|
| Shipping (inner) case width |
29.1 cm |
| Shipping (inner) case net weight |
6.98 kg |
| Shipping (inner) case length |
37 cm |
| Shipping (inner) case height |
45.2 cm |
| Products per shipping (inner) case |
10 pc(s) |
| Products per pallet (sea) |
440 pc(s) |
| Products per pallet (air) |
330 pc(s) |
| Pallet gross width |
120 cm |
| Pallet gross length |
110 cm |
| Pallet height (sea) |
194.3 cm |
| Pallet height (air) |
149.1 cm |
| Pallet gross weight (sea) |
390.7 kg |
| Pallet gross weight (air) |
297.5 kg |
| Master (outer) cases per pallet (sea) |
44 pc(s) |
| Master (outer) cases per pallet (air) |
33 pc(s) |
| Harmonized System (HS) code |
85176990 |
| Certificates |
|---|
| Certification |
FCC Class A
CE Class A
VCCI Class A |
| Logistics data |
|---|
| Shipping (inner) case width |
29.1 cm |
| Shipping (inner) case net weight |
6.98 kg |
| Shipping (inner) case length |
37 cm |
| Shipping (inner) case height |
45.2 cm |
| Products per shipping (inner) case |
10 pc(s) |
| Products per pallet (sea) |
440 pc(s) |
| Products per pallet (air) |
330 pc(s) |
| Pallet gross width |
120 cm |
| Pallet gross length |
110 cm |
| Pallet height (sea) |
194.3 cm |
| Pallet height (air) |
149.1 cm |
| Pallet gross weight (sea) |
390.7 kg |
| Pallet gross weight (air) |
297.5 kg |
| Master (outer) cases per pallet (sea) |
44 pc(s) |
| Master (outer) cases per pallet (air) |
33 pc(s) |
| Shipping (inner) case gross weight |
8.43 kg |
| Harmonized System (HS) code |
85176990 |
| Other features |
|---|
| Cabling technology |
RJ-45 |
| I/O ports |
1000BASE-T, 1000BASE-SX/LX, MDI-II/MDI-X
|
