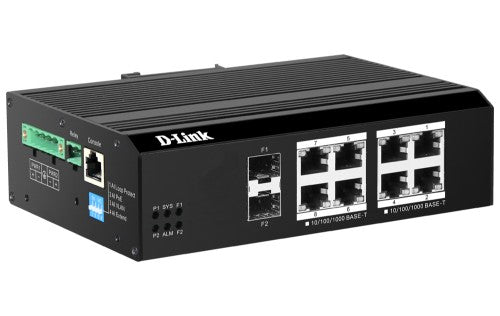

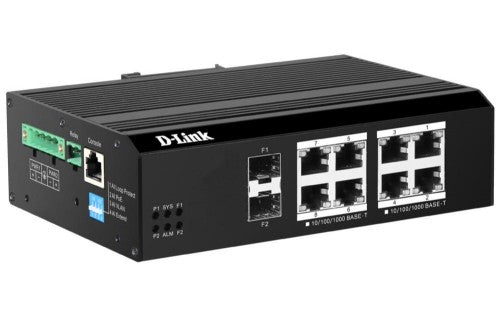

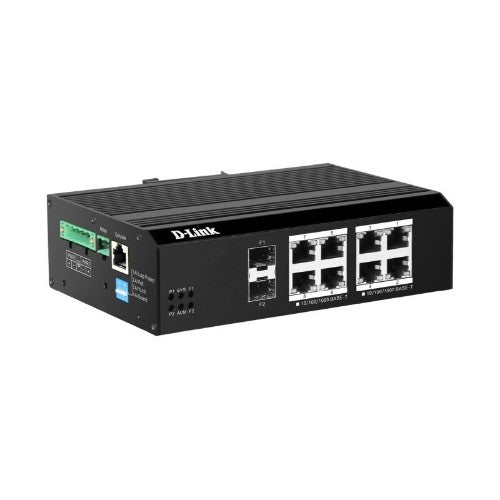

D-Link DIS-F200G-10PS-E network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

10-Port Gigabit Industrial Smart Managed PoE+ Switch with 8 PoE ports and 2 SFP ports

Key Features

• 8 1000BASE-T PoE+ ports and 2 SFP ports
• Long Reach PoE support - up to 250m
• PoE budget is 240 Watts
• Robust and High-Redundancy Design
• DIN Rail mountable
• Fanless, passive cooling design
• High EMC endurance
• 6 kV surge protection on copper ports
• Dual power input for redundant power supplies
• Advanced networking features
• RUN-Ring Technology with <10ms self-healing

Description

The DIS-200G Series Layer 2 Gigabit Industrial Smart Managed Switches are equipped with 4 (DIS-F200G-6PS-E) and 8 (DIS-F200G-10PS-E) PoE+ capable 10/100/1000BASE-T ports and 2 SFP ports. These switches feature a robust design making them ideal for deployment in industrial and outdoor surveillance settings, capable of withstanding the harshest environments. The DIS-F200G Series furthermore integrate advanced management and security functions to provide a complete solution.

Durable and Reliable Design

The DIS-F200G Series switches are housed in a highly resistant metal casing to protect the switches from harsh environments. The high electromagnetic compatibility (EMC) protects the DIS-F200G Series from unwanted electromagnetic interference. Meanwhile, the fanless design extends the life of DIS-F200G Series while also being able to operate in a wider temperature range of up to 75 °C.
For increased flexibility, the DIS-F200G Series can also be mounted on a DIN rail. Additionally, the DIS-F200G Series features 6 kV surge protection to help prevent damage to the switch and connected devices caused by sudden power surges and lightning strikes.

High Redundancy and Reliability

The DIS-F200G Series supports RUN-Ring quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings. Meanwhile, the dual power input allows for a redundant power supply to make sure the network continues to operate in the event of a primary power supply failure.

Traffic Optimization

The DIS-F200G Series supports QoS and Auto Voice VLAN features. This automatically detects surveillance devices and puts them into a dedicated voice VLAN, segmenting their traffic from the rest of the network. This provides the traffic a higher priority through the switch, reducing the chances of voice traffic being delayed.

Easy Troubleshooting

The DIS-F200G Series features network loop detection and cable diagnostics to help network administrators find and solve network problems quickly and easily. Loop detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.

Power over Ethernet Support

The DIS-F200G-10PS-E is a PoE-ready switch with a total PoE budget of 240 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices. Additionally the PoE ports in each switch offer Long Reach PoE technology, allowing the use of longer network cable runs which are normally limited to 100m. The Long Reach PoE technology supports cables up to 250m long. This effectively reduces deployment times, reduces cable clutter, and eliminates the need for dedicated power supplies to allow PoE-devices to be installed in remote locations.

Specifications

Management features
Switch layer	L2
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	RJ-45
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Port mirroring	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Forwarding rate	14.9 Mpps
Design
DIN rail mounting	Yes
Product colour	Black
Housing material	Metal
Power
Power consumption (max)	240 W
Power supply included	No
DC input voltage	48 - 56 V
Power source	DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	240 W
Operational conditions
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	0 - 95%
Heat dissipation	35 BTU/h
Weight & dimensions
Width	159 mm
Depth	105 mm
Height	39 mm
Weight	750 g
Technical details
Compliance certificates	Federal Communications Commission (FCC), RoHS
Certificates
Compliance certificates	Federal Communications Commission (FCC), RoHS
