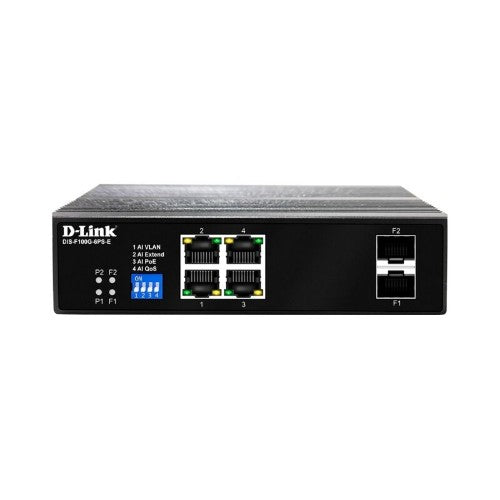

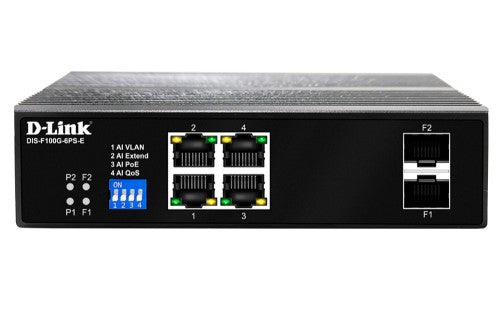

D-Link DIS-F100G-6PS-E network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

6-Port Gigabit Industrial PoE+ Switch with 4 PoE ports and 2 SFP ports

Key Features

• 4 1000BASE-T PoE+ ports and 2 SFP ports
• Long Reach PoE support - up to 250m
• PoE budget is 120 Watts
• Robust and High-Redundancy Design
• DIN Rail mountable
• Fanless, passive cooling design
• High EMC endurance
• 6 kV surge protection on copper ports
• Dual power input for redundant power supplies

Description

The DIS-F100G Series Gigabit Industrial Unmanaged Switches are equipped with a variety of port combinations including 10/100/1000BASE-T PoE+ ports and SFP ports. These switches feature a robust design making them ideal for deployment in industrial and outdoor cabinet surveillance settings, capable of withstanding the harshest environments. In addition, the DIS-F100G Series are Plug-and-Play, allowing for effortless and swift deployment.

Durable, Reliable, and Efficient

The DIS-F100G Series switches are housed in a highly resistant IP40-rated metal casing to protect the switches from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-F100G Series from unwanted effects when operating in environments with strong electromagnetic interference. Meanwhile, the fanless design extends the life of the DIS-F100G Series while also being able to operate in a wide temperature range from -40 °C up to 75 °C. For increased flexibility, the DIS-F100G Series can also be mounted on a DIN rail. In addition, the DIS-F100G Series supports dual power input which allows for a redundant power supply configuration to make sure the switches continue to operate in the event of a primary power supply failure.

Power over Ethernet Support

The PoE-ready DIS-F100G-6PS-E features a total PoE budget of 120 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices leveraging existing conventional Ethernet cabling. Additionally the PoE ports in each switch offer Long Reach PoE technology, allowing the use of longer network cable runs which are normally limited to 100m. The Long Reach PoE technology supports cables up to 250m long. This effectively cuts down deployment times, reduces cable clutter, and eliminates the need for dedicated power supplies to allow PoE-devices to be installed in remote locations.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	RJ-45
Network
Networking standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
MAC address table	8000 entries
Switching capacity	12 Gbit/s
Store-and-forward	Yes
Forwarding rate	8.9 Mpps
Design
Housing material	Metal
Power
Power consumption (max)	126 W
Power supply included	No
DC input voltage	48 - 56 V
Power source	DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	120 W
Operational conditions
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	0 - 95%
Heat dissipation	20 BTU/h
Weight & dimensions
Width	159 mm
Depth	105 mm
Height	39 mm
Weight	700 g
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
