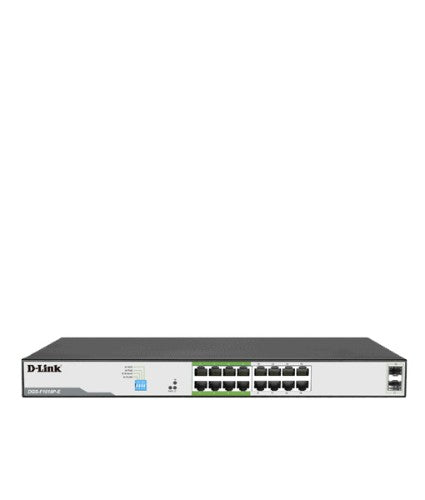

D-Link DGS-F1018P-E network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

36 Gbps, 8K MAC, 16x 1G RJ-45, 2x SFP, VLAN, PoE, 440x180x44 mm

Key Features

• 10/100/1000 Mbps Ethernet ports
• 2 SFP Uplink
• 150 W PoE budget
• Support IEEE802.3af/at up to 30W per port to PoE compatible devices
• Support transmission Data/PoE up to 250m cable length (Port 1-8 with Extend enabled)
• 6KV Lightning protection
• Smart Features: Extend, VLAN, QoS and PoE
• Plug & Play

Description

Built for your Need
Robust and cost-effective PoE solution to provide power for your PoE powered devices such as IP cameras, CCTV, VoIP, AP etc

Up to 250m PoE and Data Transmission
Equipped with PoE extend technology, DGS-F1018P-E have the capability to supply 802.3af/at PoE up to 250m with data transmission. Cost saving for long distance solution

6KV Surge Protection
D-Link 250M is enhanced with 6KV surge protection Effectively guard equipment from lighting damage especially if use on AP/IP camera install outdoor or at higher position

Enhanced with VLAN Function
With a flick of button, Isolate the downlink port to each other can effectively suppress network storms and improve network performance

Enhanced with Video QoS
Improve the Video Packet Priority
Create high priority for video streaming, perfect solution for IP camera/CCTV

Intelligent Detection
Automatically Detect unresponsive PoE device and reboot the device for recovery

Specifications

Management features
Switch layer	L2
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
Networking standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet forwarding rate (1 Gbps)	1488000 pps
MAC address table	8000 entries
Switching capacity	36 Gbit/s
Store-and-forward	Yes
Design
Product colour	Grey
LED indicators	Yes
Power
Power source	PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	16
Total Power over Ethernet (PoE) budget	150 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm
Weight	3 kg
