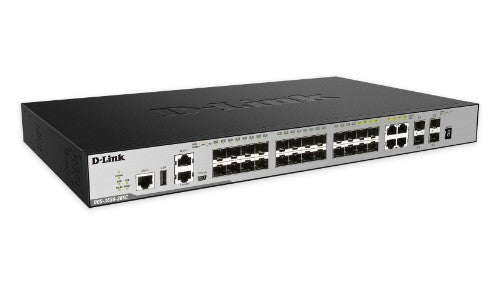

28-Port Layer 3 Stackable Managed Gigabit Switch, w / 4 10GbE Ports
Description
The DGS-3630-28SC Layer 3 Stackable Managed Switch is designed for Small Medium Businesses (SMBs), Small Medium Enterprises (SMEs), larger Enterprises, and ISPs. It features 20 x 100/1000 SFP ports, 4 x 10/100/1000 or SFP combo ports, and 4 x 10GbE SFP+ ports. This switch supports core SMB and SME functionality, such as L2 switching, entry-level routing, L2 multicast, advanced QoS, OAM, and robust security features. With a simple upgrade it can also support full L3 routing for Enterprise integration, including OSPF, BGP, VRF-Lite and L3 multicast.
Specifications
| Management features |
|---|
| Traffic classification |
Yes |
| ARP inspection |
Yes |
| Switch layer |
L3 |
| Switch type |
Managed |
| Web-based management |
Yes |
| System event log |
Yes |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| Ports & interfaces |
|---|
| Installed SFP modules quantity |
20 |
| Installed SFP+ modules quantity |
4 |
| Combo SFP ports quantity |
4 |
| Console port |
RJ-45/Mini-USB |
| USB 2.0 ports quantity |
1 |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Network |
|---|
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex |
Yes |
| Number of VLANs |
4094 |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Routing entries |
16000 |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Broadcast storm control |
Yes |
| 10G support |
Yes |
| Virtual LAN features |
Stacked VLAN, Private VLAN, Tagged VLAN, Port-based VLAN |
| IGMP snooping |
Yes |
| Data transmission |
|---|
| Jumbo frames |
12000 |
| MAC address table |
68000 entries |
| Switching capacity |
128 Gbit/s |
| Throughput |
95.24 Mpps |
| Number of queues |
8 |
| Number of IP interfaces |
256 |
| Jumbo frames support |
Yes |
| Packet buffer memory |
4 MB |
| Number of VLANs |
4094 |
| Security |
|---|
| Loop protection |
Yes |
| BPDU filtering/protection |
Yes |
| Authentication |
Guest VLAN, Port-based authentication |
| SSH/SSL support |
Yes |
| Security algorithms |
802.1x RADIUS, SSH, SSH-2, SSL/TLS |
| MAC address filtering |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP server, DHCP client |
| Multicast features |
|---|
| Multicast support |
Yes |
| Protocols |
|---|
| Management protocols |
SNMP, NTPv3/v4, Telnet |
| Supported network protocols |
IPv4/v6 |
| Design |
|---|
| Rack mounting |
Yes |
| Stackable |
Yes |
| Product colour |
Black |
| Form factor |
1U |
| LED indicators |
Yes |
| Safety |
cUL, CB, CE, CCC, BSM |
| Electromagnetic compatibility |
CE, FCC Class A, C-Tick, VCCI, BSMI, CCC |
| Number of fans |
2 fan(s) |
| Performance |
|---|
| Virtual stacking (units) |
32 |
| Noise level |
56 dB |
| Mean time between failures (MTBF) |
280612 h |
| Stackable |
Yes |
| Packet buffer memory |
4 MB |
| Power |
|---|
| Power consumption (max) |
63.6 W |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Redundant power supply (RPS) support |
Yes |
| Number of power supply units |
1 |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
| Heat dissipation |
217 BTU/h |
| Virtual LAN features |
|---|
| Number of VLANs |
4094 |
| VLAN support |
Yes |
| Virtual LAN features |
Stacked VLAN, Private VLAN, Tagged VLAN, Port-based VLAN |
| Weight & dimensions |
|---|
| Width |
441 mm |
| Depth |
260 mm |
| Height |
44 mm |
| Weight |
3.79 kg |
