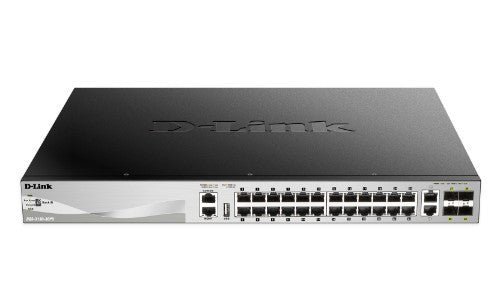

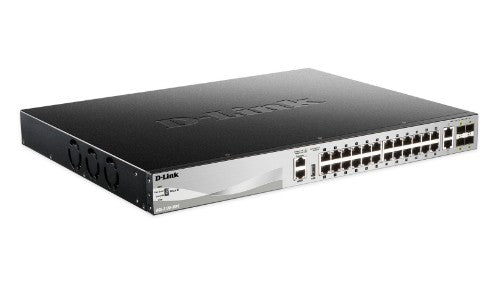

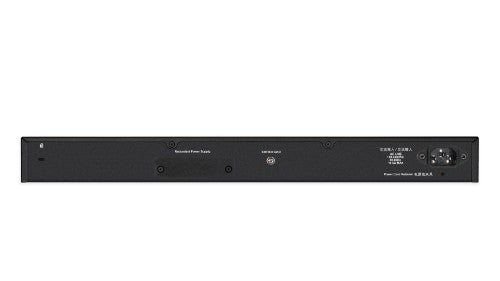

D-Link DGS-3130 Series Gigabit Layer 3 Stackable Managed Switches

24x 10/100/1000BASE-T PoE, 2x 10GBASE-T, 4x 10G SFP+, 168 Gbps, 125 Mpps, PoE, 440 x 350 x 44 mm, 4.66 kg

Description

Greater port density. Powerful Layer 3 features.
Designed for small to medium-sized business networks, the unified software incorporates Layer 2 and Layer 3 features, with 10-Gigabit ports, greater port density thanks to physical stacking, all of which enables the DGS-3130 Series to be deployed in a variety of environments and topologies, including Metro Ethernet deployments.

World-class reliability.
Advanced L2 and L3 features including port security, Storm Control, Spanning Tree Protocols, IGMP/MLD Snooping, and IPv6 ND. Management options like a multilingual web-UI, and industry standard CLI support, with support for multiple images and multiple configurations.

6x 10-Gigabit ports, physical stacking for more ports, and they have built-in G.8032 Ethernet Ring Protection Switching (ERPS) to help minimize recovery times to 50 ms. An USB 2.0 interface to store config files, boot images, and syslog. As well as support for an additional external redundant power supply on all models to ensure maximum uptime.

Comprehensive security.
Includes the latest security such as Multi-layer and Packet Content Access Control Lists (ACL), and Storm Control. And our exclusive D-Link Safeguard Engine has been designed to guard against traffic flooding caused by malicious attacks and protect your business network uptime.

IP-MAC-Port Binding allows you to bind a source IP address with an associated MAC and define the port number to enhance user access control. And DHCP Snooping makes the switch learn IP/MAC pairs by snooping DHCP packets and saving them to the IMPB whitelist, giving you extra control.

Easy Access Control policies.
They feature multiple authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control and an easy deployment. After authentication, individual policies such as VLAN membership, Quality of Service (QoS) policies, and ACL rules can be assigned to each host.

Support for the Microsoft® NAP policy enforcement allows you to protect network assets from compromised computers by enforcing compliance with network health policies.

Versatile traffic management.
A rich set of multi-layer QoS/CoS features ensure that critical network services such as VoIP, video conferences, IPTV, and IP surveillance are always given high priority, and 10-Gigabit ports deliver the speed you need. Traffic Shaping features guarantee bandwidth for these services even when the network is busy. L2 Multicast support enables the DGS-3130 Series to handle growing IPTV applications.

Host-based IGMP/MLD Snooping allows multiple multicast subscribers per physical interface while ISM VLAN allows the switches to send multicast streams in a multicast VLAN to save bandwidth, and to provide better security to the backbone network. The ISM VLAN profiles allow you to bind or replace the pre-defined multicast registration information to subscriber ports quickly and easily. Selective Q-in-Q enables you to be selective over VLAN traffic.

PoE+ with budgets up to 740W
The 30PS and 54PS models have 370W PoE power budgets. Or utilise a total of 740W when adding a redundant power supply.

Specifications

Management features
ARP inspection	Yes
Switch layer	L3
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	RFC 1213; RFC 4188; RFC 1157, 2571-2576; RFC 1907; RFC 1757, 2819; RFC 2021; RFC 1398, 1643, 1650, 2358, 2665; RFC 2674 802.1p 2233, 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674, 4363; RFC 1065, 1066, 1155, 1156, 2578; RFC 1215; RFC 1212; RFC 1215; RFC 1157, 2571-2576; RFC 4022; RFC 4113; RFC 4293; RFC 2737
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	RJ-45
Gigabit Ethernet (copper) ports quantity	24
USB 2.0 ports quantity	1
Fiber optic connector	SFP+
Power connector	AC-in jack
10G Ethernet (copper) ports quantity	2
Copper ethernet cabling technology	10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
Number of VLANs	4094
Copper ethernet cabling technology	10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	Yes
Fast leave	Yes
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
IGMP snooping	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
MLD entries	1024
IGMP entries	128
Data transmission
MAC address table	16384 entries
Switching capacity	168 Gbit/s
Number of queues	8
Jumbo frames support	Yes
Packet buffer memory	2 MB
Forwarding rate	125 Mpps
Number of VLANs	4094
Multicast Listener Discovery (MLD) snooping	Yes
Security
Loop protection	Yes
BPDU filtering/protection	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
Static port security	Yes
SSH/SSL support	Yes
Security algorithms	SNMP, SNMPv3, SSH-2, SSL/TLS
IGMP snooping	Yes
Access Control List (ACL)	Yes
Root protection	Yes
Password protection	Yes
DoS attack prevention	Yes
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR), Weighted random early detection (WRED)
Access Control List (ACL) ingress	2048
Access Control List (ACL) egress	512
IGMP entries	128
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping
Multicast features
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Yes
MLD entries	1024
Multicast features	Controllable multicast
Protocols
GARP VLAN Registration Protocol (GVRP)	Yes
Routing protocols	RIP
IP Source Guard (IPSG)	Yes
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Black, Grey
LED indicators	Yes
Safety	CB, cUL, BSMI, CCC
Number of fans	3 fan(s)
Performance
Physical stacking (units)	9
Virtual stacking (units)	32
Noise level	53.4 dB
Mean time between failures (MTBF)	409054 h
Telnet	Yes
Dying Gasp	Yes
sFlow	Yes
Stackable	Yes
Packet buffer memory	2 MB
Harmonized System (HS) code	85176990
Power
Power consumption (max)	471.67 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Redundant power supply (RPS) support	Yes
Power source	AC/PoE
Power connector	AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	370 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	1609.41 BTU/h
Virtual LAN features
Number of VLANs	4094
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Weight & dimensions
Width	440 mm
Depth	350 mm
Height	44 mm
Weight	4.66 kg
Packaging data
Package width	450 mm
Package depth	595 mm
Package height	118 mm
Package weight	6.32 kg
Optical fiber
Fiber optic connector	SFP+
Technical details
Telnet	Yes
Dying Gasp	Yes
Harmonized System (HS) code	85176990
Shipping (inner) case width	37.4 cm
Shipping (inner) case net weight	19.5 kg
Shipping (inner) case length	46.8 cm
Shipping (inner) case height	62.6 cm
Products per shipping (inner) case	3 pc(s)
Products per pallet (sea)	54 pc(s)
Products per pallet (air)	54 pc(s)
Pallet gross width	120 cm
Pallet gross length	110 cm
Pallet height (sea)	2.01 m
Pallet height (air)	2.01 m
Pallet gross weight (sea)	399.8 kg
Pallet gross weight (air)	399.8 kg
Master (outer) cases per pallet (sea)	18 pc(s)
Master (outer) cases per pallet (air)	18 pc(s)
Shipping (inner) case gross weight	21.2 kg
Compliance certificates	BSMI, CB, CCC, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cUL
Certificates
Compliance certificates	BSMI, CB, CCC, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cUL
