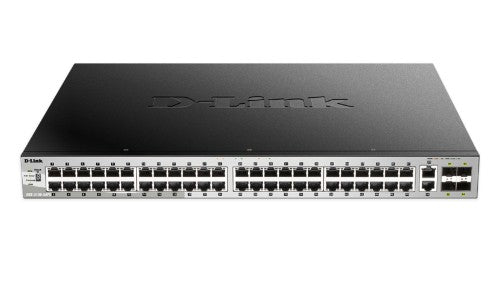

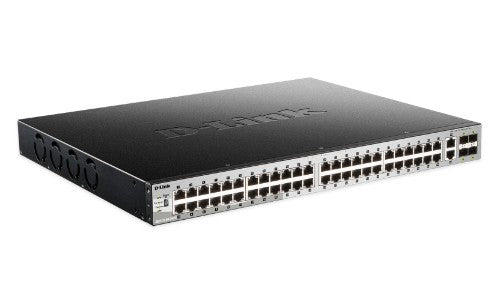

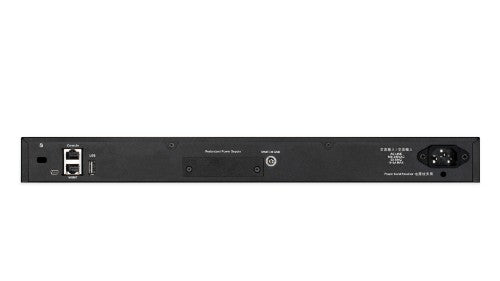

D-Link DGS-3130-54PS Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Grey

48x 10/100/1000BASE-T PoE, 2x 10GBASE-T, 4x 10G SFP+, USB 2.0, 216 Gbps, 161 Mpps, 440 x 350 x 44 mm, 5.14 kg

Description

The DGS-3130 Series is a range of Lite Layer 3 Stackable Managed Switches designed to help connect end-users in a secure enterprise or metro Ethernet access network. These switches support multicast and enhanced security features, making them an ideal Gigabit access layer solution. The DGS-3130-30TS/54TS provide 24 or 48 10/100/1000 Mbps Gigabit Ethernet ports. The DGS-3130-30PS/54PS provide 24 or 48 10/100/1000 Mbps Power over Ethernet (PoE) Gigabit Ethernet ports. The DGS-3130-30S/54S provide 24 or 48 SFP Gigabit Ethernet ports. Each 10/100/1000 Mbps port on the DGS-3130-30PS/54PS supports the IEEE 802.3af and IEEE 802.3at PoE standards. The default power budget for these models is 370 watts and can be expanded to 740 watts with the DPS-700 redundant power supply. The switches are also equipped with a USB 2.0 port, allowing the user to boot images and upload configuration files directly, as well as conveniently save syslog files to an USB 2.0 storage device.

Enhanced Network Reliability
The DGS-3130 Series targets enterprises and metro Ethernet applications, and customers who require a high level of network security and maximum uptime. All the models in the DGS-3130 Series support an external redundant power supply to ensure continued operation. In addition, these switches incorporate essential reliability features to enhance network resilience, including 802.1D Spanning Tree (STP), 802.1w Rapid Spanning Tree (RSTP), and 802.1s Multiple Spanning Tree (MSTP), Loopback Detection (LBD), and Broadcast Storm Control. ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) minimizes the recovery time to 50 ms. For load sharing and redundancy backup in a switch cascading/server attachment configuration, the DGS-3130 Series provides dynamic 802.3ad Link Aggregation Port Trunking.

Comprehensive Security Features
The DGS-3130 Series provides users with security features such as Multi-layer and Packet Content Access Control Lists (ACL), Storm Control, and IP-MAC-Port Binding (IMPB) with DHCP Snooping. The IP-MAC-Port Binding feature allows administrators to bind a source IP address with an associated MAC and define the port number to enhance user access control. With the DHCP Snooping feature, the switch automatically learns IP/MAC pairs by snooping DHCP packets and saving them to the IMPB white list.

Easy Access Control Policies
The DGS-3130 Series supports authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control and easy deployment. After authentication, individual policies such as VLAN membership, QoS policies, and ACL rules can be assigned to each host. In addition, the switch also supports Microsoft® NAP (Network Access Protection). NAP is a policy enforcement technology that helps customers protect network assets from compromised computers by enforcing compliance with network health policies.

Power over Ethernet Support
The DGS-3130-30PS and DGS-3130-54PS support industry standard IEEE 802.3at power over Ethernet across all Gigabit copper ports. They feature a total power budget of 370 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices. The PoE power budget can be increased to 740 W when the DPS-700 redundant power supply is used in conjunction. Power over Ethernet helps simplify deployment of surveillance devices and access point infrastructures by reducing cable clutter, eliminating the need for dedicated power supplies, and allowing PoE devices to be installed in remote locations.

Versatile Traffic Management
The DGS-3130 Series implements a rich set of multi-layer QoS/CoS features to help ensure that critical network services such as VoIP, video conferences, IPTV, and IP surveillance are always given high priority. Traffic Shaping features guaranteed bandwidth for these services when the network is busy. L2 Multicast support enables the DGS-3130 Series to handle growing IPTV applications. Host-based IGMP/MLD Snooping allows multiple multicast subscribers per physical interface while ISM VLAN allows the switches to send multicast streams in a multicast VLAN to save bandwidth and to provide better security to the backbone network. The ISM VLAN profiles allow administrators to bind or replace the pre-defined multicast registration information to subscriber ports quickly and easily.

Lifetime Warranty and NBD Replacement
D-Link offers a Lifetime Warranty and Next Business Day (NBD) hardware replacement on the DGS-3130 Series Lite Layer 3 Stackable Managed Switches to further its commitment to product quality and long-term customer confidence.

Specifications

Management features
ARP inspection	Yes
Switch layer	L3
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	RFC 1213; RFC 4188; RFC 1157, 2571-2576; RFC 1907; RFC 1757, 2819; RFC 2021; RFC 1398, 1643, 1650, 2358, 2665; RFC 2674 802.1p 2233, 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674, 4363; RFC 1065, 1066, 1155, 1156, 2578; RFC 1215; RFC 1212; RFC 1215; RFC 1157, 2571-2576; RFC 4022; RFC 4113; RFC 4293; RFC 2737
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Console port	RJ-45
USB 2.0 ports quantity	1
Fiber optic connector	SFP+
Power connector	AC-in jack
Copper ethernet cabling technology	10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
Number of VLANs	4000
Copper ethernet cabling technology	10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	Yes
Virtual LAN features	Private VLAN, Voice VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLAN
IGMP snooping	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
Data transmission
MAC address table	16384 entries
Switching capacity	216 Gbit/s
Number of queues	8
Jumbo frames support	Yes
Packet buffer memory	4 MB
Forwarding rate	161 Mpps
Number of VLANs	4000
Security
Loop protection	Yes
BPDU filtering/protection	Yes
Authentication	MAC-based authentication, Port-based authentication, Web-based authentication
SSH/SSL support	Yes
Security algorithms	SNMP, SNMPv3, SSH-2, SSL/TLS
IGMP snooping	Yes
Access Control List (ACL)	Yes
Root protection	Yes
Password protection	Yes
DoS attack prevention	Yes
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)
Access Control List (ACL) ingress	2048
Access Control List (ACL) egress	512
DHCP features	DHCP server, DHCP snooping, DHCP relay, DHCP client
Multicast features
Multicast support	Yes
Multicast features	Controllable multicast
Protocols
GARP VLAN Registration Protocol (GVRP)	Yes
Virtual Router Redundancy Protocol (VRRP)	Yes
Routing protocols	RIP
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Black, Grey
LED indicators	Yes
Safety	CB, cUL, BSMI, CCC
Number of fans	4 fan(s)
Certification	FCC A, CE A, VCCI A, IC, RCM, BSMI, CCC
Performance
Physical stacking (units)	9
Virtual stacking (units)	32
Noise level	54.2 dB
Mean time between failures (MTBF)	356876 h
Telnet	Yes
sFlow	Yes
Stackable	Yes
Packet buffer memory	4 MB
Harmonized System (HS) code	85176990
Power
Power consumption (max)	487.26 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Redundant power supply (RPS) support	Yes
Power connector	AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	48
Total Power over Ethernet (PoE) budget	370 W
Other features
I/O ports	2 x 10GBASE-T
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	1662.6 BTU/h
Virtual LAN features
Number of VLANs	4000
VLAN support	Yes
Virtual LAN features	Private VLAN, Voice VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLAN
Weight & dimensions
Width	440 mm
Depth	350 mm
Height	44 mm
Weight	5.14 kg
Packaging data
Package width	450 mm
Package depth	595 mm
Package height	118 mm
Package weight	6.88 kg
Optical fiber
Fiber optic connector	SFP+
Technical details
Telnet	Yes
Harmonized System (HS) code	85176990
Shipping (inner) case width	38 cm
Shipping (inner) case net weight	22.8 kg
Shipping (inner) case length	46.5 cm
Shipping (inner) case height	62 cm
Products per shipping (inner) case	3 pc(s)
Products per pallet (sea)	54 pc(s)
Products per pallet (air)	36 pc(s)
Pallet gross width	120 cm
Pallet gross length	110 cm
Pallet height (sea)	199.5 cm
Pallet height (air)	137.5 cm
Pallet gross weight (sea)	437.2 kg
Pallet gross weight (air)	297.4 kg
Master (outer) cases per pallet (sea)	18 pc(s)
Master (outer) cases per pallet (air)	12 pc(s)
Shipping (inner) case gross weight	23.3 kg
Certificates
Certification	FCC A, CE A, VCCI A, IC, RCM, BSMI, CCC
Mobile network
GARP VLAN Registration Protocol (GVRP)	Yes
Logistics data
Harmonized System (HS) code	85176990
