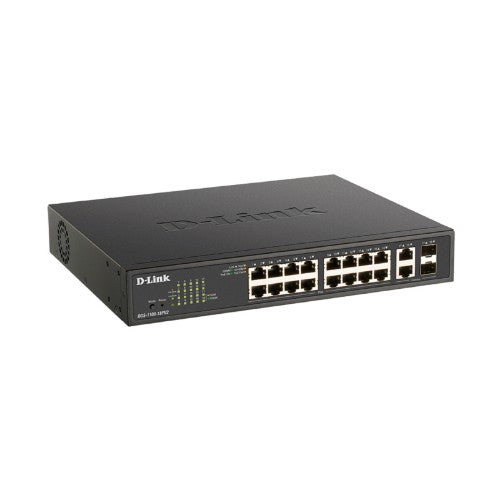

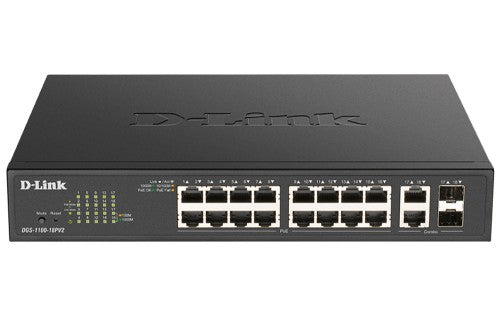

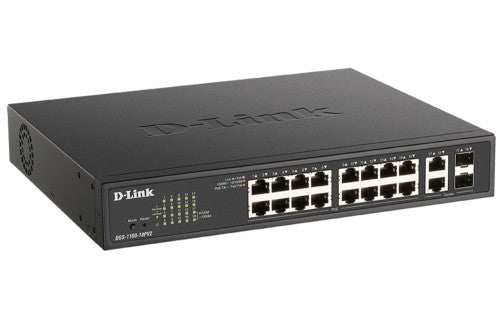

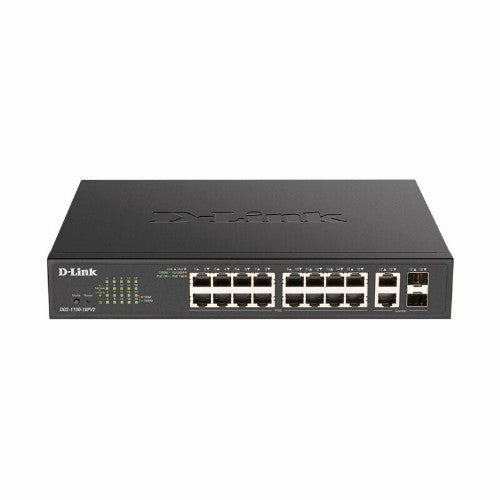

D-Link DGS-1100-18PV2 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

DGS-1100-18PV2 - 18-Port Gigabit Smart Managed PoE Switch with 16 PoE and 2 Combo RJ45/SFP ports (130W PoE budget)

Key Features

• Gigabit Ethernet Speeds
• Cutting Edge Green Technology
• Manage Anywhere, Anytime

Description

Powerful Switching for your Business
The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

Easy to Use & Easy to Install
D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.

VLANs: Stronger Security & Better Traffic Management
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.

Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.

PD Alive Actively Mitigates Downtime
Round-the-clock surveillance footage is vital. If you have Cameras attached to your network,
you may have thought technical difficulties were a given. However, the PD-Alive feature actively mitigates device downtime. If a device is not working as expected, the Switch can automatically reset them and get them back online. No need to turn them on and off again in the middle
of the night.

Specifications

Management features
Switch layer	L2
Switch type	Managed
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	2
Copper ethernet cabling technology	1000BASE-T
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Number of VLANs	4094
Copper ethernet cabling technology	1000BASE-T
VLAN support	Yes
Spanning tree protocol	Yes
Link aggregation	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Half duplex	Yes
IGMP snooping	Yes
Data transmission
Jumbo frames	9216
Switching capacity	36 Gbit/s
Jumbo frames support	Yes
Forwarding rate	26.78 Mpps
Number of VLANs	4094
Security
IGMP snooping	Yes
Design
Rack mounting	Yes
Product colour	Black
Form factor	1U
Electromagnetic compatibility	FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI
Number of fans	1 fan(s)
Certification	cUL, UL, LVD, CB, BSMI
Performance
Noise level	45.8 dB
Mean time between failures (MTBF)	343695 h
Auto-negotiation	Yes
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power source	DC/PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	16
Total Power over Ethernet (PoE) budget	130 W
Operational conditions
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Heat dissipation	125.2 BTU/h
Virtual LAN features
Number of VLANs	4094
VLAN support	Yes
Weight & dimensions
Width	280 mm
Depth	230 mm
Height	44 mm
Weight	2.1 kg
Technical details
Compliance certificates	RoHS
Certificates
Certification	cUL, UL, LVD, CB, BSMI
Compliance certificates	RoHS
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
