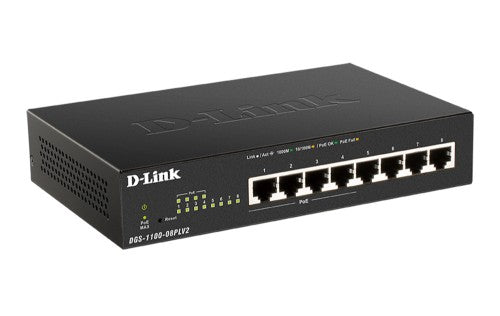

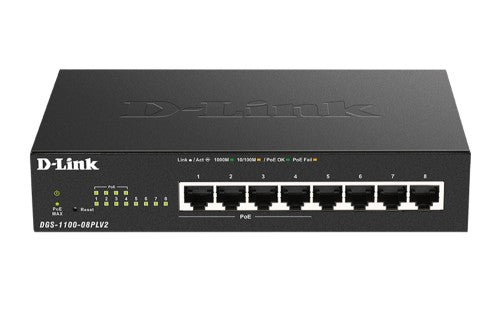

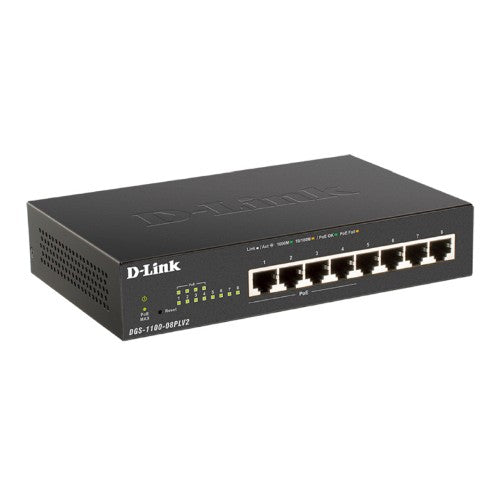

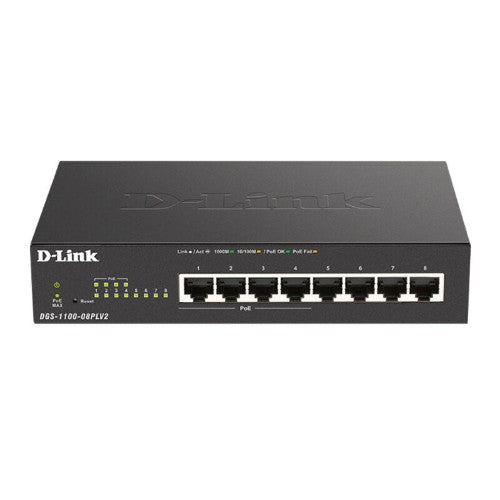

D-Link DGS-1100-08PLV2 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

8-Port Gigabit Smart Managed PoE Switch with 4 PoE ports, 80W PoE budget

Key Features

• 8 x 10/100/1000BASE-T ports with 4 x PoE+ ports
• PoE+ support with up to 30W per port
• 80 Watts PoE Power Budget
• Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
• Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
• Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
• IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
• Innovative energy saving features are good for your budget, as well as the environment
• Get up and going quickly with streamlined first-time setup and ongoing management

Description

Powerful Switching for your Business

The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

Gigabit Ethernet Speeds

Take your Ethernet speeds to the next level with Gigabit Connectivity.

Cutting Edge Green Technology

Innovative D-Link Green power saving features keep your budget in check.

Manage Anywhere, Anytime

Remote setup & management is easy, and can be done from anywhere.

Easy to Use & Easy to Install

D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.

VLANs: Stronger Security & Better Traffic Management

Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.

For Voice

If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.

For Surveillance

If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.

Green Technology

D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.

PD Alive Actively Mitigates Downtime

Round-the-clock surveillance footage is vital. If you have Cameras attached to your network,
you may have thought technical difficulties were a given. However, the PD-Alive feature actively mitigates device downtime. If a device is not working as expected, the Switch can automatically reset them and get them back online. No need to turn them on and off again in the middle
of the night.

Specifications

Management features
Switch layer	L2
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
VLAN support	Yes
Spanning tree protocol	Yes
Link aggregation	Yes
10G support	No
Virtual LAN features	Tagged VLAN, Voice VLAN
IGMP snooping	Yes
Data transmission
Jumbo frames	10000
Switching capacity	16 Gbit/s
Jumbo frames support	Yes
Security
IGMP snooping	Yes
Multicast features
Multicast support	Yes
Design
Rack mounting	No
Product colour	Black
LED indicators	Yes
Performance
Fanless	Yes
Power
Power supply included	Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	80 W
Virtual LAN features
VLAN support	Yes
Virtual LAN features	Tagged VLAN, Voice VLAN
Weight & dimensions
Width	190 mm
Depth	120 mm
Height	38 mm
Sustainability
Sustainability compliance	Yes
Technical details
Sustainability compliance	Yes
Compliance certificates	RoHS
Certificates
Compliance certificates	RoHS
