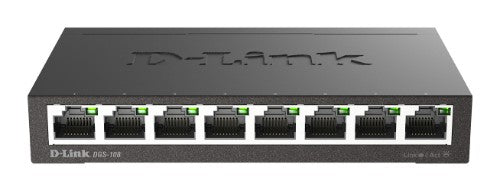

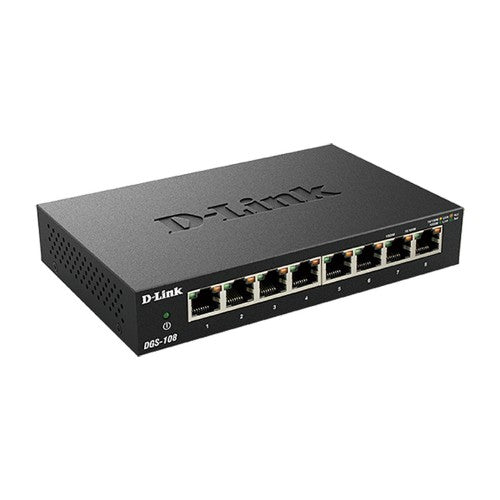

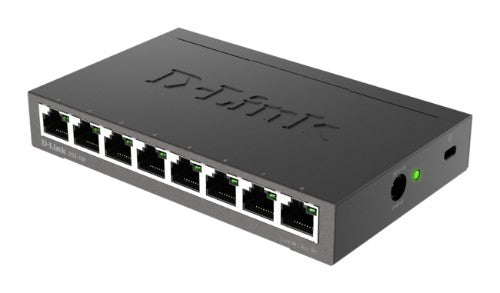

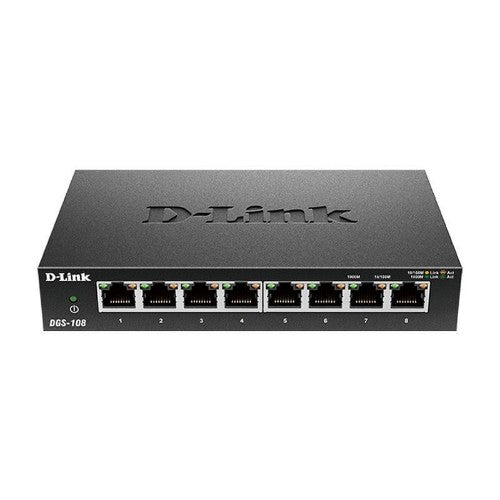

D-Link DGS-108, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Desktop
Description
D-Link DGS-108. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Form factor: Desktop
Specifications
| Management features |
|---|
| Switch layer |
L2 |
| Switch type |
Unmanaged |
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |

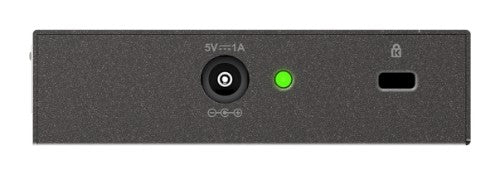

| Power connector |
DC-in jack |
| Copper ethernet cabling technology |
1000BASE-T, 100BASE-TX, 10BASE-T |
| Network |
|---|
| Networking standards |
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex |
Yes |
| Copper ethernet cabling technology |
1000BASE-T, 100BASE-TX, 10BASE-T |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
Yes |
| Data transmission |
|---|
| MAC address table |
8000 entries |
| Supported data transfer rates |
10/100/1000 Mbps |
| Switching capacity |
16 Gbit/s |
| Store-and-forward |
Yes |
| Maximum data transfer rate |
1 Gbit/s |
| Jumbo frames support |
Yes |
| Packet buffer memory |
0.192 MB |
| Security |
|---|
| MAC address filtering |
Yes |
| Design |
|---|
| Rack mounting |
No |
| Product colour |
Black |
| Form factor |
Desktop |
| LED indicators |
Link, Power |
| Housing material |
Metal |
| Certification |
FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS |
| Performance |
|---|
| Mean time between failures (MTBF) |
1467882 h |
| Packet buffer memory |
0.192 MB |
| Harmonized System (HS) code |
85176990 |
| Power |
|---|
| Power consumption (typical) |
5.12 W |
| Input voltage |
5 V |
| Input current |
1 A |
| Power source |
AC |
| Power connector |
DC-in jack |
| Other features |
|---|
| Data transfer rate |
2000 Mbit/s |
| Dimensions (WxDxH) |
162 x 102 x 28 mm |
| Connectivity technology |
Wired |
| Input voltage |
5 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
17.47 BTU/h |
| Weight & dimensions |
|---|
| Width |
138.7 mm |
| Depth |
85 mm |
| Height |
22.4 mm |
| Weight |
270 g |
| Packaging data |
|---|
| Included power plug types |
EU |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Shipping (inner) case width |
26 cm |
| Shipping (inner) case net weight |
7.1 kg |
| Shipping (inner) case length |
37 cm |
| Shipping (inner) case height |
44.3 cm |
| Products per shipping (inner) case |
10 pc(s) |
| Products per pallet (sea) |
480 pc(s) |
| Products per pallet (air) |
480 pc(s) |
| Pallet gross width |
120 cm |
| Pallet gross length |
110 cm |
| Pallet height (sea) |
196.7 cm |
| Pallet height (air) |
196.7 cm |
| Pallet gross weight (sea) |
398.9 kg |
| Pallet gross weight (air) |
398.9 kg |
| Master (outer) cases per pallet (sea) |
48 pc(s) |
| Master (outer) cases per pallet (air) |
48 pc(s) |
| Shipping (inner) case gross weight |
7.79 kg |
| Certificates |
|---|
| Certification |
FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS |
| Packaging content |
|---|
| Included power plug types |
EU |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
