8x Gigabit Ethernet, CSMA/CD, Cat. 3/4/5, 128KB, 8000 MAC, Black
Description

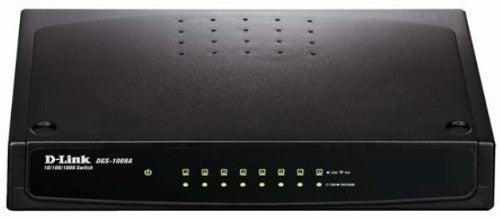

The DGS-1008A 8-Port Gigabit Easy Desktop Switch is a cost-effective solution that features D-Link's Green Technology-providing energy savings, reduced heat, and a longer product life without sacrifieightcing performance or functionality. Along with 8 provided Gigabit ports, simple setup helps quickly expand your network and upgrade to Gigabit connectivity. Its compact size and simple design give you the freedom to place it in any environment.
Specifications
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Power connector |
DC-in jack |
| Copper ethernet cabling technology |
1000BASE-T, 100BASE-TX, 10BASE-T |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex |
Yes |
| Copper ethernet cabling technology |
1000BASE-T, 100BASE-TX, 10BASE-T |
| Flow control support |
Yes |
| 10G support |
No |
| Data transmission |
|---|
| MAC address table |
8000 entries |
| Supported data transfer rates |
10/100/1000 Mbps |
| Maximum data transfer rate |
1 Gbit/s |
| Packet buffer memory |
0.128 MB |
| Security |
|---|
| MAC address filtering |
Yes |
| Design |
|---|
| Product colour |
Black |
| Housing material |
Plastic |
| Safety |
LVD |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power connector |
DC-in jack |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Other features |
|---|
| Power LED |
Yes |
| Networking features |
Gigabit Ethernet |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Relative humidity |
5 - 95% |
| Operating temperature (T-T) |
32 - 104 °F |
| Weight & dimensions |
|---|
| Width |
171 mm |
| Depth |
100 mm |
| Height |
33.5 mm |
| Performance |
|---|
| Packet buffer memory |
0.128 MB |
