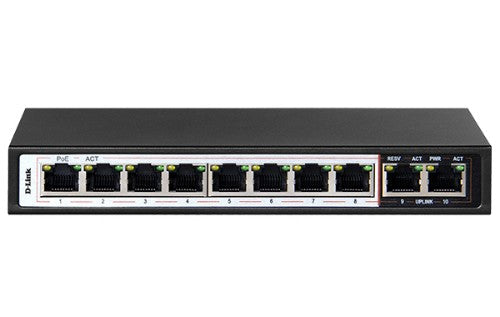

D-Link DES-F1010P-E network switch Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black

10-Port PoE Switch with 8 Long Reach 250m PoE Ports and 2 Uplink Ports

Key Features

• 8 x 10/100 Mbps Fast Ethernet PoE+ Ports
• 2 x 10/100 Mbps Uplink Ports
• PoE+ support - up to 30W per port
• Long Reach PoE support - up to 250m
• Smart Features: Extend, VLAN, QoS and PoE Reset
• Lightning protection built-in (6kV)
• PoE Budget 96 Watts
• Plug & Play Installation

Description

Built for your Needs

Robust and cost-effective PoE solution to provide power for your PoE powered devices such as IP cameras, CCTV, VoIP, Wi-Fi Access Points, etc.

Up to 250m PoE and Data Transmission

Equipped with PoE extend technology, the DES-F1010P-E have the capability to supply 802.3af/at PoE and data connectivity on cables up to 250m long.

6KV Surge Protection

D-Link DES-F1010P-E switch is enhanced with 6KV surge protection. This effectively protects the switch against sudden electrical surges caused by events such as lightning strikes or unstable electrical current. Built-in 6 kV surge protection significantly reduces the chances of equipment being damaged from electrical surges, and effectively lowers maintenance costs by minimizing the need for expensive equipment repairs or replacement.

Enhanced with VLAN Function

With a flick of button you can isolate switch ports from each other, but still allowing the devices to communicate via the uplink ports. This feature not only adds security but can also effectively suppress network storms and improve network performance.

Enhanced with QoS

The DES-1010P-E switch performance is enhanced with QoS (Quality of Service) feature to ensure that critical network services such as IP surveillance, VoIP, IPTV are always given high priority. This feature makes the switch a perfect solution for IP Camera/CCTV applications.

Intelligent Detection

With AI PoE feature enabled the switch can automatically detect an unresponsive PoE device and reboot the devices in order to recover it.

Specifications

Management features
Switch layer	L2
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	10
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Fast Ethernet (copper) ports quantity	10
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Network
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
VLAN support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Half duplex	Yes
Data transmission
Switching capacity	2 Gbit/s
Store-and-forward	Yes
Design
Rack mounting	No
Stackable	No
Product colour	Black
LED indicators	Yes
Housing material	Metal
Certification	FCC
Performance
Fanless	Yes
Stackable	No
Auto-negotiation	Yes
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	96 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	184 mm
Depth	75 mm
Height	27 mm
Weight	950 g
Sustainability
Sustainability compliance	Yes
Technical details
Sustainability compliance	Yes
Compliance certificates	CE
Certificates
Certification	FCC
Compliance certificates	CE
