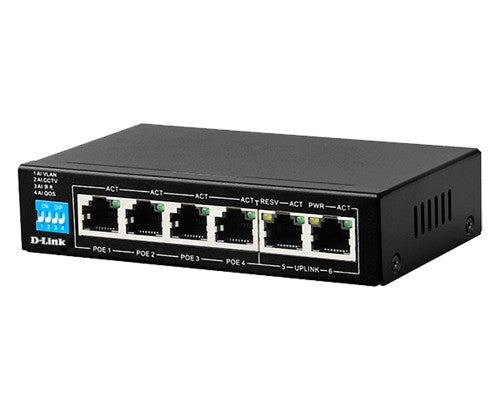

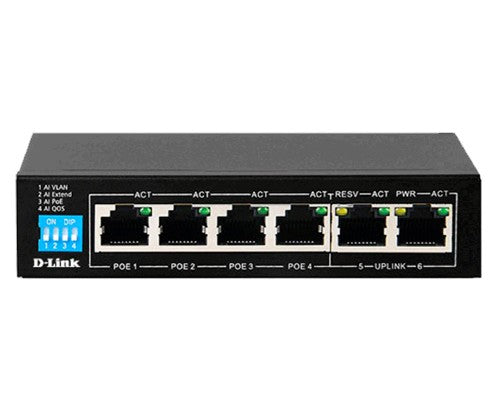

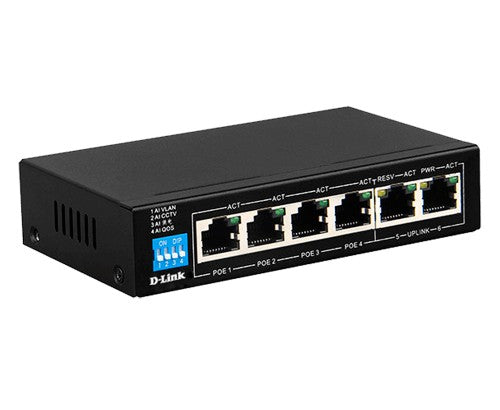

D-Link DES-F1006P-E network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black

6-Port Unmanaged PoE Switch

Key Features

• 4 x 10/100 Mbps Fast Ethernet Ports
• 2 x 10/100 Mbps Uplink Port
• Power-over-Ethernet (60W)
• Flow control for protection against data loss
• Maximum distance of 250m
• QoS Capabilities
• Surge protection (6kV)
• Operating Temperature: 0 to 40oC

Description

Supports 10/100 Mbps speeds with Power-over-Ethernet (PoE) capabilities to supply power to other devices.

Long-Distance Transmission with Surge Protection

With a connectivity range of 250 meters, the DES-F1006P-E is ideal for surveillance deployments, and compatible with Cat.5e or Cat.6 copper cable, while 6kV surge protection helps this device withstand power fluctuations and lightning strikes.

Easy Deployment and PoE Convenience

The DES-F1006P-E is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free. Easily connect multiple computers, share files, music, and video across your SOHO network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving a more reliable connection for all connected devices. The DES-F1006P-E also features four 10/100BASE-TX ports that support the IEEE 802.3af/at Power-over-Ethernet (PoE) protocol, supplying 15W each.

Diverse Operating Modes

The DES-F1006P-E switch has three operating modes. The default mode has a transmission distance of 100 meters. VLAN mode prevents against DHCP deception, broadcast storms, and virus attacks. Extend mode supports an extra-long transmission distance of 250 meters at 10Mbps, and Quality-of-Service (QoS) mode customizes application priorities for uses such as Video.

Specifications

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	6
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Fast Ethernet (copper) ports quantity	6
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Cable types supported	Cat5e, Cat6
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
VLAN support	Yes
Flow control support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Data transmission
Forwarding rate	0.148 Mpps
Design
Rack mounting	No
Product colour	Black
LED indicators	Yes
Performance
Fanless	Yes
Auto-negotiation	Yes
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
DC input voltage	52 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	15 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	60 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	125 mm
Depth	75 mm
Height	27 mm
Weight	750 g
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
