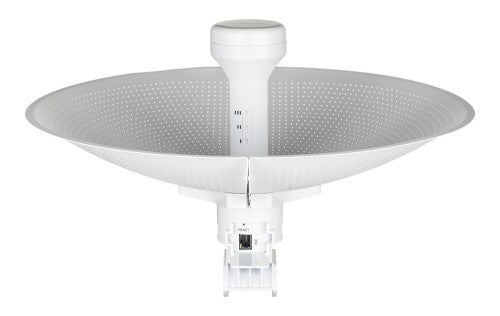

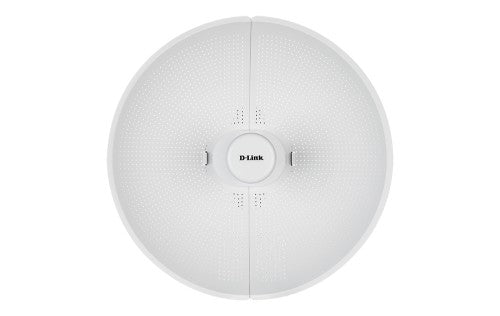

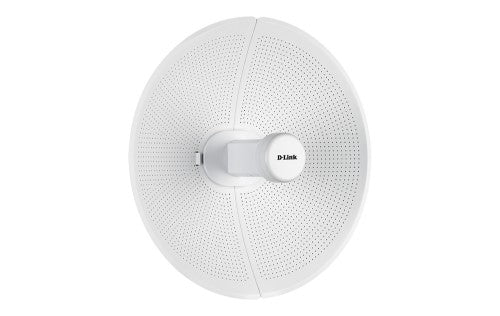

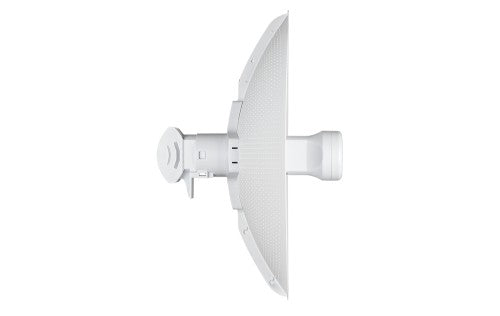

D-Link DAP-3712 867 Mbit/s White Power over Ethernet (PoE)

DAP-3712 - Long Range Wi-Fi 5 Wireless Bridge (20km) - Pack of 2

Key Features

• Pack of two DAP-3712 Wi-Fi 5 Bridges
• Point-to-Point or Point-to-Multipoint connection
• Up to 20km distance
• 802.11ac wireless technology on 5GHz band
• Built-in Alignnment and Signal Strength LEDs
• TDMA technology for better performance
• High power 27 dBm design
• 23 dBi directional antenna
• Weather Proof outdoor design (IP66 rated)
• 8 kV surge protection
• Supports standard IEEE 802.3at PoE

Description

Highlights
The DAP-3712 provides reliable, long-distance connectivity between multiple sites such as office branches, construction sites or transportation hubs,
in both rural or busy city areas. Using proven Wi-Fi 5 technology with speeds of up to 867Mbps and it’s easy to install design, the DAP-3712 Long Range Wireless Bridge
from D-Link’s Business Solutions range offers a compelling connectivity solution versus expensive Fibre-based offerings.

Bring Connectivity To Areas With Limited Or No Access To Fixed Internet.
The DAP-3712 features state-of-the-art hardware, including a high-gain 23 dBi directional antennas. This powerful antenna effortlessly extends high-speed coverage to distances of up to 20km away.

Consistent Coverage That Filters Out Interference
The DAP-3712 transmission capability is augmented thanks to its integrated Time Division Multiple Access (TDMA). Everything works more efficiently on a schedule, and the DAP-3712 is no different: TDMA creates a schedule for multiple connected clients to work to. Senders and receivers get their own time slot for transmissions. This eliminates hidden node data collisions, in turn maximising airtime efficiency, significantly cutting down interference and making for a highly scalable solution.

The Power to Withstand Tough Weather
The DAP-3712 Wireless Bridge not only is designed to perform across long ranges, but is designed to perform long-term, braving the elements with an IP66-rated housing, providing both water and dust resistance, along with 8kV surge protection to protect the unit itself from lightning strikes and power surges.

Simple Installation with Built-in
Signal Strength and Alignment LED's
The DAP-3712 Long Range Wireless Bridge also has you covered with built-in Signal Strength and Alignment LED’s that allow you to easily align the antenna with another over long distances, saving you specialised installation service costs.

Specifications

Performance
2.4 GHz	No
5 GHz	Yes
Syslog	Yes
Maximum data transfer rate	867 Mbit/s
Ethernet LAN data rates	100,1000 Mbit/s
Frequency band	5.745 - 5.825 GHz
VLAN support	Yes
Reset button	Yes
Maximum outdoor range	20000 m
Firmware upgradeable	Yes
Channels quantity	2 channels
Certification	CE, FCC
DHCP snooping	Yes
Features
6 GHz	No
2.4 GHz	No
5 GHz	Yes
Maximum data transfer rate	867 Mbit/s
Ethernet LAN data rates	100,1000 Mbit/s
Frequency band	5.745 - 5.825 GHz
VLAN support	Yes
Maximum outdoor range	20000 m
Channels quantity	2 channels
Transmitting power (CE)	27 dBm
Maximum data transfer rate (5 GHz)	867 Mbit/s
Fit AP mode features	Wireless distribution system (WDS)
Security
Security algorithms	128-bit AES
MAC address filtering	Yes
IP address filtering	Yes
DHCP snooping	Yes
Service Set Identifier (SSID) features	SSID broadcast
Management features
Syslog	Yes
Firmware upgradeable	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	15 W
Power over Ethernet (PoE)	Yes
AC input voltage	48 V
Design
Placement	Pole
International Protection (IP) code	IP66
Reset button	Yes
LED indicators	Signal strength
Product colour	White
Certification	CE, FCC
Antenna
Antenna gain level (max)	23 dBi
Certificates
Certification	CE, FCC
Weight & dimensions
Width	372 mm
Depth	241 mm
Height	372 mm
Weight	900 g
Packaging content
Quantity per pack	2 pc(s)
Operational conditions
Operating relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	-40 - 65 °C
Storage temperature (T-T)	-40 - 85 °C
Storage relative humidity (H-H)	0 - 90%
Logistics data
Quantity per pack	2 pc(s)
