D-Link SFP 10/100/1000 BASE-T Copper Transceiver

1000Base-T Copper SFP Transceiver

Key Features

• Compliant with IEEE 802.3ab Gigabit Standard
• MSA, RoHs Compliant
• Maximum distance of 100 m
• RJ-45 connector type

Description

Gigabit Ethernet connectivity for data centers, enterprise wiring closets, and service provider transport applications

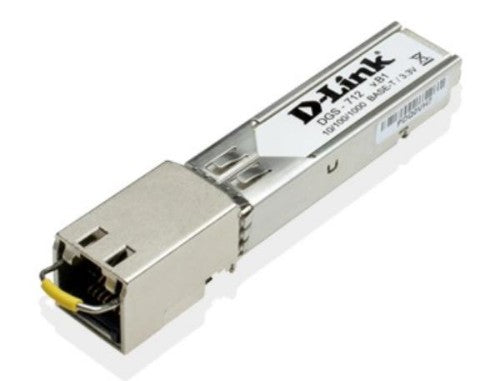

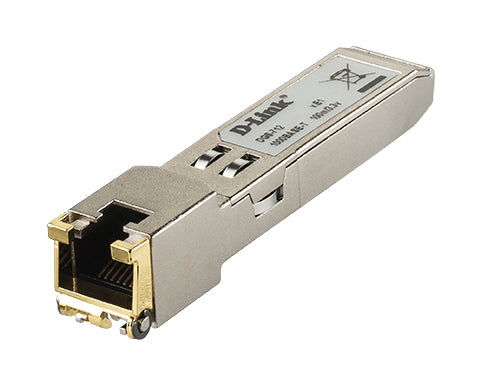

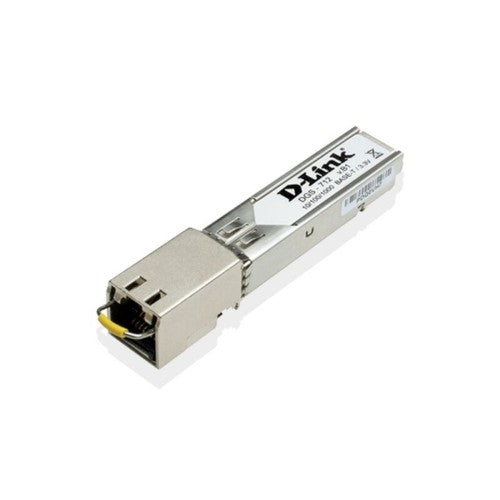

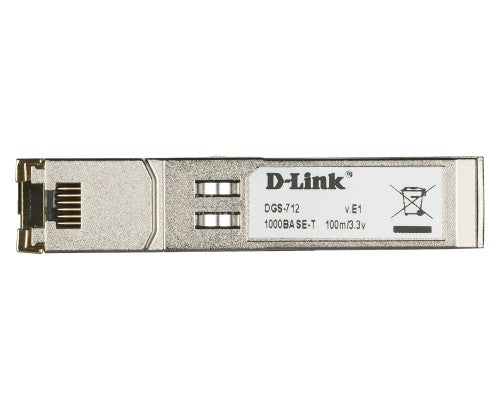

The D-Link DGS-712 1000Base-T Copper SFP Transceiver Module is a hot-swappable SFP (Small Form-Factor Pluggable) transceiver that plugs into standard SFP slots on switches and supports Gigabit Ethernet. The DGS-712 offers a wide variety of Gigabit Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications. The DGS-712 is an external transceiver designed for insertion into SFP slots of network devices for transmission and reception of data signals from fiber ports. These transceivers provide Gigabit operation and physical compactness to deliver the speed, reliable data transfer, and deployment flexibility that today’s networks require.

Specifications

Performance
SFP transceiver type	Copper
Ethernet LAN	Yes
Interface type	SFP
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Maximum transfer distance	100 m
Ethernet interface type	Gigabit Ethernet
SFP transceiver standard	T, TX
Copper ethernet cabling technology	10BASE, 100BASE, 1000BASE
Product colour	Metallic
Mean time between failures (MTBF)	5617000 h
Harmonized System (HS) code	85176990
Features
Product colour	Metallic
Mean time between failures (MTBF)	5617000 h
Certification	FCC Class A CE Class A VCCI Class A
Safety	CSA, TUV
Power
Maximum voltage	3.3 V
Certificates
Certification	FCC Class A CE Class A VCCI Class A
Safety	CSA, TUV
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Network
SFP transceiver type	Copper
Interface type	SFP
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet interface type	Gigabit Ethernet
Weight & dimensions
Width	13.7 mm
Depth	70.2 mm
Height	13.4 mm
Weight	20 g
Package width	74 mm
Package depth	131 mm
Package height	49 mm
Package weight	64 g
Packaging data
Package width	74 mm
Package depth	131 mm
Package height	49 mm
Package weight	64 g
Technical details
Ethernet LAN	Yes
Harmonized System (HS) code	85176990
Shipping (inner) case width	26 cm
Shipping (inner) case net weight	3.2 kg
Shipping (inner) case length	36 cm
Shipping (inner) case height	31 cm
Products per shipping (inner) case	50 pc(s)
Products per pallet (sea)	2700 pc(s)
Products per pallet (air)	2700 pc(s)
Pallet gross width	122 cm
Pallet gross length	102 cm
Pallet height (sea)	199 cm
Pallet height (air)	199 cm
Pallet gross weight (sea)	246.8 kg
Pallet gross weight (air)	246.8 kg
Master (outer) cases per pallet (sea)	54 pc(s)
Master (outer) cases per pallet (air)	54 pc(s)
Logistics data
Harmonized System (HS) code	85176990
Shipping (inner) case width	26 cm
Shipping (inner) case net weight	3.2 kg
Shipping (inner) case length	36 cm
Shipping (inner) case height	31 cm
Products per shipping (inner) case	50 pc(s)
Products per pallet (sea)	2700 pc(s)
Products per pallet (air)	2700 pc(s)
Pallet gross width	122 cm
Pallet gross length	102 cm
Pallet height (sea)	199 cm
Pallet height (air)	199 cm
Pallet gross weight (sea)	246.8 kg
Pallet gross weight (air)	246.8 kg
Master (outer) cases per pallet (sea)	54 pc(s)
Master (outer) cases per pallet (air)	54 pc(s)
Shipping (inner) case gross weight	4.2 kg
