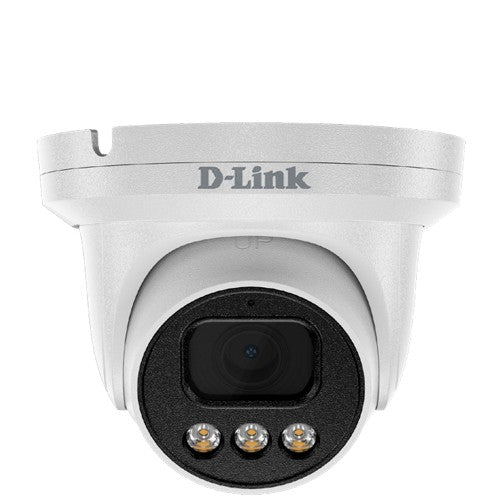

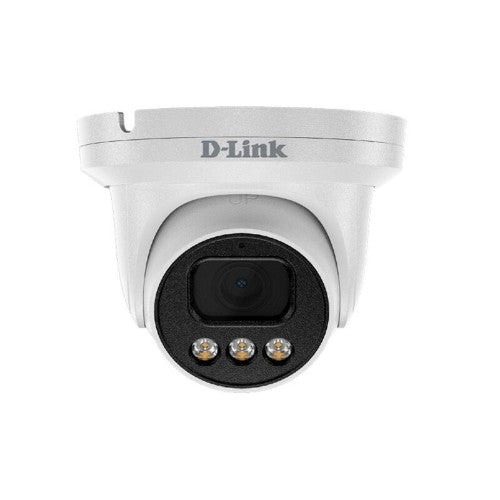

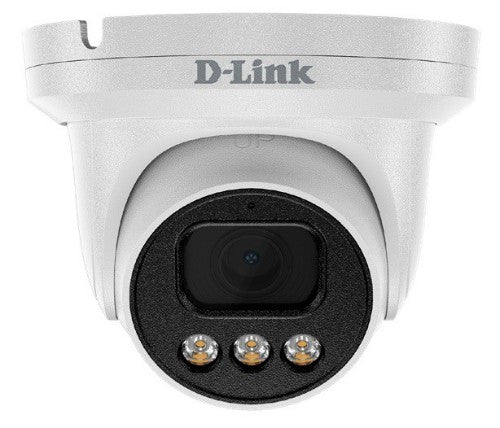

D-Link DCS-F4808E security camera Turret IP security camera Outdoor 3840 x 2160 pixels Ceiling/Wall/Pole

1/2.7” 8 MP, CMOS sensor, 3840 x 2160 at 30 fps, H.265, H.264 and MJPEG codec, WDR, WB, HLC, BLC, DNR, Defog, 2D/3D noise reduction, Built-in IR LED 20 m range, IP66, Built-in mic, MicroSD card slot, ONVIF Profile S compliant, Built-in PoE support

Key Features

• 1/2.7” 8 Megapixel progressive CMOS sensor
• Resolution of up to 3840 x 2160 at 30 fps
• H.265, H.264 and MJPEG codec support
• True Wide Dynamic Range (WDR)
• Image Enhancement with WB, HLC, BLC, DNR, Defog, 2D/3D noise reduction
• AI with motion, human and vehicle detection
• Intrusion, Tripwire, Loitering, Wrong-way, Illegal Parking detection
• Smart spotlight on human detection
• Built-in IR LED illuminator with a 20 m range
• IP66 water-resistant and dust-tight housing with an operating temperature range of -40 °C to 60 °C
• Built-in microphone
• MicroSD card slot for local recording
• ONVIF Profile S compliant
• Built-in PoE support

Description

Reliable, Rugged 24-Hour Surveillance
The D-Link DCS-F4808E Vigilance 8 Megapixel Outdoor Turret Camera is a high-definition professional surveillance and security solution suitable for small, medium, and large enterprises. The Camera uses a high-sensitivity 8-megapixel progressive scan CMOS sensor to deliver truly superior quality video, day and night. With an all-in-one rugged design, the DCS-F4808E can be deployed reliably without the need for additional accessories.

5 Megapixel Resolution
Crisp, clear recording
and playback

20m Night Vision
Built-in IR LEDs guarantee clear & bright images, even in total darkness

Weatherproof Housing
IP66 rated housing make it ideal for even the most demanding of surveillance locations

Artificial Intelligence
Powerful AI Monitoring with motion, face, human and vehicle detection

H.265 support
HEVC (High-Efficiency Video Coding) support to optimise network bandwidth for better visual quality and recording performance

Wide Dynamic Range
Easily identify subjects
in any lighting

ONVIF Compliant
Integrate this Camera with many ONVIF-capable third party software or NVR solutions

Free Surveillance Management Software
Includes DCMS+ Management Software to view and manage multiple Cameras and NVRs

Security in High Definition
Crisp 4K, 8 Megapixel video gives you a clear view of what's going on. High definition resolution and a compact design makes the DCS-F4808E ideal for small, medium and large enterprise installations.

Continuous Monitoring
with Night Vision
Built-in IR LED illuminators automatically turn on depending on lighting conditions, allowing the Camera to capture video even in low-light or no-light conditions. Combined with an IR-Cut Filter, the DCS-F4808E can also provide sharp grayscale video in low-light conditions. The Camera provides real-time video compression in H.265, H.264, and MJPEG formats using the embedded powerful SoC (System-on-Chip).

Always on, Rain or Shine
Equipped to handle dust, rain, sleet and snow with an IP66 weatherproof housing and a glare-reducing sun shield, the DCS-F4808E is rugged enough to keep an eye on your toughest outdoor areas without the need for additional accessories.

Ideal for Security Installers
Specifically designed for any security installer looking to offer digital video surveillance, the Vigilance Range of Cameras is designed for easy selection and simple installation. You'll be able to guide your customers to the right choice for their needs and they will be delighted with the quality, reliability and straightforward ease-of-use that Vigilance delivers.

PoE = Convenience
Power over Ethernet makes surveillance installation simpler, safer and less expensive. The Camera has a built-in 802.3af compliant PoE module, allowing for single cable deployment and reducing the need to drill holes or lay additional cabling.

Vigilance Range
The Vigilance Range offers professional, high resolution video surveillance that is easy to install, weatherproof and highly affordable. The range consists of Cameras designed specifically to meet different surveillance and environmental requirements such as recording video without additional software or equipment, and vandal-proof protection.

Video Management Software
The D-Link DCMS+ Software provides a surveillance solution for managing multiple Network Video Recorders (NVRs) and Cameras. It is used for NVR and Camera management, real-time surveillance, PTZ control, setting of front-end parameters of Cameras, video search, video playback, video downloading, alarm search, etc. Featuring easy installation and convenient operation, the system supports all the essential functions needed for security.

Quality Footage, Whatever The Conditions on the Ground
No matter the time of day, the Vigilance Series of cameras stand ready to be on the lookout and keep you informed thanks to these essential features

3D Noise Filtering
3D Filtering reduces image noise, improving image quality, especially in low-light environments.

Infrared LEDs
Night can be a tricky time for surveillance. However, built-in IR LED illuminators make sure nothing stays hidden, even in complete darkness.

Wide Dynamic Range
During periods of extreme contrast, such as under the midday sun, Wide Dynamic Range (WDR) improves image quality. Areas which may previously have been bleached out by excessive light or shaded areas thrown into utter darkness are now once again visible.

Specifications

Performance
Type	IP security camera
Connectivity technology	Wired
Placement supported	Outdoor
Wide Dynamic Range (WDR)	Yes
Certification	CE, FCC, RCM
Design
Weatherproof	Yes
Form factor	Turret
Product colour	White
Mounting type	Ceiling/Wall/Pole
Protection features	Dust resistant, Water resistant
International Protection (IP) code	IP66
Camera
Adjustment shutter speed	Auto/Manual
Minimum illumination	0 lx
Tilt angle range	0 - 80°
Pan range	0 - 355°
White balance	Auto
Angle of rotation	360°
Camera shutter type	Electronic
Camera shutter speed	1/5 - 1/20000 s
Lens viewing angle, horizontal	105°
Lens viewing angle, vertical	56°
Progressive scan	Yes
Image sensor
Number of effective pixels (H x V)	3840 x 2160 pixels
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	25.4 / 2.7 mm (1 / 2.7")
Lens system
Maximum aperture number	2
Focal length range	2.8 mm
Night vision
Night vision	Yes
Night vision distance	20 m
LED type	IR/White
Video
Noise reduction	Yes
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Privacy masking	Yes
Gain control type	Auto
Smart IR	Yes
Highlight Compensation (HLC)	Yes
Back Light Compensation (BLC)	Yes
Noise reduction technology	2D noise reduction, 3D noise reduction
Maximum resolution	3840 x 2160 pixels
Video compression formats	H.264, H.265, HEVC
Frame rate	30 fps
Total megapixels	8 MP
Audio
Signal-to-Noise Ratio (SNR)	55 dB
Built-in microphone	Yes
Network
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3af, IEEE 802.3at
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	IPv4/IPv6 802.1x HTTP HTTPS TCP/IP UDP/IP RTSP DHCP NTP RTCP/RTP PPPoE SMTP DNS UPnP FTP ARP SNMP TLS/SSL
Client interoperability	ONVIF, SDK, CGI
Storage
Card reader integrated	Yes
Compatible memory cards	SD
Built-in HDD	No
Maximum memory card size	256 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired
Security
Intelligent Video Surveillance (IVS) system features	Human detection, Intrusion, Tripwire, Vehicle detection
Video motion detection	Yes
Network access storage (NAS)	Yes
Management features
Web browser	Yes
Reset button	Yes
Remotely operated	Yes
Smartphone/tablet remote support	Yes
Power
Power source type	DC, PoE
Power over Ethernet (PoE)	Yes
Power consumption (max)	4.4 W
DC output voltage	12
DC output current	1.5 A
Certificates
Certification	CE, FCC, RCM
Operational conditions
Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%
System requirements
Windows operating systems supported	Windows 10 x64, Windows 11
Mobile operating systems supported	Android, iOS
Weight & dimensions
Height	94 mm
Diameter	11.8 cm
Weight	550 g
Sustainability
Compliance certificates	National Defense Authorization Act (NDAA)
Packaging content
Number of cameras	1
AC adapter included	No
Technical details
Compliance certificates	National Defense Authorization Act (NDAA)
Other features
Video compression formats	H.264, H.265, HEVC
Browser supported	Chrome, Firefox, Edge, Safari (MJPEG only)
