D-Link DAP-X3060 AX3000 WiFi-6 Dual-Band POE Access Point
Key Features
- Wi-Fi 6 2x2 Concurrent Dual-Band
- (2.4GHz + 5GHz), AX3000
- 1 x 2.5G LAN (PoE)
- Support up to 160MHz channel Bandwidth
- WPA3™ Personal & Enterprise wireless encryption
- Support multiple operation modes to (AP/WDS/WDS + AP)
- Power by 802.3at PoE
- Customizable Captive Portal
Description

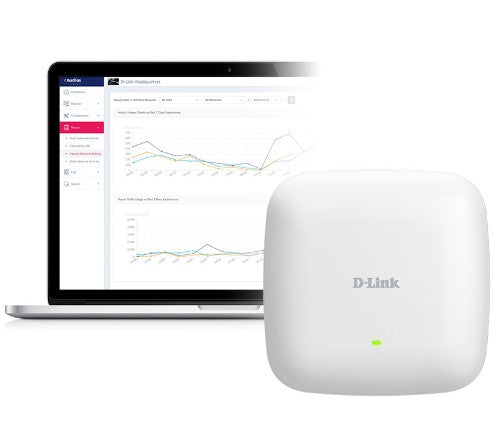

The DAP-X3060 delivers high performance Wi-Fi 6 speeds, enhanced capacity, interference-free coverage, and simple management via Nuclias Connect
Specifications
| Performance |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Maximum data transfer rate |
3000 Mbit/s |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Frequency band |
2.4 - 5 GHz |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| Features |
|---|
| 6 GHz |
No |
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Maximum data transfer rate |
3000 Mbit/s |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Frequency band |
2.4 - 5 GHz |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Fast roaming |
Yes |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |

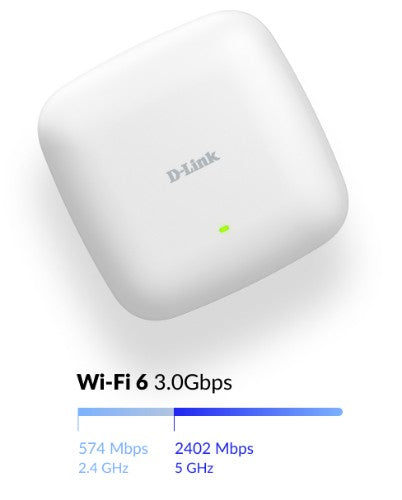

| Maximum data transfer rate (2.4 GHz) |
574 Mbit/s |
| Maximum data transfer rate (5 GHz) |
2402 Mbit/s |
| Security |
|---|
| Security algorithms |
SNMP, SNMPv2, SNMPv3, WEP, WPA, WPA2, WPA3 |
| MAC address filtering |
Yes |
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
0 |

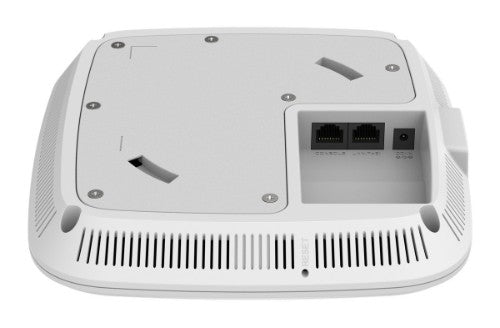

| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power consumption (max) |
16.7 W |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|

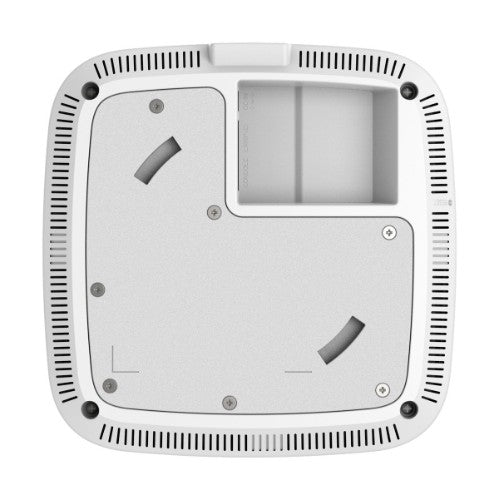

| Placement |
Ceiling, Desk, Wall |
| Product colour |
White |
| Antenna |
|---|
| Antenna type |
Internal |
| Antennas quantity |
4 |
| Antenna gain level (max) |
3 dBi |
| Software |
|---|
| Fast roaming |
Yes |
| Weight & dimensions |
|---|
| Width |
190 mm |
| Depth |
190 mm |
| Height |
42.8 mm |
| Weight |
612.4 g |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 65 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
