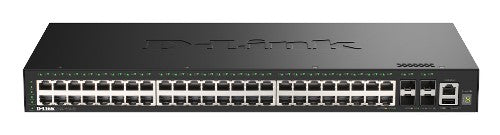

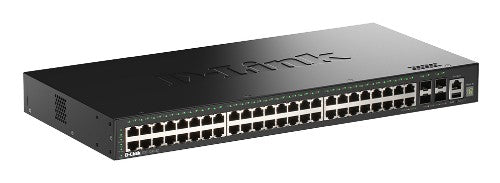

48 x 10/100/1000 Mbps, 4 x 10G SFP+, 176 Gbps, 130.95 Mpps, 440 x 210 x 44 mm, 3.2 kg
Description
The DGS-1530 Series are part of the Layer 2 family of D-Link’s Stackable Smart Switch product line that provides wired Gigabit speeds for Metro Ethernet and campus networks. They feature a variety of ports, including 10/100/1000BASE-T RJ-45 ports, 1G SFP ports, and 10G SFP+ ports for increased network bandwidth. Surge protection, advanced Layer 2 functions, and a suite of security and management tools make the DGS-1530 Series Stackable Smart Switch ideal for Metro Ethernet and campus applications.
Product HighlightsComprehensive Security Solution Support for Access Control Lists (ACLs), multiple user authentication methods, and IP-MAC-Port Binding ensures a secure network environment
Superior Reliability
Per-port surge protection, Ethernet Ring Protection Switching (ERPS), and redundant power supply (RPS) features all help to maximize service availability
Scalability and High Availability
Physical stacking provides agile expansion and redundancy while reliability through fault tolerant topologies ensures rock-solid connectivity
Specifications
| Management features |
|---|
| Traffic classification |
Yes |
| ARP inspection |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Console port |
RJ-45 |
| USB 2.0 ports quantity |
1 |
| USB Type-A ports quantity |
1 |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x |
| Full duplex |
Yes |
| Number of VLANs |
4096 |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Ethernet LAN data rates |
10,1000,100 Mbit/s |
| Broadcast storm control |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
Yes |
| Auto-negotiation |
Yes |
| Policy-based routing |
Yes |
| IGMP snooping |
Yes |
| Data transmission |
|---|
| MAC address table |
16000 entries |
| Switching capacity |
176 Gbit/s |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Packet buffer memory |
1.5 MB |
| Forwarding rate |
130.95 Mpps |
| Number of VLANs |
4096 |
| Security |
|---|
| Loop protection |
Yes |
| SSH/SSL support |
Yes |
| Security algorithms |
SNMP, SNMPv2, SNMPv3 |
| MAC address filtering |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| Password protection |
Yes |
| Authentication type |
RADIUS, TACACS+ |
| Access Control List (ACL) ingress |
2000 |
| Access Control List (ACL) egress |
1000 |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| Rack mounting |
Yes |
| Stackable |
Yes |
| Product colour |
Black |
| LED indicators |
Yes |
| Number of fans |
2 fan(s) |
| Performance |
|---|
| Noise level |
54.7 dB |
| Mean time between failures (MTBF) |
330520 h |
| Stackable |
Yes |
| Packet buffer memory |
1.5 MB |
| Auto-negotiation |
Yes |
| Power |
|---|
| Power consumption (max) |
44.1 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Heat dissipation |
150.38 BTU/h |
| Virtual LAN features |
|---|
| Number of VLANs |
4096 |
| VLAN support |
Yes |
| Weight & dimensions |
|---|
| Width |
440 mm |
| Depth |
210 mm |
| Height |
44 mm |
| Weight |
3.2 kg |
| Other features |
|---|
| Ethernet LAN data rates |
10,1000,100 Mbit/s |
