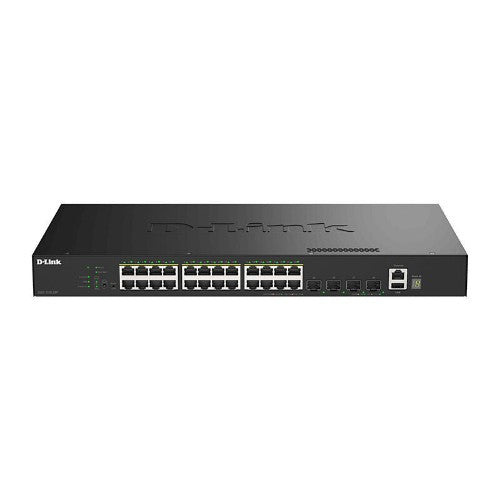

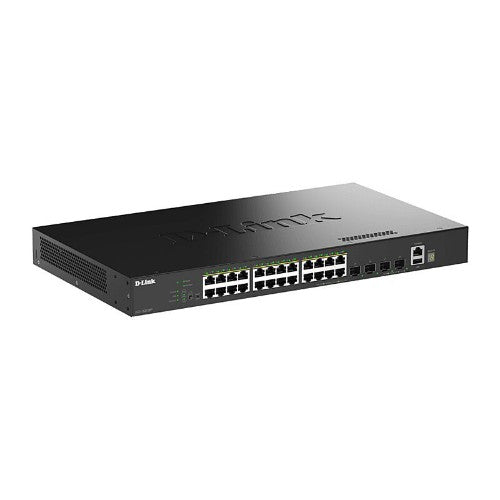

D-Link 28-Port Gigabit Stackable PoE+ Smart Managed Switch with 4 x 10G SFP+ Ports

24 x 10/100/1000 Mbps PoE, 4 x 10G SFP+, 128Gbps, 95.24 Mpps, 440 x 210 x 44 mm, 3.7 kg

Key Features

• 24 Ports Gigabit PoE for downlink
• 4 Ports 10G SFP+ for uplink
• PoE IEEE802.3af/at options, power budget 370 W
• 6kV surge protection on all Gigabit Ethernet ports
• Physical stacking up to 9 switches
• ZTP (Zero-Touch Provisioning)
• Ethernet Ring Protection Switching (ERPS)
• IEEE 802.1ag for Connectivity Fault Management
• ITU-T Y.1731 for Delay Measurement Massages
• Manage through the Nuclias Network Controller

Description

Uninterrupted Service
Redundant power supply ensures uninterrupted operation while boosting PoE output for high-demand devices

Simplified Management
The SIM feature lets you manage multiple switches as a virtual stack under one IP, streamlining operations and integration

Enhanced Security
Features includes VLANs, ACLs, Port Security, 802.1X, and RADIUS to protect data and manage access

Resilience Connectivity
G.8032 ERPS delivers sub-millisecond ring recovery for uninterrupted connectivity across critical operations

Seamless Power Delivery
PD-Alive, Fast PoE, and Perpetual PoE ensure rapid startup, automatic device recovery, and uninterrupted power supply

Shielded for Stability
All copper ports include 6kV surge protection for reliability and protection against electrical spikes

Zero-Touch Setup, Infinite Scalability
Zero-Touch Provisioning (ZTP) streamlines setup by enabling devices to auto-configure without manual input. Simply hold the reset button for 5–10 seconds to trigger reboot and provisioning. ZTP speeds up deployment, minimizes errors, and ensures consistent configuration and ideal for large-scale networks.

Power on the switch and connect the cable to service LAN, then start ZTP

- Hold the reset button (5~10 sec)
- Get IP and settings from DHCP server
- Download firmware or configuration from TFTP server

Effortless PoE for Modern Networks
The DGS-1530-28P supports 802.3af/at PoE standards, delivering up to 30 W per port and a PoE budget of 370 W with Perpetual and Fast PoE.

PoE enables the simple deployment of IP cameras, APs, and VoIP phones over standard Ethernet, reducing the need for separate electrical wiring and allowing owners to tailor power availability for their business venues.

Recover Instantly with Intelligent Stacking
Physical stacking lets multiple switches act as one, boosting scalability and resilience. It reroutes traffic automatically during failures, supports hot-swapping, and ensures seamless master switch failover. Shortest-path forwarding and trunked ports enhance bandwidth and reliability.

Smarter Multicast for Seamless Streaming
The rise of IPTV and multimedia streaming, efficient multicast management is crucial. IGMP/MLD snooping prevents duplicate streams and interference between STBs within the same VLAN, while ISM VLAN reduces redundant multicast traffic across VLANs—enhancing backbone efficiency and ensuring smoother streaming performance.

Specifications

Management features
Traffic classification	Yes
ARP inspection	Yes
Switch layer	L2
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Configuring Location Settings (CLI)	Yes
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45
USB 2.0 ports quantity	1
USB Type-A ports quantity	1
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Number of VLANs	4096
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Ethernet LAN data rates	10,1000,100 Mbit/s
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
Auto-negotiation	Yes
Policy-based routing	Yes
IGMP snooping	Yes
Data transmission
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Packet buffer memory	1.5 MB
Forwarding rate	95.24 Mpps
Number of VLANs	4096
Security
Loop protection	Yes
SSH/SSL support	Yes
Security algorithms	SNMP, SNMPv2, SNMPv3
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Password protection	Yes
Authentication type	RADIUS, TACACS+
Access Control List (ACL) ingress	2000
Access Control List (ACL) egress	1000
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Black
LED indicators	Yes
Number of fans	3 fan(s)
Performance
Noise level	54.7 dB
Mean time between failures (MTBF)	330520 h
Stackable	Yes
Packet buffer memory	1.5 MB
Auto-negotiation	Yes
Power
Power consumption (max)	456 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	370 W
Operational conditions
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Heat dissipation	1554.96 BTU/h
Virtual LAN features
Number of VLANs	4096
VLAN support	Yes
Weight & dimensions
Width	440 mm
Depth	250 mm
Height	44 mm
Weight	3.8 kg
Other features
Ethernet LAN data rates	10,1000,100 Mbit/s
