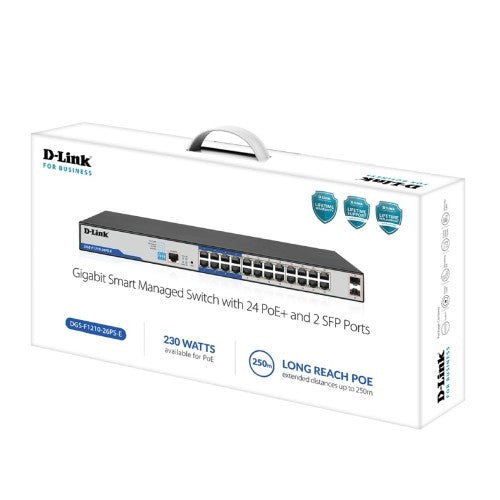

24-Port Layer 2 Gigabit Managed Long Range PoE+ Surveillance Switch
Key Features
- – 24x 10/10O/1000 Mbps PoE ports
- – 2x Gigabit SFP Ports
- – 250 W available for PoE
- – Maximum distance of 250m on PoE
- – IEEE 802.3af/at Power over Ethernet
- – 1U high – rackmountable
Description
The D-Link DGS-F1210-26PS-E is a 24 port Managed Gigabit Switch with 24 10/100/1000 Mbps PoE ports, 2 Gigabit SFP uplink ports. This Switch enables users to easily connect and supply power to PoE-capable devices such as wireless Access Points (APs), IP cameras.
Specifications
| Management features |
|---|
| Switch layer |
L2/L4 |
| Switch type |
Managed |
| Web-based management |
Yes |
| System event log |
Yes |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| Cloud-managed |
Yes |
| Ports & interfaces |
|---|
| SFP module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at |
| Number of VLANs |
4000 |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| 10G support |
No |
| Auto-negotiation |
Yes |
| IGMP snooping |
Yes |
| Data transmission |
|---|
| MAC address table |
8000 entries |
| Switching capacity |
52 Gbit/s |
| Packet buffer memory |
4.1 MB |
| Forwarding rate |
38.688 Mpps |
| Number of VLANs |
4000 |
| Security |
|---|
| IGMP snooping |
Yes |
| Password protection |
Yes |
| DHCP features |
DHCP snooping, DHCP guarding |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| Rack mounting |
Yes |
| Stackable |
Yes |
| Product colour |
Grey |
| Form factor |
1U |
| LED indicators |
Yes |
| Performance |
|---|
| Memory type |
DRAM |
| Internal memory |
128 MB |
| Flash memory |
16 MB |
| Stackable |
Yes |
| Packet buffer memory |
4.1 MB |
| Auto-negotiation |
Yes |
| Power |
|---|
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Total Power over Ethernet (PoE) budget |
400 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Virtual LAN features |
|---|
| Number of VLANs |
4000 |
| VLAN support |
Yes |
| Weight & dimensions |
|---|
| Width |
440 mm |
| Depth |
180 mm |
| Height |
44 mm |
| Weight |
3.2 kg |
