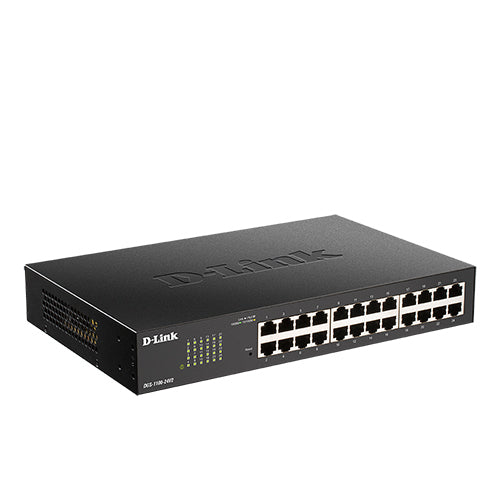

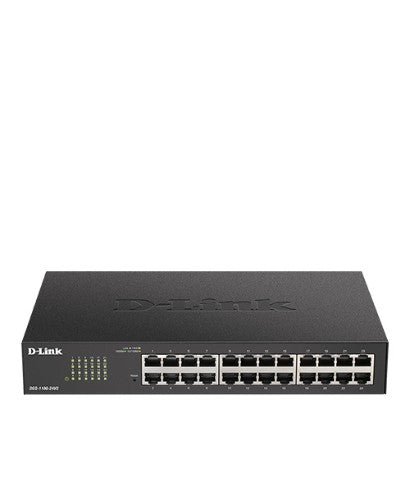

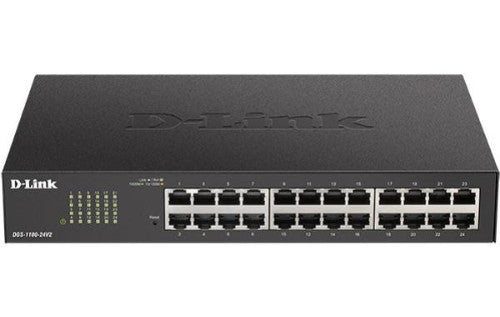

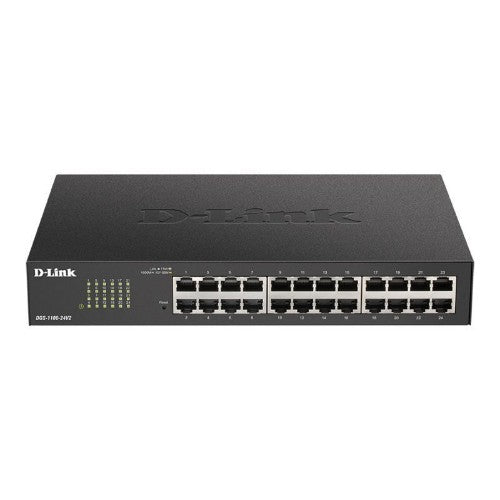

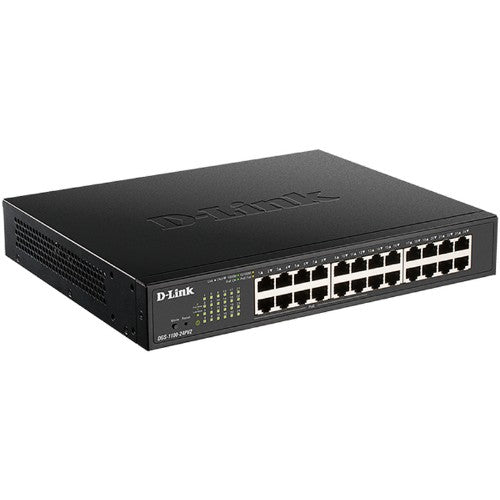

D-Link 24-Port Gigabit Smart Managed Switch

24x 10/100/1000BASE-T, 48 Gbps, 35.71 Mpps, VLAN, 280x180x44 mm

Key Features

• 24 x 10/100/1000BASE-T ports
• Fanless design for silent operation
• Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
• Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
• Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
• IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
• Innovative energy saving features are good for your budget, as well as the environment
• Get up and going quickly with streamlined first-time setup and ongoing management

Description

Powerful Switching for your Business
The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

Easy to Use & Easy to Install
D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.

VLANs: Stronger Security & Better Traffic Management
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.

For Voice
If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.

For Surveillance
If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.

Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.

Specifications

Management features
Switch layer	L2
Switch type	Managed
Web-based management	Yes
System event log	Yes
Multicast support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
Networking standards	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x
Number of VLANs	4094
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
Virtual LAN features	Port-based VLAN, Voice VLAN
IGMP snooping	Yes
IGMP entries	64
Data transmission
Jumbo frames	9216
MAC address table	8000 entries
Switching capacity	48 Gbit/s
Store-and-forward	Yes
Number of queues	4
Jumbo frames support	Yes
Packet buffer memory	4.1 MB
Forwarding rate	35.71 Mpps
Number of VLANs	4094
Security
Security algorithms	SNMP, SSL/TLS
IGMP snooping	Yes
Queue scheduling algorithms	SPQ, Weighted Round Robin (WRR)
IGMP entries	64
DHCP features	DHCP client
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Product colour	Black
Form factor	1U
LED indicators	Yes
Electromagnetic compatibility	FCC A, CE A, VCCI A, C-Tick, BSMI, CCC
Certification	RoHS 6 cUL, CE LVD, CB, BSMI, CCC
Performance
Processor frequency	125 MHz
Noise level	0 dB
Flash memory	16 MB
Mean time between failures (MTBF)	424762 h
Built-in processor	Yes
Packet buffer memory	4.1 MB
Harmonized System (HS) code	85176990
Power
Power consumption (max)	15.9 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	4.5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 2000 m
Heat dissipation	54.3 BTU/h
Virtual LAN features
Number of VLANs	4094
VLAN support	Yes
Virtual LAN features	Port-based VLAN, Voice VLAN
Weight & dimensions
Width	280 mm
Depth	180 mm
Height	44 mm
Weight	1.47 kg
Packaging content
Rack mount kit	Yes
Technical details
Harmonized System (HS) code	85176990
Certificates
Certification	RoHS 6 cUL, CE LVD, CB, BSMI, CCC
Packaging data
Rack mount kit	Yes
Logistics data
Harmonized System (HS) code	85176990
