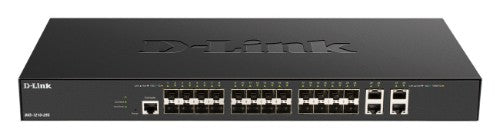

DXS-1210-28S - 24 x 10G SFP+, 4 x 10GBASE-T
Key Features
- Access Control List
- IP-MAC-Port Binding
- Clientless MAC/Web Access Control
- D-Link Safeguard Engine
- Port Security
- ARP Spoofing Prevention
Description
The DXS-1210-28T/28S 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10
Gigabit switches capable of servicing a range of network needs in any business environment.
The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as
either an aggregation/access switch in large enterprise environments or deployed at the
core of an SMB network. With high performance and low latency, these 10G smart-managed
switches fulfil the needs of virtualisation, cloud services, and server-to-server applications.
The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring,
Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time,
inter-VLAN static routing helps by reducing the pressure of routers and backbone networks,
improving overall network efficiency. The free D-Link Network Assistant utility allows multiple
D-Link devices within the same L2 network to be discovered and managed. These switches also
provide management through the multi-lingual web UI, a full command-line interface (CLI)
through Telnet, a console port, as well as D-View 7 Network Management System.
Specifications
| Management features |
|---|
| Switch layer |
L2/L3 |
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
24 |
| Basic switching RJ-45 Ethernet ports quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
| Console port |
RJ-45 |
| 10G Ethernet (copper) ports quantity |
4 |
| Network |
|---|
| Cable types supported |
Cat6, Cat6a, Cat7 |
| Networking standards |
IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
| Number of VLANs |
4094 |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
Yes |
| IGMP snooping |
Yes |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Data transmission |
|---|
| Jumbo frames |
9000 |
| MAC address table |
32000 entries |
| Switching capacity |
560 Gbit/s |
| Throughput |
416.64 Mpps |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Number of VLANs |
4094 |
| Security |
|---|
| Access Control List (ACL) rules |
256 |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| Protocols |
|---|
| Management protocols |
SNMP v1/v2c/v3 |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Design |
|---|
| Rack mounting |
Yes |
| Stackable |
No |
| Product colour |
Black |
| Form factor |
1U |
| LED indicators |
Activity, Link, Speed |
| Number of fans |
2 fan(s) |
| Certification |
CE Class A
FCC Class A
VCCI Class A
IC
BSMI |
| Power |
|---|
| Power consumption (max) |
85.7 W |
| AC input voltage |
100 - 240 V |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 50 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Virtual LAN features |
|---|
| Number of VLANs |
4094 |
| VLAN support |
Yes |
| Weight & dimensions |
|---|
| Width |
441 mm |
| Depth |
209.5 mm |
| Height |
44 mm |
| Weight |
3.27 kg |
| Packaging content |
|---|
| Manual |
Yes |
| Performance |
|---|
| Stackable |
No |
| Harmonized System (HS) code |
85176990 |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Certificates |
|---|
| Certification |
CE Class A
FCC Class A
VCCI Class A
IC
BSMI |
| Mobile network |
|---|
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Packaging data |
|---|
| Manual |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
