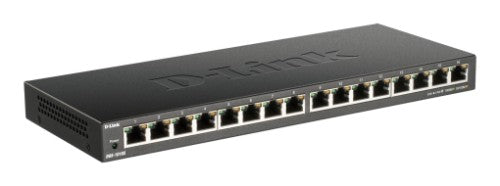

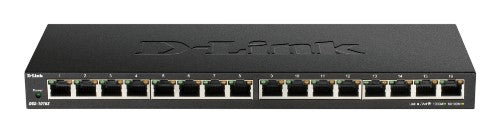

D-Link 16‑Port Gigabit Unmanaged Switch

16‑Port Gigabit Unmanaged Switch

Key Features

• 16 x Gigabit ports
• Slim, low profile design for desktop or wall mount
• Plug & Play simplicity for easy installation
• Silent operation with fanless design

Description

Slim, Low-Profile Design
Allowing the switch to be placed on the desktop or mounted on the wall

High-Speed Gigabit Networking
Connect up to 16 devices for fast file transfers and smooth media streaming

Silent Operation
Fanless design means the switch is virtually silent when in use

Energy Efficient
Integrated energy-saving technology to reduce power usage automatically

Connect More, Connect Faster
The 16-Port Gigabit Unmanaged Switch is ideal for homes and small-to-medium-sized businesses looking for a quick and easy way to upgrade or expand their network. Its slim, low-profile design means it can be placed on the desktop or mounted on the wall. Simple to set up with no software or configuration needed.

Silent and built to last
Metal casing with a fanless design not only means silent operation but also reduces energy usage and enhances reliability.

Visual Cable Diagnostics
LEDs on each port allow you to quickly see when something is wrong with the connection.

Good for your wallet, great for the planet
With its integrated power-saving technologies, the switch automatically reduces power consumption when a low-traffic or idle port is detected. It can also detect when a shorter network cable is connected to use less power on that port.

Specifications

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Copper ethernet cabling technology	1000BASE-T
Network
Cable length detection	Yes
Networking standards	IEEE 802.1p, IEEE 802.3az, IEEE 802.3x
Full duplex	Yes
Copper ethernet cabling technology	1000BASE-T
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Half duplex	Yes
Data transmission
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet forwarding rate (1 Gbps)	1488000 pps
Jumbo frames	9216
MAC address table	8000 entries
Switching capacity	32 Gbit/s
Store-and-forward	Yes
Number of queues	8
Jumbo frames support	Yes
Packet buffer memory	0.512 MB
Design
Product colour	Black
LED indicators	Activity, Link, Power, Speed
Safety	LVD
Certification	CE, FCC, ICES 003, RCM
Performance
Plug and Play	Yes
Mean time between failures (MTBF)	564658 h
Fanless	Yes
Packet buffer memory	0.512 MB
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Power
Power consumption (max)	8.89 W
Input current	1 A
DC input voltage	12 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	30.32 BTU/h
Weight & dimensions
Width	280 mm
Depth	110 mm
Height	25 mm
Weight	770 g
Technical details
Harmonized System (HS) code	85176990
Certificates
Certification	CE, FCC, ICES 003, RCM
Logistics data
Harmonized System (HS) code	85176990
