140 Watt Redundant Power Supply
Description

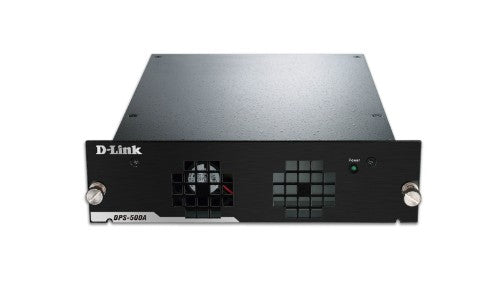

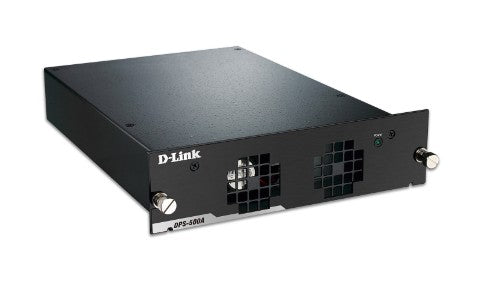

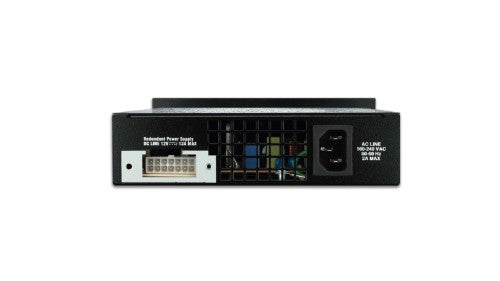

The DPS-500A redundant power supply (RPS) are designed to conform to the wattage requirements of D-Link’s Ethernet and Gigabit switches. It is an external RPS unit enclosed in solid metal cases with sockets to connect to an AC power sources on one end and to connect to a switch’s internal power supply on the other end. It provides a low-cost, simple solution to the problem of an inadvertent failure of the internal power-supply of an Ethernet switch, which can result in the shutdown of that switch, the devices attached to its ports or an entire network. Supporting full output power for the switch, these redundant power supplies can maximise the power availability of the switching device.
Redundant Power BackupEach D-Link RPS is equipped with an integrated detection circuit that continuously monitors the switch’s internal power supply. In the event of a power interruption, the redundant power supply is immediately triggered so that the LAN switch and its connected devices can continue providing service.
This results in a more reliable network infrastructure and protects the network from going down due to failure of a single network device power supply.
Easy and Flexible DeploymentDeployment of a DPS series device does not require any change in the configuration of the LAN switch. Each RPS is equipped with a universal internal power supply and can be connected to any AC power source from 90 V AC to 264 V AC, 47 Hz to 63 Hz through a standard AC power cable.
Modular Redundant Power SuppliesThe DPS-500A is a modular redundant power supply which can be installed as independent power supply units or placed inside a DPS-800 Rack-mount chassis. The chassis are designed for mounting in a standard 19-inch equipment rack. Multiple power supplies can be placed inside a chassis, from which they can connect to the switches mounted in the same rack.
Rack-Mount ChassisThe DPS-800 chassis can accommodate up to two DPS-200A modules to an equipment rack. Using a chassis, users can save space while allowing for clean cabling. All redundant power supply units installed in the chassis connect directly to their power sources, and they are hot-swappable.
Specifications
| Features |
|---|
| Product type |
Power supply |
| Mean time between failures (MTBF) |
400000 h |
| Compatibility |
DGS-3000-28LP
DGS-3000-28X
DGS-3000-28XMP
DGS-3000-52X
DGS-3120-48TC
DGS-3130-30TS/SI
DGS-3130-30S/SI
DGS-3130-54TS/SI
DGS-3130-54S/SI
DGS-3420-28TC
DGS-3420-28SC
DGS-3420-52T
DGS-3620-28TC
DGS-3620-28SC
DGS-3620-52T
DGS-3630-28SC
DGS-3630-28TC
DGS-3630-52TC |
| Product colour |
Black |
| Harmonized System (HS) code |
85177900 |
| Colour |
|---|
| Product colour |
Black |
| Technical details |
|---|
| Mean time between failures (MTBF) |
400000 h |
| Height |
43 mm |
| Compatibility |
DGS-3000-28LP
DGS-3000-28X
DGS-3000-28XMP
DGS-3000-52X
DGS-3120-48TC
DGS-3130-30TS/SI
DGS-3130-30S/SI
DGS-3130-54TS/SI
DGS-3130-54S/SI
DGS-3420-28TC
DGS-3420-28SC
DGS-3420-52T
DGS-3620-28TC
DGS-3620-28SC
DGS-3620-52T
DGS-3630-28SC
DGS-3630-28TC
DGS-3630-52TC |
| Shipping (inner) case width |
45.7 cm |
| Shipping (inner) case net weight |
11 kg |
| Shipping (inner) case length |
46.7 cm |
| Shipping (inner) case height |
28.4 cm |
| Products per shipping (inner) case |
4 pc(s) |
| Products per pallet (sea) |
96 pc(s) |
| Products per pallet (air) |
64 pc(s) |
| Pallet gross width |
110 cm |
| Pallet gross length |
120 cm |
| Pallet height (sea) |
183.9 cm |
| Pallet height (air) |
127.1 cm |
| Pallet gross weight (sea) |
306.5 kg |
| Pallet gross weight (air) |
211 kg |
| Package width |
246 mm |
| Package weight |
2.8 kg |
| Package height |
109 mm |
| Package depth |
436 mm |
| Master (outer) cases per pallet (sea) |
24 pc(s) |
| Master (outer) cases per pallet (air) |
16 pc(s) |
| Shipping (inner) case gross weight |
12 kg |
| Power |
|---|
| AC input voltage |
90 - 264 V |
| AC input frequency |
47 - 63 Hz |
| Total power |
140 W |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-45 - 85 °C |
| Storage relative humidity (H-H) |
10 - 95% |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Performance |
|---|
| Compatibility |
DGS-3000-28LP
DGS-3000-28X
DGS-3000-28XMP
DGS-3000-52X
DGS-3120-48TC
DGS-3130-30TS/SI
DGS-3130-30S/SI
DGS-3130-54TS/SI
DGS-3130-54S/SI
DGS-3420-28TC
DGS-3420-28SC
DGS-3420-52T
DGS-3620-28TC
DGS-3620-28SC
DGS-3620-52T
DGS-3630-28SC
DGS-3630-28TC
DGS-3630-52TC |
| Weight & dimensions |
|---|
| Weight |
1.51 kg |
| Height |
43 mm |
| Width |
172 mm |
| Depth |
257 mm |
| Packaging data |
|---|
| Package width |
246 mm |
| Package weight |
2.8 kg |
| Package height |
109 mm |
| Package depth |
436 mm |
| Logistics data |
|---|
| Shipping (inner) case width |
45.7 cm |
| Shipping (inner) case net weight |
11 kg |
| Shipping (inner) case length |
46.7 cm |
| Shipping (inner) case height |
28.4 cm |
| Products per shipping (inner) case |
4 pc(s) |
| Products per pallet (sea) |
96 pc(s) |
| Products per pallet (air) |
64 pc(s) |
| Pallet gross width |
110 cm |
| Pallet gross length |
120 cm |
| Pallet height (sea) |
183.9 cm |
| Pallet height (air) |
127.1 cm |
| Pallet gross weight (sea) |
306.5 kg |
| Pallet gross weight (air) |
211 kg |
| Master (outer) cases per pallet (sea) |
24 pc(s) |
| Master (outer) cases per pallet (air) |
16 pc(s) |
| Harmonized System (HS) code |
85177900 |
| Shipping (inner) case gross weight |
12 kg |
