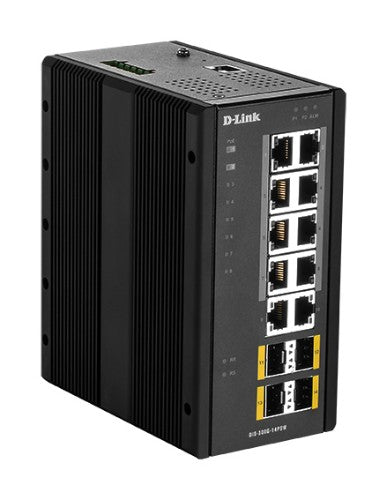

D-Link 14-Port L2 Managed Switch with 10 x 10/100/1000BaseT(X) (8 PoE) & 4 x 100/1000BaseSFP

8x 100/1000BaseT PoE, 2x 100/1000BaseT, 4x 100/1000BaseSFP, 1024 VLANs, QoS, IP30, 71x154x128 mm

Key Features

• 8 x 100/1000BaseT PoE ports, 2 x 100/1000BaseT ports, 4 x 100/1000BaseSFP slots
• 240 W PoE Power Budget
• High availability
• Easy-to-control management interfaces and security
• Withstands extreme temperatures
• Certified for vibration, shock, free-fall, EMC

Description

Managed Customization
Features user management interfaces, including an industrial-like CLI, and WEB-based management, the DIS-300G-14PSW is easy to manage and provides the security and controls to guard and shape your network needs.

Gigabit Connectivity with PoE and SFP slots
Designed with 8 x 100/1000BaseT PoE ports, 2 x 100/1000BaseT ports, 4 x 100/1000BaseSFP slots to suit a range of devices and network layouts.

Officially Certified
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.

Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.

Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.

High Availability
Rapid ring failover recovery time of < 20ms, with even faster PROFINET speeds available at project request.

PoE Support
With its 240W PoE power budget, it’s been designed to supply data and PoE power to compliant devices, which removes the need for unnecessary plugs and cables and reduces deployment time and effort.

Fast Deployment

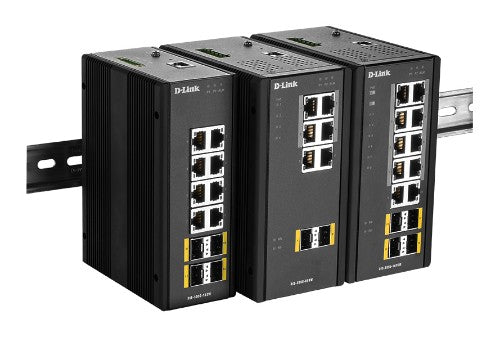

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 77 x 154 x 128 mm.

Specifications

Management features
Traffic shaping	Yes
Switch layer	L2
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	RFC 1757 RMON 1,2,3,9; RFC 2674 Q MIB RFC‑1213 MIB‑II; RFC‑1493 MIB; RFC 2233 IF MIB
Ports & interfaces
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	10
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Fiber optic connector	LC
Network
Networking standards	IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Full duplex	Yes
Number of VLANs	1024
VLAN support	Yes
Spanning tree protocol	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Virtual LAN features	Tagged VLAN, Protocol-based VLAN, Interface-based VLAN, Port-based VLAN, IP subnet–based VLAN
Data transmission
Jumbo frames	9000
MAC address table	8000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Number of VLANs	1024
Security
Security algorithms	HTTPS, SNMP, SNMPv3, SSH
Authentication type	IEEE 802.1x, RADIUS
Queue scheduling algorithms	Weighted Round Robin (WRR)
DHCP features	DHCP server, DHCP snooping, DHCP relay, DHCP client
Multicast features
Multicast support	Yes
Design
DIN rail mounting	Yes
Wall mountable	Yes
International Protection (IP) code	IP30
Rack mounting	No
Product colour	Black
LED indicators	Alarm, LAN, PoE, Status
Electromagnetic compatibility	FCC 15, EN 61000‑6‑2, EN 61000‑6‑4, EN 61000‑4‑2, ‑3, ‑4, ‑5, ‑6
Certification	IEC60068‑2‑6, IEC60068‑2‑27, IEC60068‑2‑32, UL 60950‑1, CE, FCC, RoHS, WEEE
Performance
Firmware upgradeable	Yes
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Power
Power consumption (typical)	14 W
DC input voltage	48 - 58 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) voltage range	54 - 58 V
Power over Ethernet (PoE) power per port	60 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	240 W
Operational conditions
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Virtual LAN features
Number of VLANs	1024
VLAN support	Yes
Virtual LAN features	Tagged VLAN, Protocol-based VLAN, Interface-based VLAN, Port-based VLAN, IP subnet–based VLAN
Weight & dimensions
Width	71 mm
Depth	154 mm
Height	128 mm
Weight	1.41 kg
Packaging data
Package width	195 mm
Package depth	242 mm
Package height	138 mm
Package weight	1.86 kg
Optical fiber
Fiber optic connector	LC
Technical details
Harmonized System (HS) code	85176990
Shipping (inner) case width	40.5 cm
Shipping (inner) case net weight	18.6 kg
Shipping (inner) case length	69.5 cm
Shipping (inner) case height	27 cm
Products per shipping (inner) case	10 pc(s)
Products per pallet (sea)	280 pc(s)
Products per pallet (air)	200 pc(s)
Pallet gross width	110 cm
Pallet gross length	120 cm
Pallet height (sea)	2.02 m
Pallet height (air)	148.5 cm
Pallet gross weight (sea)	575 kg
Pallet gross weight (air)	415.6 kg
Master (outer) cases per pallet (sea)	28 pc(s)
Master (outer) cases per pallet (air)	20 pc(s)
Shipping (inner) case gross weight	19.9 kg
Certificates
Certification	IEC60068‑2‑6, IEC60068‑2‑27, IEC60068‑2‑32, UL 60950‑1, CE, FCC, RoHS, WEEE
Logistics data
Harmonized System (HS) code	85176990
