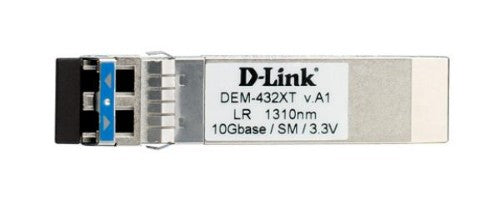

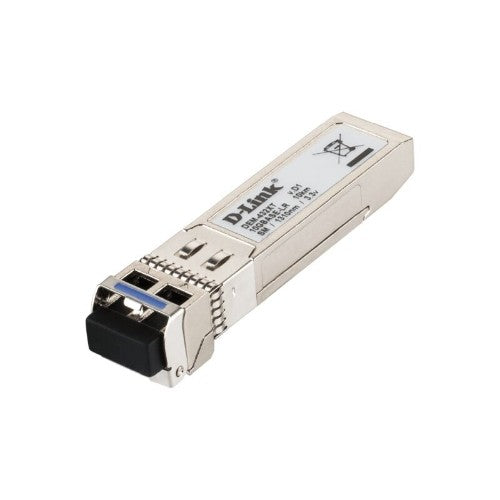

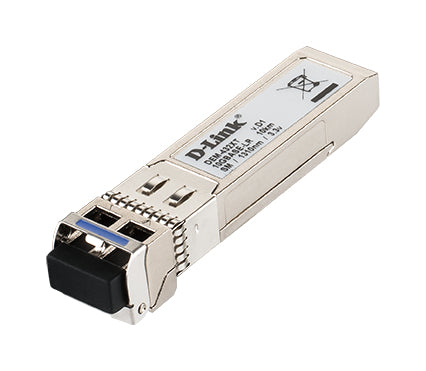

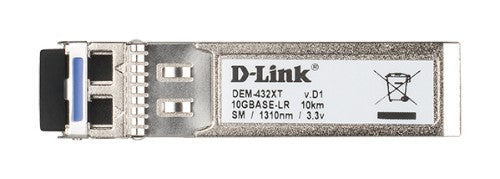

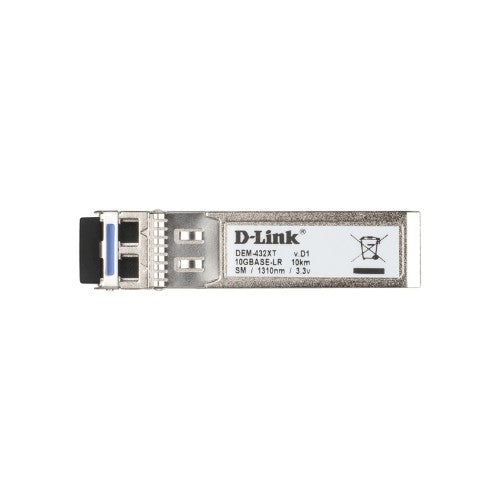

10GBase-LR SFP+ Transceiver (10 Km)
Key Features
- Cost-effective solution for 10G fiber connection
- Small form factor, allowing higher port densities for 10G connections
- Lower power dissipation
- Hot-pluggable
- Compliant with Ethernet 802.3ae
- Compliant with fiber MSA (Multiple Source Agreement)
Description
D-Link’s 10G SFP+ Module series are hot-swappable SFP+ transceivers that plug into SFP+ slots on switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.
Enhanced Small Form-factor Pluggable FormatThe transceivers use the Enhanced Small Formfactor Pluggable format (SFP+). The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa, for the port to receive data from the network cable.
Hot PluggableAll D-Link transceivers are hot-pluggable. You can connect a transceiver while the system is powered on without causing any problems. This permits modules to be added or removed without interrupting the network.
10G Ethernet speedsThe transceivers all support 10G Ethernet, which results in very fast data transmissions of up to 10 Gbit/s. This is 10 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.
Specifications
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Link budget |
10.1 dB |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10000 Mbit/s |
| Fiber optic connector |
LC |
| Networking standards |
IEEE 802.3ae |
| Maximum transfer distance |
10000 m |
| Wavelength |
1310 nm |
| Fiber cable diameters supported (core/cladding) |
9/125 µm |
| Tx power (min) |
-8.5 dBmW |
| Tx power (max) |
0.5 dBmW |
| Rx power (min) |
-12.6 dBmW |
| Rx power (max) |
0.5 dBmW |
| Duplex system |
Full |
| Single-mode fiber (SMF) supported |
Yes |
| Multi-mode fiber (MMF) supported |
No |
| SFP transceiver standard |
LR |
| Fiber ethernet cabling technology |
10GBASE |
| Product colour |
Gold, Metallic |
| Hot-Plug support |
Yes |
| Mean time between failures (MTBF) |
4650000 h |
| Harmonized System (HS) code |
85369010 |
| Features |
|---|
| Product colour |
Gold, Metallic |
| Hot-Plug support |
Yes |
| Mean time between failures (MTBF) |
4650000 h |
| Certification |
CE, FCC, VCCI, MSA |
| Safety |
UL, TUV, CDRH |
| Power |
|---|
| Maximum voltage |
3.3 V |
| Maximum current |
300 A |
| Certificates |
|---|
| Certification |
CE, FCC, VCCI, MSA |
| Safety |
UL, TUV, CDRH |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 85% |
| Storage relative humidity (H-H) |
5 - 95% |
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10000 Mbit/s |
| Fiber optic connector |
LC |
| Networking standards |
IEEE 802.3ae |
| Weight & dimensions |
|---|
| Width |
14.8 mm |
| Depth |
11.8 mm |
| Height |
56.5 mm |
| Weight |
19.5 g |
| Package width |
74 mm |
| Package depth |
131 mm |
| Package height |
49 mm |
| Package weight |
64 g |
| Packaging data |
|---|
| Package width |
74 mm |
| Package depth |
131 mm |
| Package height |
49 mm |
| Package weight |
64 g |
| Technical details |
|---|
| Harmonized System (HS) code |
85369010 |
| Shipping (inner) case width |
26 cm |
| Shipping (inner) case net weight |
3.2 kg |
| Shipping (inner) case length |
36 cm |
| Shipping (inner) case height |
31 cm |
| Products per shipping (inner) case |
50 pc(s) |
| Products per pallet (sea) |
3000 pc(s) |
| Products per pallet (air) |
3000 pc(s) |
| Pallet gross width |
122 cm |
| Pallet gross length |
102 cm |
| Pallet height (sea) |
199 cm |
| Pallet height (air) |
199 cm |
| Pallet gross weight (sea) |
272 kg |
| Pallet gross weight (air) |
272 kg |
| Master (outer) cases per pallet (sea) |
60 pc(s) |
| Master (outer) cases per pallet (air) |
60 pc(s) |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85369010 |
| Shipping (inner) case width |
26 cm |
| Shipping (inner) case net weight |
3.2 kg |
| Shipping (inner) case length |
36 cm |
| Shipping (inner) case height |
31 cm |
| Products per shipping (inner) case |
50 pc(s) |
| Products per pallet (sea) |
3000 pc(s) |
| Products per pallet (air) |
3000 pc(s) |
| Pallet gross width |
122 cm |
| Pallet gross length |
102 cm |
| Pallet height (sea) |
199 cm |
| Pallet height (air) |
199 cm |
| Pallet gross weight (sea) |
272 kg |
| Pallet gross weight (air) |
272 kg |
| Master (outer) cases per pallet (sea) |
60 pc(s) |
| Master (outer) cases per pallet (air) |
60 pc(s) |
| Shipping (inner) case gross weight |
4.2 kg |
