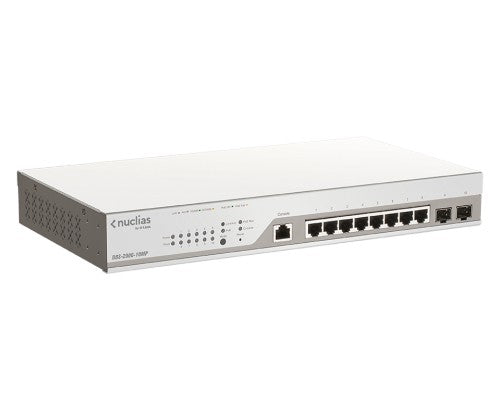

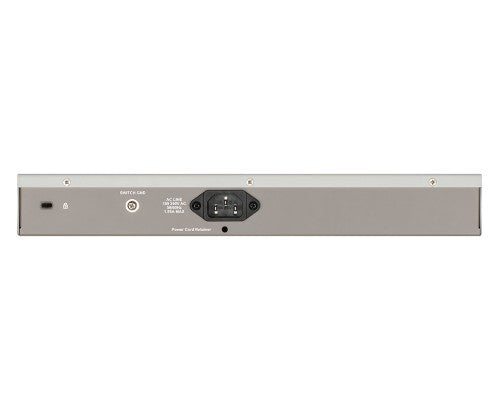

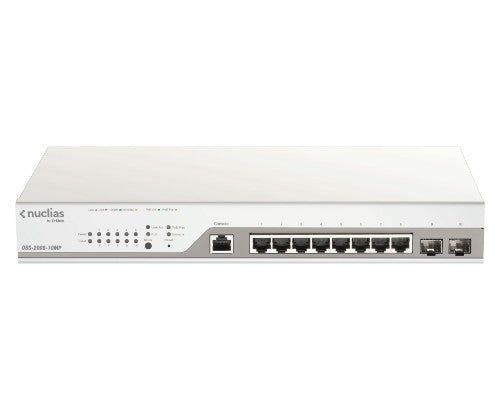

DBS-2000-10MP, 20 Gbps, 14.88 Mpps, 8x 1G PoE RJ-45, 2x 1G SFP, 500MHz, 256MB DDR3, 330x180x44 mm
Key Features
- 8 x 10/100/1000BASE-T PoE ports
- 2 x 10/100/1000BASE-T SFP Combo ports
- 130W PoE power budget
- Supports IEEE 802.3at PoE
- Zero-Touch Deployment
- Cloud Management w/99.9% SLA
- WPA/WPA2/WPA3 encryption
- Innovative D-Link Green Energy-saving features
- Intuitive Web Portal for comprehensive switch management
- Multilingual Support
Description
Cloud Networking, Refreshed
The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.
Management Over the Cloud
DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.
Easy Troubleshooting
The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.
Advanced Security Features
The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.
Full PoE Support
Select models in the DBS-2000 Series support Power over Ethernet (PoE) for copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras in remote locations with no immediate access to a power outlet.
Specifications
| Management features |
|---|
| Switch layer |
L2 |
| Switch type |
Managed |
| Web-based management |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Combo SFP ports quantity |
2 |
| Console port |
RJ-45 |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Network |
|---|
| Networking standards |
IEEE 802.3ad, IEEE 802.3at |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Spanning tree protocol |
Yes |
| Link aggregation |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| IGMP snooping |
Yes |
| Data transmission |
|---|
| Switching capacity |
20 Gbit/s |
| Packet buffer memory |
4.1 MB |
| Forwarding rate |
14.88 Mpps |
| Security |
|---|
| Security algorithms |
WPA3, WPA, WPA2 |
| IGMP snooping |
Yes |
| Design |
|---|
| Rack mounting |
Yes |
| Product colour |
Grey |
| LED indicators |
Yes |
| Number of fans |
0 fan(s) |
| Performance |
|---|
| Processor frequency |
500 MHz |
| Memory type |
DDR3-SDRAM |
| Internal memory |
256 MB |
| Flash memory |
32 MB |
| Mean time between failures (MTBF) |
1274005 h |
| Built-in processor |
Yes |
| Packet buffer memory |
4.1 MB |
| Harmonized System (HS) code |
85176990 |
| Power |
|---|
| Power consumption (max) |
152.3 W |
| AC input voltage |
100 - 240 V |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Total Power over Ethernet (PoE) budget |
130 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 50 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 1500 m |
| Heat dissipation |
519.51 BTU/h |
| Weight & dimensions |
|---|
| Width |
330 mm |
| Depth |
180 mm |
| Height |
44 mm |
| Weight |
1.77 kg |
| Packaging data |
|---|
| Package width |
319 mm |
| Package depth |
400 mm |
| Package height |
91 mm |
| Package weight |
3.39 kg |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Shipping (inner) case width |
29.4 cm |
| Shipping (inner) case net weight |
10.2 kg |
| Shipping (inner) case length |
41.6 cm |
| Shipping (inner) case height |
34.9 cm |
| Products per shipping (inner) case |
3 pc(s) |
| Products per pallet (sea) |
120 pc(s) |
| Products per pallet (air) |
72 pc(s) |
| Pallet gross width |
120 cm |
| Pallet gross length |
110 cm |
| Pallet height (sea) |
188 cm |
| Pallet height (air) |
118.2 cm |
| Pallet gross weight (sea) |
458.4 kg |
| Pallet gross weight (air) |
282.5 kg |
| Master (outer) cases per pallet (sea) |
40 pc(s) |
| Master (outer) cases per pallet (air) |
24 pc(s) |
| Shipping (inner) case gross weight |
11 kg |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
