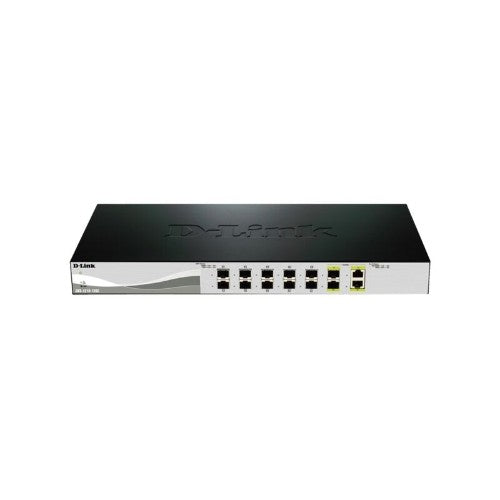

10 x 10G SFP+, 2 x 1G/10GBASE-T / SFP+ combo, 178.56 Mpps, 32K MAC, 440 x 210 x 44 mm
Description
10 Gigabit Ethernet Smart Managed SwitchesThe D-Link DXS-1210 Series conveniently offers a range of 10-Gigabit copper and fiber port combinations to cost-effectively alleviate network congestion. Select models are equipped with SFP+ or SFP28 ports for 10G/25G expandable network designed for scalability and can auto-detect surveillance and voice data to ensure uninterrupted video footage and jitter-free VoIP calls.
Alleviate Network Congestion
Add 10‑Gigabit Ethernet connectivity with these affordable high-performance switches. Designed for deployment in small to medium-sized business (SMB) core networks and powerful enough for enterprise aggregation applications.
Convenient Layer 2 & Layer 3 Lite Configurability
The DXS-1210 Series can be deployed as a Layer 2 aggregation switch with features such as port mirroring, STP, and LACP. When implemented as a Layer 3 Lite core switch, IP interfaces, ARP, IPv6 ND, Default Routing, and Static Routing can be applied for efficient routing applications.
An Added Line of Defense Against Attacks
The DXS-1210 Series defends your network with D-Link’s innovative Safeguard Engine™ to neutralize threats such as malicious network flooding attacks, ARP spoofing, and bogus DHCP IP addressing. The DXS-1210 Series supports 802.1X port-based and host-based authentication, allowing the network to be authenticated through external RADIUS servers.
Unhindered Surveillance & VoIP with a Simple Click
If you need surveillance or VoIP, there is no need to build a dedicated network. With the DXS-1210 Series, expediting latency-intolerant services such as surveillance and VoIP through the existing network can’t be any easier. Simply enable the Auto Surveillance VLAN & Auto Voice VLAN features. Your surveillance videos will always run smoothly and your VoIP calls will be crystal-clear from beginning to end, even during peak working hours.
Better for Your Budget, Better for the Planet
When low-traffic or idle interface ports are detected, the DXS-1210 Series automatically transitions them into a low-power state, substantially reducing overall device power consumption. Furthermore, the DXS-1210 Series can determine the approximate length of cables attached to each port to apply just enough power for data transmission on that link, saving even more power while lowering total cost of ownership (TCO).
Specifications
| Management features |
|---|
| ARP inspection |
Yes |
| Switch layer |
L2/L3 |
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| MIB support |
Yes |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
10 |
| Combo SFP ports quantity |
2 |
| Console port |
RJ-45 |
| Fiber optic connector |
SFP+ |
| Network |
|---|
| Cable types supported |
Cat6a, Cat7 |
| Networking standards |
IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3z, IEEE 802.3az |
| Number of VLANs |
4094 |
| Head-of-line (HOL) blocking |
Yes |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Ethernet LAN data rates |
1000,5000,100,2500,10000 Mbit/s |
| Broadcast storm control |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
Yes |
| IGMP snooping |
Yes |
| Data transmission |
|---|
| Jumbo frames |
10000 |
| MAC address table |
32000 entries |
| Switching capacity |
240 Gbit/s |
| Store-and-forward |
Yes |
| Number of queues |
8 |
| Jumbo frames support |
Yes |
| Forwarding rate |
178.56 Mpps |
| Number of VLANs |
4094 |
| Security |
|---|
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| Password protection |
Yes |
| DHCP features |
DHCP client, DHCP server |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| Rack mounting |
Yes |
| Stackable |
Yes |
| Product colour |
Black, Silver |
| Form factor |
1U |
| LED indicators |
Yes |
| Number of fans |
2 fan(s) |
| Certification |
CE, FCC, RCM, VCCI, IC, BSMI, cUL, BSMI, CB |
| Performance |
|---|
| Noise level |
46.3 dB |
| Stackable |
Yes |
| Power |
|---|
| Power consumption (max) |
27.4 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Virtual LAN features |
|---|
| Number of VLANs |
4094 |
| VLAN support |
Yes |
| Weight & dimensions |
|---|
| Width |
440 mm |
| Depth |
210 mm |
| Height |
44 mm |
| Weight |
2.72 kg |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Optical fiber |
|---|
| Fiber optic connector |
SFP+ |
| Certificates |
|---|
| Certification |
CE, FCC, RCM, VCCI, IC, BSMI, cUL, BSMI, CB |
| Packaging data |
|---|
| Quick start guide |
Yes |
| Other features |
|---|
| Ethernet LAN data rates |
1000,5000,100,2500,10000 Mbit/s |
