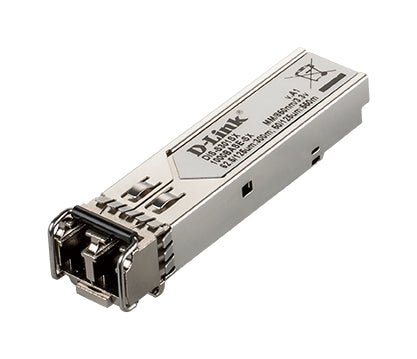

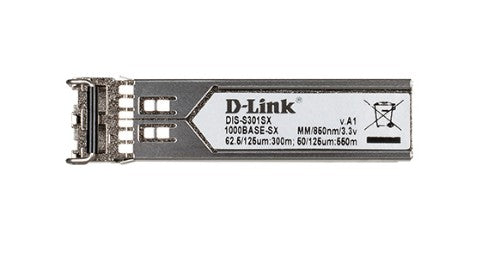

D-Link 1-port Mini-GBIC SFP to 1000BaseSX Industrial Transceiver

Mini‑GBIC SFP - 1000BaseSX, MMF, 550 m

Key Features

• 1-port Mini-GBIC SFP to 1000BaseSX Multi-Mode Fibre Transceiver
• up to 550 m
• 40 ~ 85°C operating temperature

Description

D-Link’s Industrial SFP Optical Transceivers are hot-swappable SFP transceivers that are specifcally designed for D-Link Industrial Ethernet switches. The transceivers o?er customers a wide variety of connection distance for factory automation, smart and connected city applications.
All the transceivers are standard-based and hot swappable. You can remove or replace the transceiver with the system powered. This allows transceivers to be added or swapped without downtime or interrupting the network.
Contrast to commercial optical transceivers with operating temperature 0~70°C, these Industrial SFP Optical Transceivers have a wider operating temperature range of -40~85°C. This allows

Specifications

Performance
SFP transceiver type	Fiber optic
Interface type	mini-GBIC
Maximum data transfer rate	1000 Mbit/s
Fiber optic connector	SFP
Maximum transfer distance	550 m
Multi-mode fiber (MMF) supported	Yes
SFP transceiver standard	SX
Product colour	Silver
Harmonized System (HS) code	85369010
Features
Product colour	Silver
Operational conditions
Operating temperature (T-T)	-40 - 85 °C
Network
SFP transceiver type	Fiber optic
Interface type	mini-GBIC
Maximum data transfer rate	1000 Mbit/s
Fiber optic connector	SFP
Weight & dimensions
Weight	20 g
Package width	74 mm
Package depth	131 mm
Package height	49 mm
Package weight	64 g
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	74 mm
Package depth	131 mm
Package height	49 mm
Package weight	64 g
Technical details
Harmonized System (HS) code	85369010
Shipping (inner) case width	26 cm
Shipping (inner) case net weight	3.2 kg
Shipping (inner) case length	36 cm
Shipping (inner) case height	31 cm
Products per shipping (inner) case	50 pc(s)
Products per pallet (sea)	2700 pc(s)
Products per pallet (air)	2700 pc(s)
Pallet gross width	122 cm
Pallet gross length	102 cm
Pallet height (sea)	199 cm
Pallet height (air)	199 cm
Pallet gross weight (sea)	246.8 kg
Pallet gross weight (air)	246.8 kg
Master (outer) cases per pallet (sea)	54 pc(s)
Master (outer) cases per pallet (air)	54 pc(s)
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85369010
Shipping (inner) case width	26 cm
Shipping (inner) case net weight	3.2 kg
Shipping (inner) case length	36 cm
Shipping (inner) case height	31 cm
Products per shipping (inner) case	50 pc(s)
Products per pallet (sea)	2700 pc(s)
Products per pallet (air)	2700 pc(s)
Pallet gross width	122 cm
Pallet gross length	102 cm
Pallet height (sea)	199 cm
Pallet height (air)	199 cm
Pallet gross weight (sea)	246.8 kg
Pallet gross weight (air)	246.8 kg
Master (outer) cases per pallet (sea)	54 pc(s)
Master (outer) cases per pallet (air)	54 pc(s)
Shipping (inner) case gross weight	4.2 kg
