SFP, 1.25 Gbps, 10 km, Duplex LC connector
Key Features
- 1000Base-LX port (IEEE 802.3z standard)
- Duplex LC connector
- Full duplex operation
- 802.3x flow control support
- Fibre type: 9um single-mode fibre, up to 10 km
- Wavelenght: 1310 nm
- Power support: 3.3 V
- Power budget: 10.5 dB
- Hot pluggable
- Class 1 laser product (complies with EN60825-1)
- TTL signal detect indicator
- Metal enclosure for lower EMI
Description

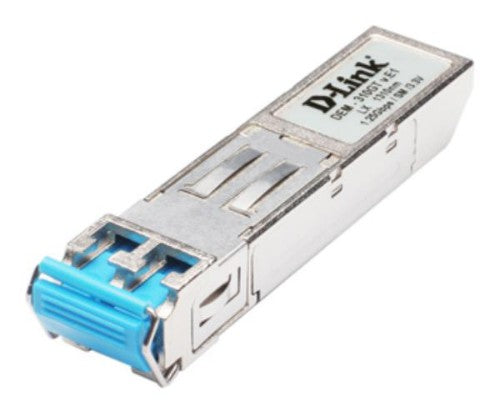

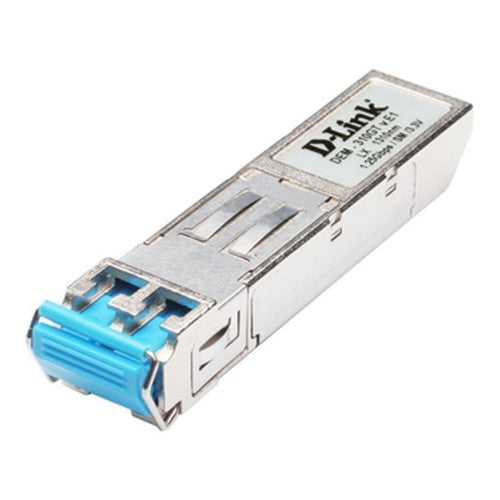

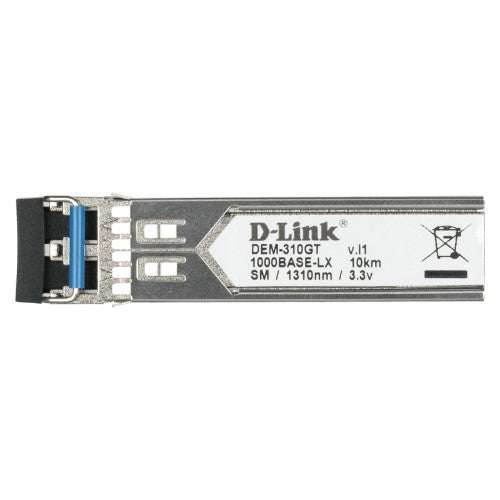

The DEM-310GT is a high performance 1310nm single mode SFP (mini-GBIC) transceiver. Supporting full duplex, Gigabit speeds on single mode fiber for distances of up to 10km on 9µm respectively. The unit features a metal housing to reduce EMI and to increase durability. The DEM-310GT is hot pluggable and is backed by a standard 2-year product warranty and free technical support.
Specifications
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Interface type |
SFP |
| Maximum data transfer rate |
1250 Mbit/s |
| Fiber optic connector |
LC |
| Networking standards |
IEEE 802.3z |
| Maximum transfer distance |
10000 m |
| Wavelength |
1310 nm |
| Duplex system |
Full |
| Cabling technology |
1000Base-LX |
| Single-mode fiber (SMF) supported |
Yes |
| Multi-mode fiber (MMF) supported |
No |
| Ethernet interface type |
Gigabit Ethernet |
| SFP transceiver standard |
LX |
| Product colour |
Metallic |
| Hot-Plug support |
Yes |
| Hot-swap |
Yes |
| Harmonized System (HS) code |
85177900 |
| Features |
|---|
| Product colour |
Metallic |
| Hot-Plug support |
Yes |
| Hot-swap |
Yes |
| Certification |
MSA, RoHS |
| Power |
|---|
| Maximum voltage |
3.3 V |
| Certificates |
|---|
| Certification |
MSA, RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Interface type |
SFP |
| Maximum data transfer rate |
1250 Mbit/s |
| Fiber optic connector |
LC |
| Networking standards |
IEEE 802.3z |
| Cabling technology |
1000Base-LX |
| Ethernet interface type |
Gigabit Ethernet |
| Packaging data |
|---|
| Package width |
74 mm |
| Package depth |
131 mm |
| Package height |
49 mm |
| Package weight |
64 g |
| Technical details |
|---|
| Harmonized System (HS) code |
85177900 |
| Shipping (inner) case width |
26 cm |
| Shipping (inner) case net weight |
3.2 kg |
| Shipping (inner) case length |
36 cm |
| Shipping (inner) case height |
31 cm |
| Products per shipping (inner) case |
50 pc(s) |
| Products per pallet (sea) |
2700 pc(s) |
| Products per pallet (air) |
2700 pc(s) |
| Pallet gross width |
122 cm |
| Pallet gross length |
102 cm |
| Pallet height (sea) |
199 cm |
| Pallet height (air) |
199 cm |
| Pallet gross weight (sea) |
246.8 kg |
| Pallet gross weight (air) |
246.8 kg |
| Master (outer) cases per pallet (sea) |
54 pc(s) |
| Master (outer) cases per pallet (air) |
54 pc(s) |
| Weight & dimensions |
|---|
| Package width |
74 mm |
| Package depth |
131 mm |
| Package height |
49 mm |
| Package weight |
64 g |
| Other features |
|---|
| Dimensions (WxDxH) |
29.8 x 11.8 x 56.3 mm |
| I/O ports |
mini-GBIC |
| Logistics data |
|---|
| Harmonized System (HS) code |
85177900 |
| Shipping (inner) case width |
26 cm |
| Shipping (inner) case net weight |
3.2 kg |
| Shipping (inner) case length |
36 cm |
| Shipping (inner) case height |
31 cm |
| Products per shipping (inner) case |
50 pc(s) |
| Products per pallet (sea) |
2700 pc(s) |
| Products per pallet (air) |
2700 pc(s) |
| Pallet gross width |
122 cm |
| Pallet gross length |
102 cm |
| Pallet height (sea) |
199 cm |
| Pallet height (air) |
199 cm |
| Pallet gross weight (sea) |
246.8 kg |
| Pallet gross weight (air) |
246.8 kg |
| Master (outer) cases per pallet (sea) |
54 pc(s) |
| Master (outer) cases per pallet (air) |
54 pc(s) |
| Shipping (inner) case gross weight |
4.2 kg |
