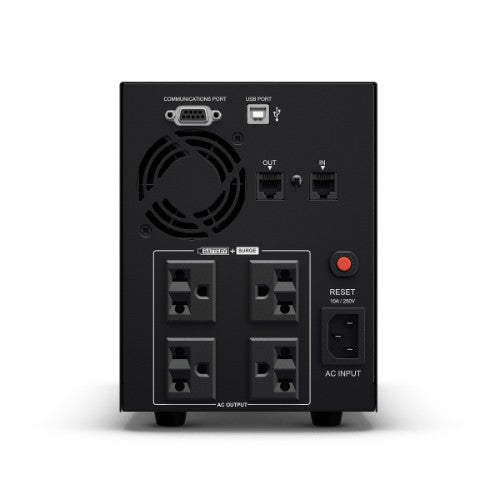

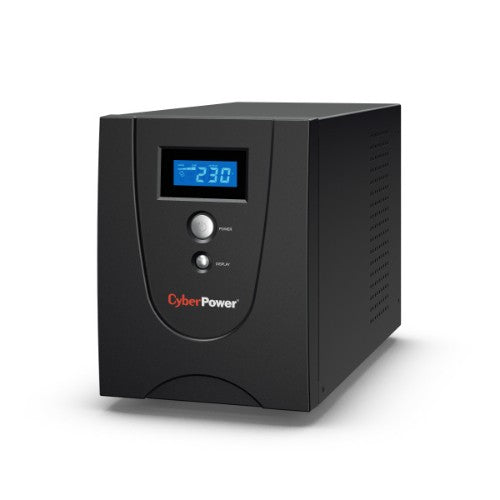

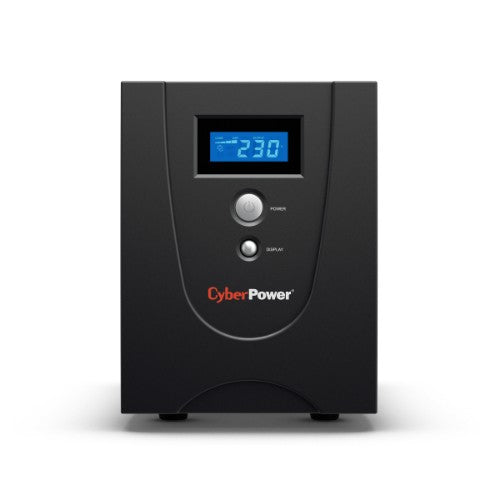

CyberPower VALUE2200ELCD Value GP LCD 2200VA / 1320W Line Interactive Ups (Avail: In Stock )
Key Features
- Line-interactive UPS Topology
- Simulated Sine Wave Output
- Surge and Spike Protection
- LCD Status Display
- Tower Form Factor
- Energy Saving Technology
- Automatic Voltage Regulation (AVR)
- Phone/Fax/Modem/DSL/Network Protection
- PowerPanel Management Software
Description
GENERAL
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPSâ„¢ Bypass Technology
INPUT
Nominal Input Voltage (Vac): 230 ± 10%
Input Voltage Range (Vac): 170 ~ 290
Input Frequency (Hz): 50 ± 5 60 ± 5
Input Frequency Detection: Auto-sensing
Rated Input Current (A): 10
Input Connector Type: IEC C14
Detachable Power Cord Plug Type: AU
Power Cord Length (ft.): 6
Power Cord Length (m.): 1.8
OUTPUT
Capacity (VA): 2200
Capacity (Watts): 1320
On Battery Waveform: Simulated Sine Wave
On Battery Voltage(s) (Vac): 230 ± 10%
On Battery Frequency (Hz): 50 ± 1% 60 ± 1%
Automatic Voltage Regulation (AVR): Single Boost, Single Buck
Overload Protection: Circuit Breaker
Outlet(s) – Total: 4
Outlet Type: AUx4
Outlet(s) - Battery & Surge Protected: 4
Typical Transfer Time (ms): 4
BATTERY
Runtime at Half Load (min): 7
Runtime at Full Load (min): 1
Typical Recharge Time (Hours): 8
Start On Battery: Yes
User-replaceable: Yes
Battery Type: Sealed Lead-acid
Replacement Battery Pa
Specifications
| Power |
|---|
| Output power capacity |
2.2 kVA |
| Output power |
1320 W |
| Output voltage Total Harmonic Distortion (THD) |
7% |
| Input frequency |
47/63 Hz |
| Performance |
|---|
| UPS topology |
Line-Interactive |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Surge protection features |
Fax, Modem, Network, Telephone |
| Waveform |
Sine |
| Power protection features |
Overload |
| Auto-restart |
Yes |
| Automatic Voltage Regulation (AVR) |
Yes |
| Noise level |
50 dB |
| LED indicators |
Yes |
| Audible alarm(s) |
Yes |
| Features |
|---|
| UPS topology |
Line-Interactive |
| Output power capacity |
2.2 kVA |
| Output power |
1320 W |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Surge protection features |
Fax, Modem, Network, Telephone |
| Waveform |
Sine |
| Power protection features |
Overload |
| Output voltage Total Harmonic Distortion (THD) |
7% |
| Auto-restart |
Yes |
| Automatic Voltage Regulation (AVR) |
Yes |
| Noise level |
50 dB |
| Audible alarm(s) |
Yes |
| Input frequency |
47/63 Hz |
| Heat dissipation |
225 BTU/h |
| Ports & interfaces |
|---|
| AC outlets quantity |
6 AC outlet(s) |
| AC outlet types |
IEC 60320 |
| Power plug |
C14 coupler |
| USB 2.0 ports quantity |
1 |
| Serial ports quantity |
1 |
| Modem (RJ-11) ports |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| Battery |
|---|
| Battery technology |
Lithium Polymer (LiPo) |
| Number of batteries supported |
2 |
| Battery recharge time |
8 h |
| Typical backup time at half load |
8 min |
| Typical backup time at full load |
2 min |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Design |
|---|
| Form factor |
Tower |
| Product colour |
Black |
| LED indicators |
Yes |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
0 - 90 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Technical details |
|---|
| Compliance certificates |
RoHS, CE |
| Certificates |
|---|
| Compliance certificates |
RoHS, CE |
| Weight & dimensions |
|---|
| Width |
140 mm |
| Depth |
180 mm |
| Height |
326 mm |
| Weight |
14.5 kg |
| Package width |
203 mm |
| Package depth |
428 mm |
| Package height |
264 mm |
| Package weight |
15.4 kg |
| Packaging data |
|---|
| Bundled software |
PowerPanel |
| Package width |
203 mm |
| Package depth |
428 mm |
| Package height |
264 mm |
| Package weight |
15.4 kg |
| Other features |
|---|
| Nominal output voltage |
230 V |
| Packaging content |
|---|
| Bundled software |
PowerPanel |
